Gas (HCHO, CO2, CO, Combustible Gas) Detector

Shanghai Total Industrial Co., Ltd.

Transport Package：Carton
Trademark：ShowRange
Origin：Shanghai

Base Info

Model NO.：SR8701, SR8702, SR8700A, SR8705
HS Code：90258000
Production Capacity：5000PCS,Month

Description

SR8701 Formaldehyde Monitor

Gas Tested	HCHO In The Air
Measuring Range	0-3mg/m 3
Resolution	0.01mg/m 3
Minimum Reading	0.01mg/m 3
Basic Error	+/-0.03+/-5%
Response Time	< 30 Seconds
Sensor Type	Electrochemical HCHO Sensor
Rechargeable Battery	√
Buzzer Alarm Setup	√
MAXAVGData Hold	√
Low Battery Indication	√
LCD Backlight	√
Operating Environment	0~50ºC,32~122°F;10~90%RH
Storage Environment	-10~80ºC,-14~176°F;10~75%RH
Power	3x3.6V NIMH Batteries
Size	91.564.8135mm
Weight	152g

SR8702 Carbon Dioxide Meter

Gas Tested	CO2 In The Air
Measuring Range	0~2000ppm
Resolution	1ppm
Minimum Reading	1ppm
Basic Error	+/-(50ppm +3% Of Measured Value)
Response Time	< 30 Seconds
Sensor Type	NDIR CO ₂ Gas Sensor
Rechargeable Battery	√
Buzzer Alarm Setup	√
MAXAVGData Hold	√
Low Battery Indication	√
LCD Backlight	√
Operating Environment	0~50ºC,32~122°F;10~90%RH
Storage Environment	-10~80ºC,-14~176°F;10~75%RH
Power	Battery Excluded
Size	91.564.8135mm
Weight	156.5g

SR8705 Carbon Monoxide Meter

Gas Tested	CO In The Air
Measuring Range	0-1000ppm
Resolution	1ppm
Minimum Reading	1ppm
Basic Error	+/-5%(f.s),+/-10ppm
Response Time	60 Seconds
Sensor Type	Electrochemical CO Sensor
Buzzer Alarm Setup	√
Review Of Max And Min Reading	√
Setting Up Range Of Co Content	√
MAXAVGData Hold	√
Auto Power Off	√
Low Battery Indication	√
LCD Backlight	√
Operating Environment	0~50°C; 32-122°F; 10-90%RH
Storage Environment	-10~80°C; -14~176°F; 10-75%RH
Power	2x1.5V AAA Batteries
Measurements	55.729.9135.5mm
Weight	104g

Pre：Spectrum Analyzer
Next：Auto Sampler

Category

Chromatography Spectroscopy Instrument

Concentration Meter

Element Analyzer

Laser Particle Size Analyzer

Liquid Analyzer

Other Analysis Instruments

Sample Processor

Recommended

Spectrum Analyzer
SpecificationSRS3030DSpectrum MeasurementRange9kHz - 3GHzResolution1HzAccuracy±(Frequency Marker Readout*Frequency ReferenceAccuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1) ]+1Hz)Internal Reference(10MHz)Aging Rate < 1ppm/year; Stability Over Temperature < 0.5ppm(15C ~ 35C)Resoluti
Laser Diffraction Particle Size Analyzers (BT-2003) $Laser Diffraction Particle Size Analyzers (BT-2003)$
Size Range: 0.04-1000 umSample Inflow Method: External automatic circulating and dispersing systemRepeatability: < ± 3% (CRM D50)Accuracy: < ± 3% (CRM D50)Measuring Principle: Mie scattering theoryLaser: Import optical fiber semiconductor laserOperation System: Win XP/ Win 7Conn

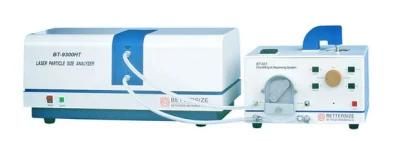

Laser Diffraction Particle Size Analyzers (BT-9300HT) $Laser Diffraction Particle Size Analyzers (BT-9300HT)$
Size Range: 0.1-716 umSample Inflow Method: External peristaltic circulating and dispersing systemRepeatability: Less than 1% (CRM D50)Accuracy: Less than 1% (CRM D50)Measuring Principle: Mie scattering theoryLaser: Import optical fiber semiconductor laserOperation System: Win XP/ Win 7Connection

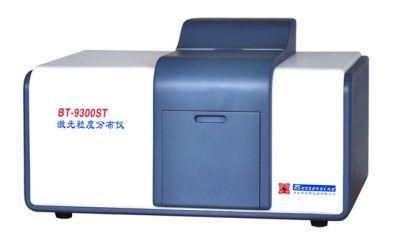

Laser Diffraction Particle Size Analyzers (BT-9300ST) $Laser Diffraction Particle Size Analyzers (BT-9300ST)$
Size Range: 0.1-1000 umSample Inflow Method: Built-in automatic circulating and dispersing systemRepeatability: Less than 1% (CRM D50)Accuracy: Less than 1% (CRM D50)Measuring Principle: Mie scattering theoryLaser: Import optical fiber semiconductor laserOperation System: Win XP/ Win 7Connection Po
Laser Diffraction Particle Size Analyzers (Bettersize2000LD) $Laser Diffraction Particle Size Analyzers (Bettersize2000LD)$
Size Range :0.02-2000 um(wet mode); 0.1-2000 um(dry mode)Sample Inflow Method:Circulating pump(wet mode); Turbulent flow(dry mode)Built-in automatic circulating and dispersing systemRepeatability (wet mode):Less than 1% (CRM D50)Accuracy (wet mode):Less than 1% (CRM D50)Repeatability (dry mode):Less

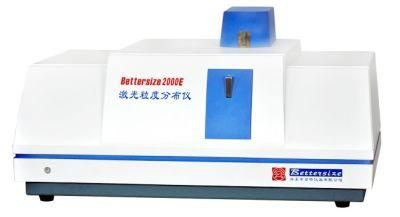

Laser Diffraction Particle Size Analyzer (Bettersize 2000E) $Laser Diffraction Particle Size Analyzer (Bettersize 2000E)$
