• Model NO.：T6512
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Non Portable
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter
• Measuring range：0~99999mg,L
• Resolution：0.01mg,L
• Error range：+,-2.5%
• Signal output：RS485 MODBUS RTU
• Dimensions：235*185*120mm
• Transport Package：Carton Box
• Specification：235*185*120mm
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：2000set,Month
• Package size per unit product：35.00cm * 25.00cm * 12.00cm
• Gross weight per unit product：2.500kg
• Lead Time：15 days (1 - 50 Pieces) 30 days (51 - 200 Pieces) 60 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. T6512 Appliance Food Analysis, Medical Research, Biochemistry Portable Non Portable Certification RoHS, CE, ISO9001 Type Concentration Meter Measuring range 0~99999mg/L Resolution 0.01mg/L Error range +/-2.5% Signal output RS485 MODBUS RTU Dimensions 235*185*120mm Transport Package Carton Box Specification 235*185*120mm Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 2000set/Month

Packaging & Delivery

Package size per unit product 35.00cm * 25.00cm * 12.00cm Gross weight per unit product 2.500kg Lead Time 15 days (1 - 50 Pieces)
30 days (51 - 200 Pieces)
60 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

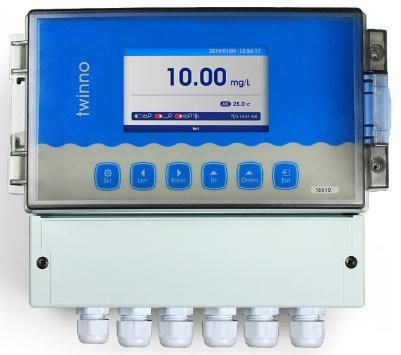

T6512 Online Ion Meter
Industrial Online Ion meter is a microprocessor-based water quality online monitoring control instrument. The instrument is widely used in power plant, petrochemical industry, metallurgical electronics, mining industry, paper industry, biological fermentation engineering, medical industry, food and beverage, environmental protection and water treatment, etc. The controller continuously monitors and control the concentration ionic in aqueous solution.

Instrument features:
Large-screen color LCD display
Intelligent menu operation
Data Recording & Trend Display
Multiple automatic calibration function
Differential signal measurement mode, stable and reliable
Manual and automatic temperature compensation
Three sets of relay control switches
High & low alarm and hysteresis control
4-20mA&RS485 Multiple output modes
Display ion concentration, temperature, state, etc. on the same panel
With password protection to prevent misoperation by non-staff.

Technical parameters:
(1)Measuring range:
 Ion concentration:0~99999mg/L;
Temperature:-10~150.0ºC;
(2)Resolution:
Ion concentration: 0.01mg/L;
Temperature:0.1ºC;
(3)Accuracy:
Ion concentration
(include electrode):±2.5%;
Temperature:±0.3ºC;
(4)Two current outputs:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(5)Signal output:RS485 MODBUS RTU;
(6)Three sets of relay control contacts:
5A 250VAC,5A 30VDC;
(7)Power supply:
85~265VAC±10%,50±1Hz,power≤3W;
9~36VDC,power consumption:≤3W;
(8)Dimensions:235×185×120mm;
(9)Installation: wall mounting;
(10)Protection Level:IP65;
(11)Weight:1.5kg;
(12)Working conditions:
    Working temperature:-10~60ºC;
    Relative humidity: ≤90%;
    No strong magnetic field around except the geomagnetic field.




Model No.	CS6714 (Ammonium)    NH4+
Measurement range	0.1-1000mg/L or customize
Reference system	PVC membrane ion selective electrode
Membrane resistance	<600MΩ
Housing material	PP
Waterproof grade	IP68
pH range	2-12pH
Accuracy	±0.1 mg/L
Pressure resistance	0~0.3MPa
Temperature compensation	NTC10K,PT100,PT1000 (Optional)
Temperature range	0-80ºC
Calibration	Sample calibration, standard liquid calibration
Cable length	Standard 5m cable, can be extended to 100m
Installation thread	NPT3/4"
Application	Water quality and soil analysis, clinical laboratory, ocean survey, industrial process control, geology, metallurgy, agriculture, food and drug analysis and other fields.



Model No.	CS6718 (Calcium)   Ca2+
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.2~40000mg/L
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4''
Application	Industrial water, environmental protection, etc.



Model No.	CS6711 (Chloride)   CL-
pH range	2~12 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	1.8~35,000mg/L
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 5m cable or extend to 100m
Mounting thread	NPT3/4"
Application	Industrial water, environmental protection, etc.

Model No.	CS6710 (Fluoride) F-
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.02~2000mg/L
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-80ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 5m cable or extend to 100m
Mounting thread	NPT3/4"
Application	Industrial water, environmental protection, etc.

Model No.	CS6720  (Nitrate) NO3-
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.5~10000mg/L or customize
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	None
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4"
Application	General application, river, lake, drinking water, environmental protection, etc

Model No.	CS6721  (Nitrite) NO2-
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.5~10000mg/L or customize
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	None
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4"
Application	General application, river, lake, drinking water, environmental protection, etc



Model No.	CS6712  (Potassium)  K+
pH range	2~12 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.5~10000mg/L or customize
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	None
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4"
Application	General application, river, lake, drinking water, environmental protection, etc
