• Model NO.：WZZ-3
• Type：Polarimeter
• Wavelength：589.44nm
• Minimum Indicating Value：0.001°
• Test Tubes：100mm,200mm (Regular)
• Transmission：10%
• Interface：USB
• Net Weight：21kg
• Instrument Size：605mm×370mm ×260mm
• Accuracy：0.05 Level
• Weight(Gross)：36kg
• Overall Dimensions：730mm X 480mm X 470mm
• Transport Package：Standard Export Packing
• Trademark：West Tune
• Origin：China
• HS Code：9027809900
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. WZZ-3 Type Polarimeter Wavelength 589.44nm Minimum Indicating Value 0.001° Test Tubes 100mm/200mm (Regular) Transmission 10% Interface USB Net Weight 21kg Instrument Size 605mm×370mm ×260mm Accuracy 0.05 Level Weight(Gross) 36kg Overall Dimensions 730mm X 480mm X 470mm Transport Package Standard Export Packing Trademark West Tune Origin China HS Code 9027809900 Production Capacity 5000PCS/Month

Product Description

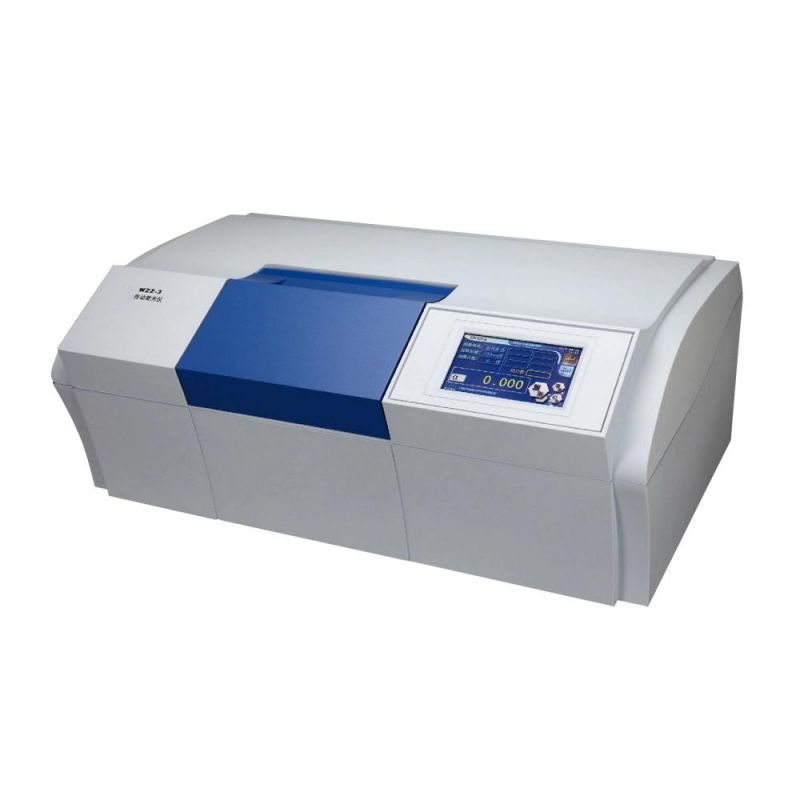

WZZ-3 Automatic Polarimeter

The WZZ-3 automatic polarimeter adopts the photoelectric automatic balance measurement principle, which has the advantages of high sensitivity, stable and reliable reading, and no human error.

The display window uses a color LCD touch screen, equipped with a communication interface, and the test data can be saved and printed.

There are 4 measurement modes to choose from. It can automatically retest 6 times and calculate the average value, which is convenient for users.

Characteristics:

1.Photoelectric test and microcomputer control
2.Measuring specific rotation, optical rotation, concentration and sugar degree Automatic repetition-measurement for 6 times,and calculation of average value and means square root

Specifications:

Parameters/Model	WZZ-3
Measurement modes	Optical rotation, specific rotation, sugar degree,concentration
Light source	Light-emitting diode + color filter, wavelength 589nm (sodium D spectrum)
Wavelength	589.44nm
Measurement range	±45°( optical rotation ), ±120° Z(sugar)
Accuracy	±(0.01+measuring value x0.05%)°( optical rotation )
Repeatability	≤0.003( optical rotation )
Display	Color Touch LCD
Minimum indicating value	0.001°
Test tubes	100mm/200mm (regular)
Transmission	10%
Interface	USB
Net weight	21kg
Instrument size	605mm×370mm ×260mm
Accuracy	0.05 level
Weight(Gross)	36kg
Overall Dimensions	730mm x 480mm x 470mm
