• Model NO.：T6012
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Non Portable
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter
• Measuring range：0~99999mg,L
• Resolution：0.01mg,L;
• Error range：2.5%
• Signal output：RS485 MODBUS RTU
• Dimensions：144X144X118mm
• Mounting hole size：138X138mm
• Transport Package：Carton Box
• Specification：144*144*118mm
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：2000set,Month
• Package size per unit product：35.00cm * 25.00cm * 12.00cm
• Gross weight per unit product：2.500kg
• Lead Time：15 days (1 - 50 Sets) 30 days (51 - 200 Sets) 60 days (201 - 500 Sets) To be negotiated ( > 500 Sets)

Basic Info.

Model NO. T6012 Appliance Food Analysis, Medical Research, Biochemistry Portable Non Portable Certification RoHS, CE, ISO9001 Type Concentration Meter Measuring range 0~99999mg/L Resolution 0.01mg/L; Error range 2.5% Signal output RS485 MODBUS RTU Dimensions 144X144X118mm Mounting hole size 138X138mm Transport Package Carton Box Specification 144*144*118mm Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 2000set/Month

Packaging & Delivery

Package size per unit product 35.00cm * 25.00cm * 12.00cm Gross weight per unit product 2.500kg Lead Time 15 days (1 - 50 Sets)
30 days (51 - 200 Sets)
60 days (201 - 500 Sets)
To be negotiated ( > 500 Sets)

Product Description

T6012 Online Ion Concentration Meter

Industrial Online Ion selective meter is a microprocessor-based water quality online monitoring control instrument. The instrument is widely used in industrial waste water, surface water, drinking water, sea water, and industrial process control ions on-line automatic testing and analysis, etc.Continuously monitor and control ,Ion concentration and temperature of aqueous solution.


Instrument features:
Large-screen color LCD display
Intelligent menu operation
Data Recording & Trend Display
Multiple automatic calibration function
Differential signal measurement mode, stable and reliable
Manual and automatic temperature compensation
Three sets of relay control switches
High & low alarm and hysteresis control
4-20mA&RS485 Multiple output modes
Multi parameter display Simultaneously shows - pH, Temp, mV,etc.
With password protection to prevent misoperation by non-staff.

Technical parameters:
(1)Measuring range:
 Ion concentration:0~99999mg/L;
Temperature:-5~150.0ºC;
(2)Resolution:
Ion concentration: 0.01mg/L;
Temperature:0.1ºC;
(3)Accuracy:
Ion concentration:±2.5%;
Temperature:±0.3ºC;
(4)Two current outputs:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(5)Signal output:RS485 MODBUS RTU;
(6)Three sets of relay control contacts:
5A 250VAC,5A 30VDC;
(7)Power supply:
85~265VAC±10%,50±1Hz,power≤3W;
9~36VDC,power consumption:≤3W;
(8)Dimensions:144×144×118mm;
(9)Installation: Panel & wall mounting or pipeline;
Panel opening size : 138×138mm;
(10)Protection Level:IP65;
(11)Weight:0.8kg;
(12)Working conditions:
    Working temperature:-10~60ºC;
    Relative humidity: ≤90%;
    No strong magnetic field around except the geomagnetic field.




Model No.	CS6714 (Ammonium)    NH4+
Measurement range	0.1-1000mg/L or customize
Reference system	PVC membrane ion selective electrode
Membrane resistance	<600MΩ
Housing material	PP
Waterproof grade	IP68
pH range	2-12pH
Accuracy	±0.1 mg/L
Pressure resistance	0~0.3MPa
Temperature compensation	NTC10K,PT100,PT1000 (Optional)
Temperature range	0-80ºC
Calibration	Sample calibration, standard liquid calibration
Cable length	Standard 5m cable, can be extended to 100m
Installation thread	NPT3/4"
Application	Water quality and soil analysis, clinical laboratory, ocean survey, industrial process control, geology, metallurgy, agriculture, food and drug analysis and other fields.



Model No.	CS6718 (Calcium)   Ca2+
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.2~40000mg/L
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4''
Application	Industrial water, environmental protection, etc.



Model No.	CS6711 (Chloride)   CL-
pH range	2~12 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	1.8~35,000mg/L
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 5m cable or extend to 100m
Mounting thread	NPT3/4"
Application	Industrial water, environmental protection, etc.

Model No.	CS6710 (Fluoride) F-
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.02~2000mg/L
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-80ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 5m cable or extend to 100m
Mounting thread	NPT3/4"
Application	Industrial water, environmental protection, etc.

Model No.	CS6720  (Nitrate) NO3-
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.5~10000mg/L or customize
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	None
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4"
Application	General application, river, lake, drinking water, environmental protection, etc

Model No.	CS6721  (Nitrite) NO2-
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.5~10000mg/L or customize
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	None
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4"
Application	General application, river, lake, drinking water, environmental protection, etc



Model No.	CS6712  (Potassium)  K+
pH range	2~12 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.5~10000mg/L or customize
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	None
Temperature range	0-50ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4"
Application	General application, river, lake, drinking water, environmental protection, etc

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.



FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.



Delivery and Packing:

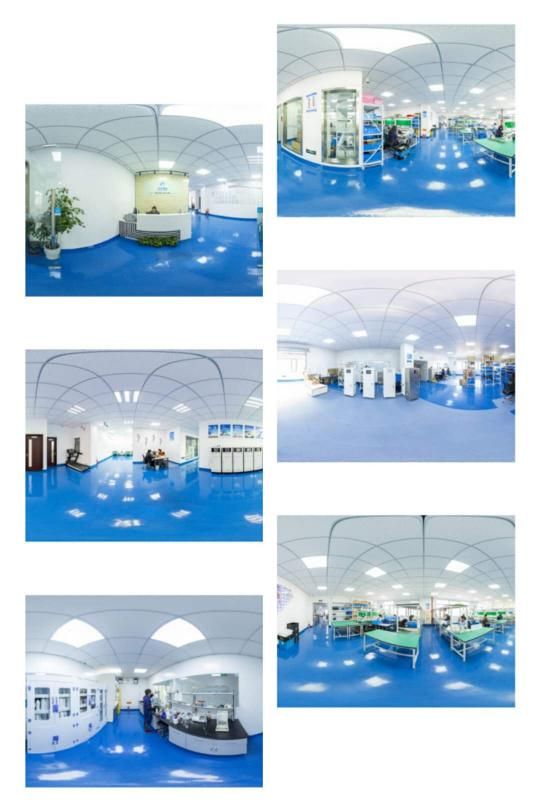

Our company:
