• Model NO.：GC102AF
• Spectrometer Detector：SDD
• Stationary Phase：Gas Chromatography
• Mobile Phase：Gas
• Chromatography Type：Gas Chromatography
• Chromatographic Column Type：Convetional Analytical Column
• Chromatographic Column Length：10~20cm
• Chromatographic Column Diameter：1~2mm
• Model：Gc102af
• Inner Volume：22L
• Temperature Range：15 -399 Degree
• Temperature Control Model：Independent Temperature Control
• Carrier Gas Flow Control Mode：Constant Pressure
• Number of Simultaneous Installations：1
• Injection Unit Type：Packed Column
• Stigma Pressure Range：0 - 400kpa
• Stem Pressure Control Accuracy：0.1kpa
• Flow Setting Range：H20 - 200ml , Min N20 - 200ml , Min
• Transport Package：Wooden Case
• Specification：CE
• Trademark：NANBEI
• Origin：Zhengzhou City, China
• Production Capacity：10000 Set,Sets Per Month

Basic Info.

Model NO. GC102AF Spectrometer Detector SDD Stationary Phase Gas Chromatography Mobile Phase Gas Chromatography Type Gas Chromatography Chromatographic Column Type Convetional Analytical Column Chromatographic Column Length 10~20cm Chromatographic Column Diameter 1~2mm Model Gc102af Inner Volume 22L Temperature Range 15 -399 Degree Temperature Control Model Independent Temperature Control Carrier Gas Flow Control Mode Constant Pressure Number of Simultaneous Installations 1 Injection Unit Type Packed Column Stigma Pressure Range 0 - 400kpa Stem Pressure Control Accuracy 0.1kpa Flow Setting Range H20 - 200ml / Min N20 - 200ml / Min Transport Package Wooden Case Specification CE Trademark NANBEI Origin Zhengzhou City, China Production Capacity 10000 Set/Sets Per Month

Product Description

GC102AF Gas phase / liquid chromatography with CE

Detailed introduction:
The GC102AF Gas Chromatograph is a new generation of universal gas chromatograph equipped with a hydrogen flame ionization detector (FID) for complete computerized counter-control and remote instrument detection and fault diagnosis.

Main feature:
complete PC control, intuitive interface, easy to operate.
high temperature control accuracy (better than ± 0.1 ºC) heating speed, overshoot temperature is small.
With self-diagnosis, power protection, oven over-temperature protection, automatic ignition and other functions.
can accurately display the temperature control set value, the actual value, FID amplifier sensitivity.
With single gas system, accurate scale air control valve parts, to achieve excellent reproducibility and stability.
packed column: column injection, instantaneous vaporization injection, gas injection.
Open computer system can be used with NJ2000 chromatography station to achieve data processing.
Large capacity oven (300mm × 280mm × 270mm) easy to install packed column.
Built-in heating wire structure.

Other:
Power supply voltage: 220V ± 22V 50Hz ± 1Hz
Total power of the instrument: ≤ 1500W

Optional:
NJ2000 Chromatography Workstation

Column oven:
Inner volume: 22L
Temperature range: 15 ºC -399 ºC at room temperature
Temperature control accuracy: ± 0.1 ºC

Sampler:
Temperature range: 15 ºC - 399 ºC at room temperature
Temperature control model: independent temperature control
Carrier gas flow control mode: constant pressure
Number of simultaneous installations: 1
Injection unit type: packed column
Stigma pressure range: 0 - 400kpa
Stem pressure control accuracy: 0.1kpa
Flow setting range: H20 - 200ml / min N20 - 200ml / min

Detector:
Temperature range: 15 ºC - 399 ºC at room temperature
Number of simultaneous installations: up to 1
Ignition function: automatic

Hydrogen Flame Ionization Detector (FID):
Detection limit: ≤ 1 × 10-10 g / s (n-hexadecane)
Baseline noise: ≤ 2 × 10-13 A / h
Baseline drift: ≤ 2 × 10-12 A / h
Dynamic range: 106
RSD: ≤ 3%


FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.


Pre-sale service

· 24hours online to ensure quick response to customers' inquiry or online message;

· Guide customers to choose the best suitable machine model;

· Offer detailed specification and competitive prices;

Contract execution

· Machine production will be arranged strictly according to the contract;

· Machine photos will be sent to you for inspection during production;

· Send customs clearance documents by DHL;

· Update latest news after delivery and prepare customs clearance;

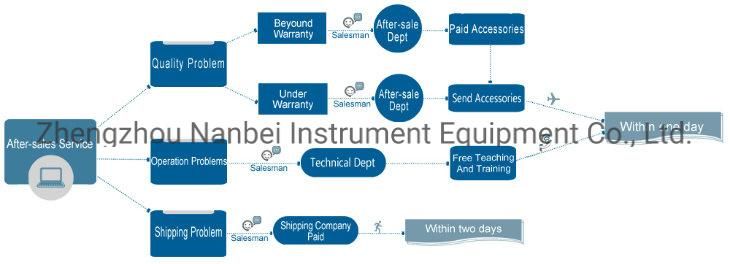

After-sale service

· 12 months warranty except for wear parts;

· Broken spare parts (except for wear parts) will be sent for free due to quality problems;

· In time response to customers technical problems;

· New products update for customers' reference

Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!

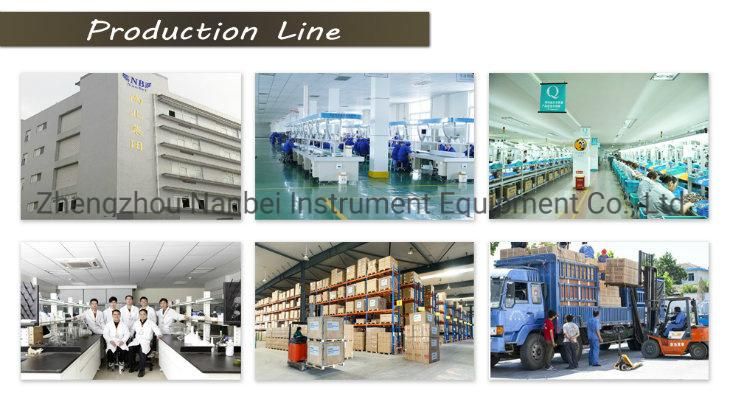

Factory Show:


Certification:
Our products have international certifications such as SGS, CE, ISO!

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
