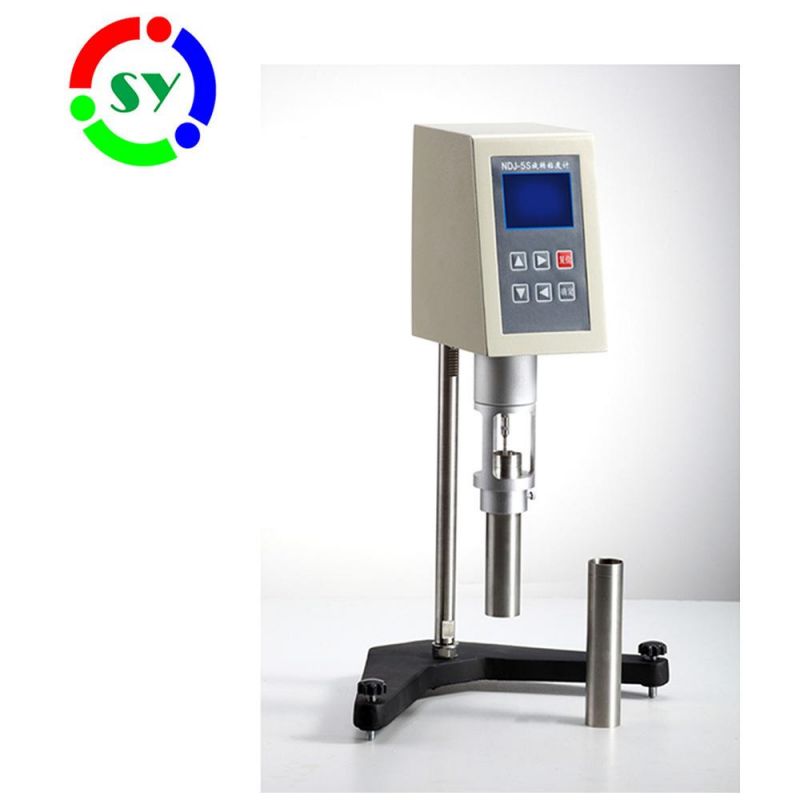

Ndj-5s Rotational Viscometer to Determine Absolute Viscosity

Beijing Samyon Instruments Co., Ltd.
  • Measurement Range：10 MPa.S~100000MPa.S
  • Measuring Accuracy：+,-3% (F.S)
  • Spindles：No.1, 2, 3 ,4. Four Spindles in Total
  • Rotating Speed：6 Rpm, 12 Rpm, 30 Rpm, and 60 Rpm
  • Transport Package：Carton Case
  • Specification：SGS

Base Info

  • Model NO.：Ndj-5s
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

1. Measurement range10 mPa·s~100000 mPa·s2. SpindleNo.1~No.4, total four spindles3. Rotation speed6 RPM, 12 RPM, 30 RPM, and 60 RPM4. Measuring accuracy±3% (F·S)5. Power supplyAC 220 V±10%, 50 Hz±10%6. Ambient temperature5 ºC~35 ºC7. Relative humidity≤ 80%
1. Measurement range: 10 mPa·s~100000 mPa·s
2. Spindle: No.1~No.4, total four spindles
3. Rotation speed: 6 RPM, 12 RPM, 30 RPM, and 60 RPM
4. Measuring accuracy: ±3% (F·S)
5. Power supply: AC 220 V±10%, 50 Hz±10%
6. Ambient temperature: 5 ºC~35 ºC
7. Relative humidity: ≤ 80%

III. Optional parts
1. HWY-10 Circulation water bath
2. Special sample cup
3. No.0 spindle
 Ndj-5s Rotational Viscometer to Determine Absolute ViscosityNdj-5s Rotational Viscometer to Determine Absolute Viscosity Ndj-5s Rotational Viscometer to Determine Absolute ViscosityNdj-5s Rotational Viscometer to Determine Absolute Viscosity


I. Summary
   Adopting advanced mechanical design technology, manufacture technique and microcomputer controlling technology, it can collect data accurately. Using white background light and ultra-bright LCD, it can show test data clearly.
   The instrument has the characteristics of high sensitivity, reliability, convenience and good looking. It is used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids. It can be widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, detergents, and other fluids.

II. Main technical specifications
1. Measurement range: 10 mPa·s~100000 mPa·s
2. Spindle: No.1~No.4, total four spindles
3. Rotation speed: 6 RPM, 12 RPM, 30 RPM, and 60 RPM
4. Measuring accuracy: ±3% (F·S)
5. Power supply: AC 220 V±10%, 50 Hz±10%
6. Ambient temperature: 5 ºC~35 ºC
7. Relative humidity: ≤ 80%

III. Optional parts
1. HWY-10 Circulation water bath
2. Special sample cup
3. No.0 spindle
