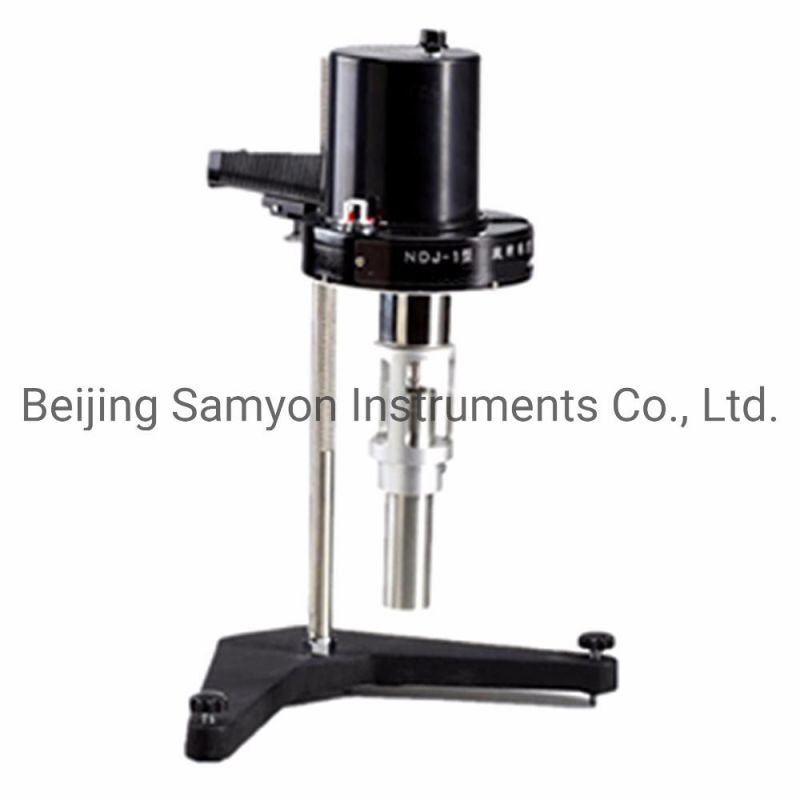

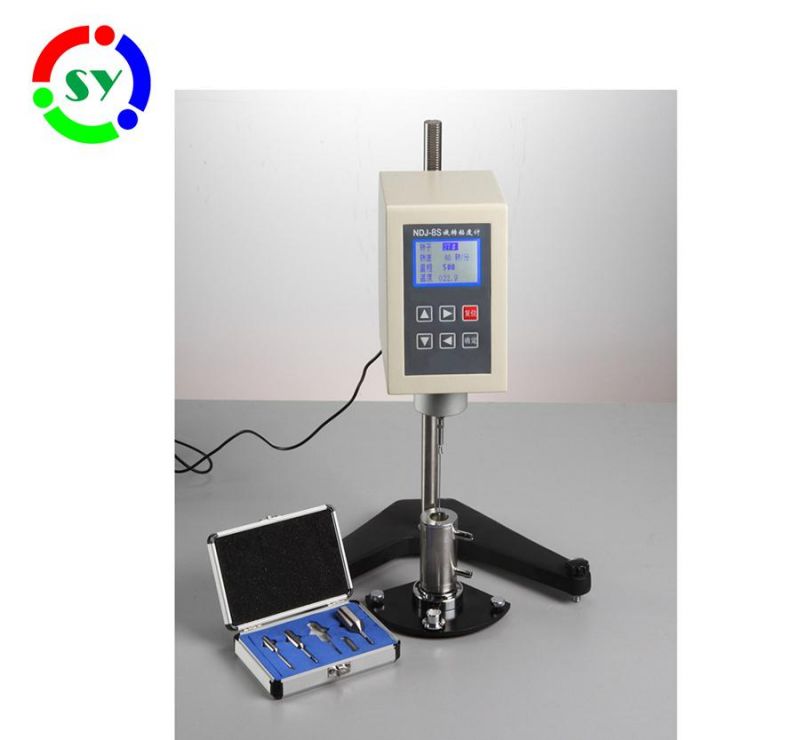

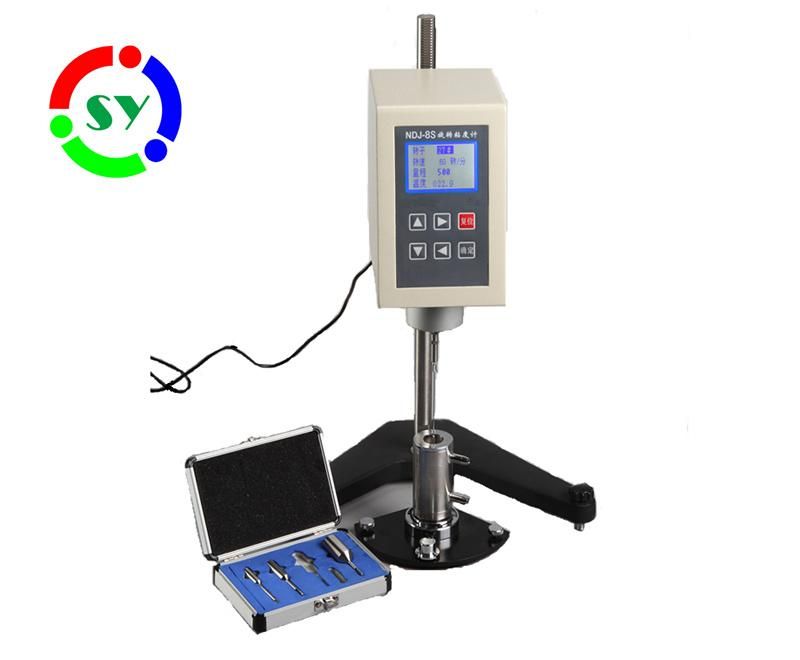

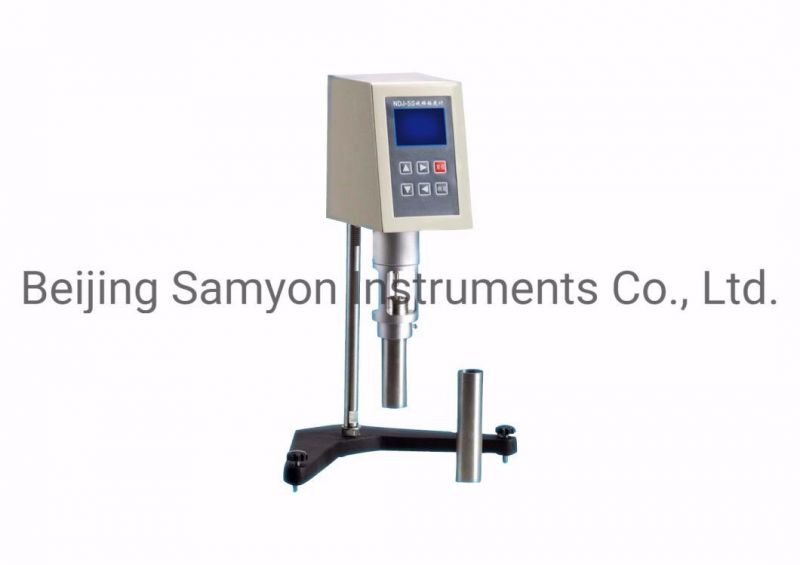

Ndj-8s Rotational Viscometer and Rotary Viscometer

Beijing Samyon Instruments Co., Ltd.
  • Measurement Range：10 MPa.S~2000000 MPa.S
  • Spindle：No.1~No.4, Four Spindles in Total
  • Rotation Speed：0.3 Rpm, 0.6 Rpm, 1.5 Rpm, 3 Rpm, 6 Rpm, 12 RP
  • Measuring Accuracy：+,-3% (F.S)
  • Power Supply：AC 220 V+,-10%, 50 Hz+,-10%
  • Transport Package：Carton Case

Base Info

  • Model NO.：NDJ-8S
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

1. Measurement range10 mPa·s~2000000 mPa·s2. SpindleNo.1~No.4, four spindles in total3. Rotation speed0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM,
12 RPM, 30 RPM, and 60 RPM, 8 grades in total4. Measuring accuracy±3% (F·S)5. Power supplyAC 220 V±10%, 50 Hz±10%6. Ambient temperature5 ºC~35 ºC7. Relative humidity≤80%
1. Measurement range: 10 mPa·s~2000000 mPa·s
2. Spindle: No.1~No.4, four spindles in total
3. Rotation speed:
    0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM,
   12 RPM, 30 RPM, and 60 RPM, 8 grades in total
4. Measuring accuracy: ±3% (F·S)
5. Power supply: AC 220 V±10%, 50 Hz±10%
6. Ambient temperature: 5 ºC~35 ºC
7. Relative humidity: ≤80%Ndj-8s Rotational Viscometer and Rotary ViscometerNdj-8s Rotational Viscometer and Rotary Viscometer Ndj-8s Rotational Viscometer and Rotary ViscometerNdj-8s Rotational Viscometer and Rotary Viscometer


I. Summary
The instrument adopts advanced mechanical design technologies, manufacturing techniques, and microcomputer controlling techniques, so it can collect data accurately. It uses background light, ultra-brighten LCD, so it can show test data clearly. It has a special printing port, so it can print out test data through a printer.
The instrument has characteristics of high measurement sensitivity, reliable measurement data, convenience, and good looking. It can be used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids. It has been widely used to determine viscosity of oil greases, paints, plastic materials, pharmaceuticals, coating materials, adhesives, washing solvents, and other fluids.
II. Main technical specifications
1. Measurement range: 10 mPa·s~2000000 mPa·s
2. Spindle: No.1~No.4, four spindles in total
3. Rotation speed:
    0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM,
   12 RPM, 30 RPM, and 60 RPM, 8 grades in total
4. Measuring accuracy: ±3% (F·S)
5. Power supply: AC 220 V±10%, 50 Hz±10%
6. Ambient temperature: 5 ºC~35 ºC
7. Relative humidity: ≤80%
