• Model NO.：K800-CO
• Voltage：DC 24V
• Operating Temperature：-20 Degree ~ +50 Degree
• Signal Output：4 to 20mA
• Explosion-Proof Grade：Exd Iict6
• Certificate：Ce
• Warranty：1 Year
• Detection Range：0-30%Vol
• Low Alarm：18%Vol
• High Alarm：23%Vol
• Transport Package：Carton
• Specification：1.8kg
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：1000PCS Per Month

Basic Info.

Model NO. K800-CO Voltage DC 24V Operating Temperature -20 Degree ~ +50 Degree Signal Output 4 to 20mA Explosion-Proof Grade Exd Iict6 Certificate Ce Warranty 1 Year Detection Range 0-30%Vol Low Alarm 18%Vol High Alarm 23%Vol Transport Package Carton Specification 1.8kg Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 1000PCS Per Month

Product Description

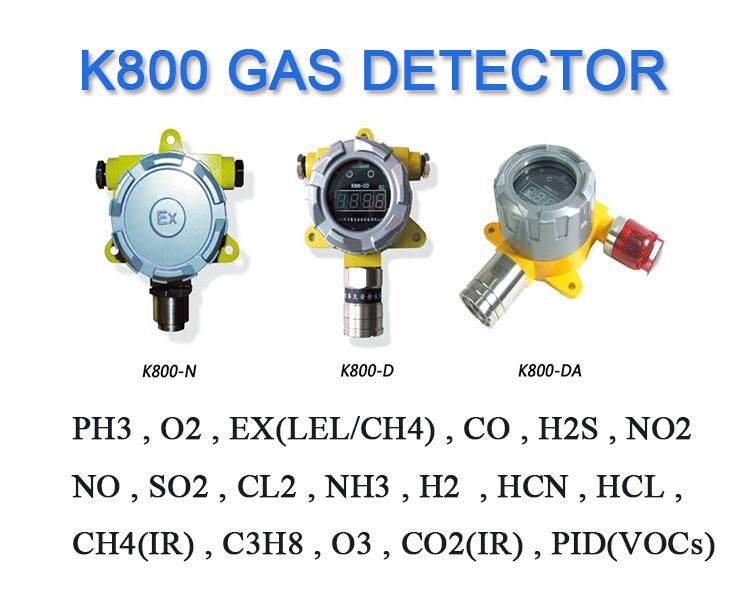

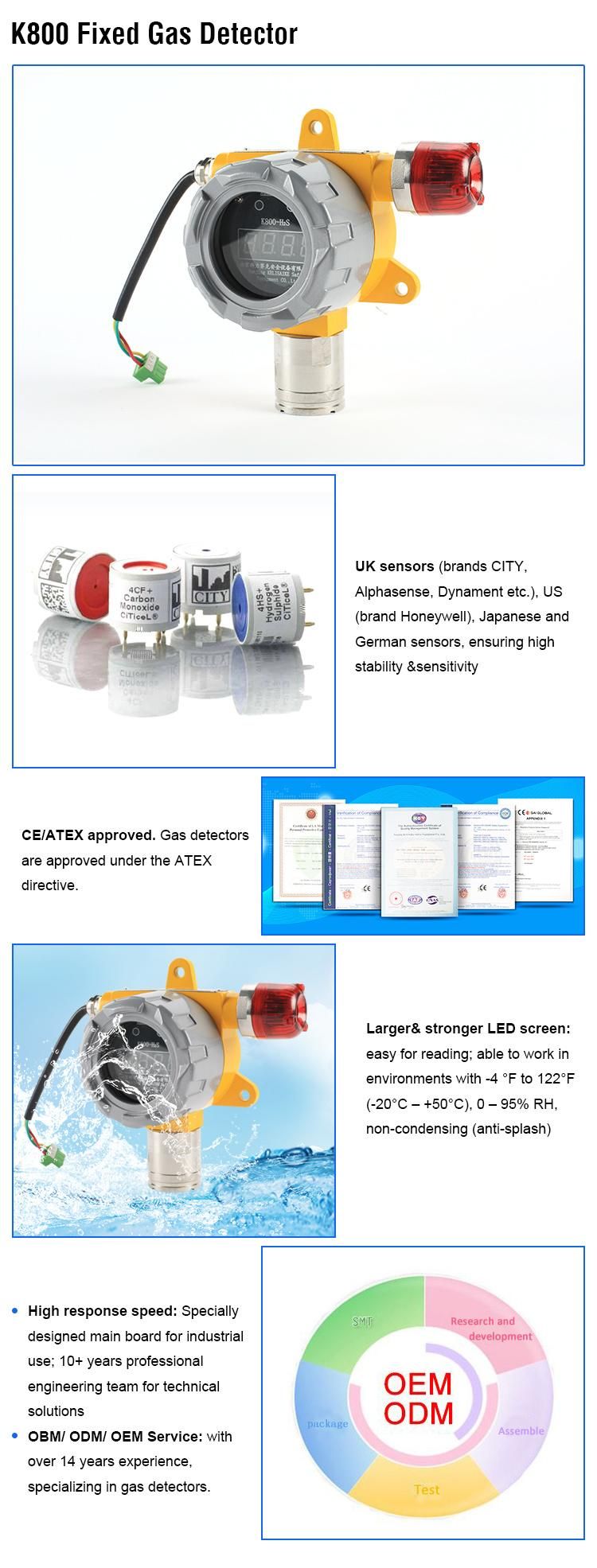

K800 Fixed Gas Transmitter Carbon Monoxide Detector
K800 Series Fixed Gas detector provides comprehensive monitoring of combustible, toxic gas hazards in potentially explosive atmospheres, indoors and outdoors-and is marked by installation ease and flexibility, user-friendly operation and cost-effective gas monitoring.
The 2 or 3 or 4 wire, 4-20mA and RS485 MODBUS output K800 series fixed device provides continuous detection and monitoring of gases for a wide range of industrial environments. The fixed point detector with in-built alarm and fault relays for the protection of personnel and plant from flammable, toxic and oxygen hazards.



>>>Key Features

1)  Providing digital LCD displayer, alarm facility with sound and light, and solid relay output on the spot, allowing contol the equipments easily.
2)  Supporting 4 to 20mA analog signal output (DC24V), connecting with the remote host contoller, and having direct access to the DCS.
3)  Connecting  3 - core shield cable, 3x1.0mm.
4)  Special transmitter mounting kit making the installation and performing calibration easier and better.
5)  Ambient temperature: -20°C~+50°C
6)  Explosion-proof grade: ExdIICT6
7)  High sensitivity, short response time and good stabilization

>>>Technical Specification:


Power supply	24VDC
Output signal	4-20mA standard industrial signal output
Operating temperature	-20°C~+50°C
Display	Backlight LED
Relative humidity	15%~90% RH (non-condensing)
Atmospheric pressure	86~106Kpa
Explosion-proof grade	Exd IICT6
Warranty	1 year

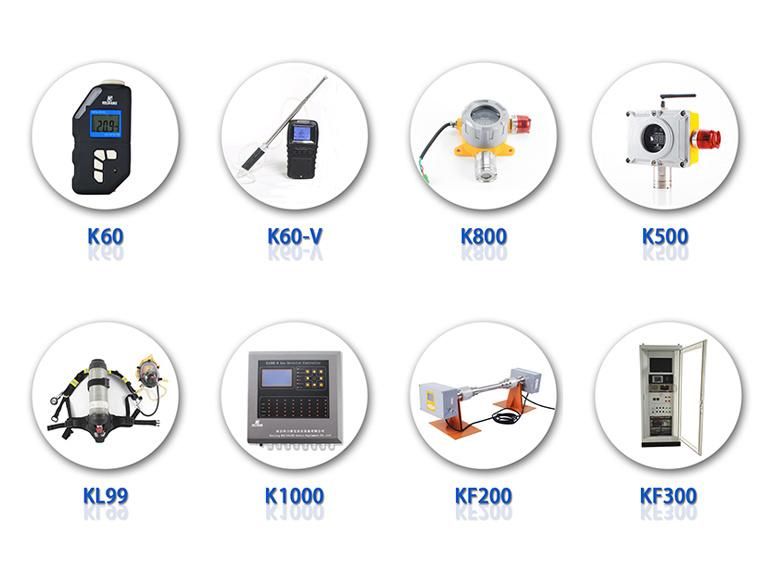

>>>Product Catalogue





>>>Company Information:





>>> Our Services

1.For all our customers, our products have 1 year warranty, and life-long maintenance.

2.All inquiries will be replied in 24 hours.

3.Providing technical support, professional engineers are specialized in dealing with gas monitoring problems you met.

4. OEM and ODM service are welcome

5.KELISAIKE plant is located in Nanjing, only 1 hour by high speedtrain from Shanghai. Welcome to visit the factory.

6.All products are well tested and packed before shipment; the certificate of inspection will be provided.


>>>Why choose KELISAIKE

1. Mutual benefit : We are a factory.  The price is much more competitive than others in the same quality.
2. Professional engineers: With 10+ years history, KELISAIKE has a professional engineering team: 4 engineers who have more than 10 years' experience and over 5 engineer assistants in gas detection line, with Hi-Tech manufacturing equipments, we make more accurate and stable products.
3. Customize : We have strong R&D team, the custom product as your request are available.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS). (b) Design your color box(≥500PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service: (a) 1 Year warranty. (b) If there's any inferior-quality products are found, new ones could be sent to replace at free cost in the next order after confirmation.

>>> FAQ
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before place an qty order.

Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on -line, please have a detailed looking and choose the interested models in our site. Or you can send email to us.

Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
