• Model NO.：CL-2059A
• Current Output：4-20mA
• Communication Interface：RS485
• Transport Package：PP Bag, Carton
• Specification：CE, SGS, ISO
• Trademark：Boqu
• Origin：Shanghai
• HS Code：9027809900
• Production Capacity：60000PCS,Year

Basic Info.

Model NO. CL-2059A Current Output 4-20mA Communication Interface RS485 Transport Package PP Bag, Carton Specification CE, SGS, ISO Trademark Boqu Origin Shanghai HS Code 9027809900 Production Capacity 60000PCS/Year

Product Description

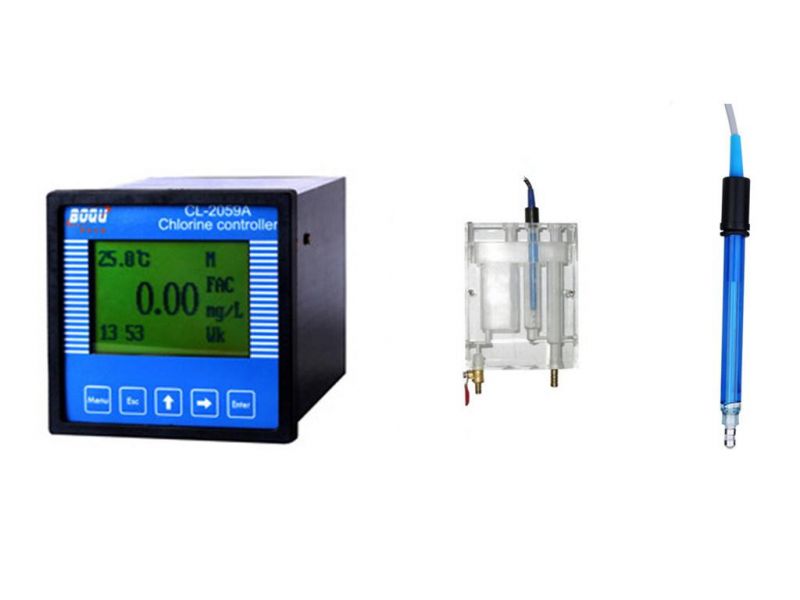

CL-2059A Industrial online residual Chlorine Analyzer



Description

CL-2059A is a total new industrial residual chlorine analyzer, with high intelligence, sensitivity. It can measure residual chlorine and temperature simultaneously. It is widely used in such industries as thermal power plant, running water, pharmaceutical, drinking water, water purification, industrial pure water, swimming pool disinfection residual chlorine continuous monitoring.


Features

Highly intelligent: CL-2059A Industrial online residual chlorine analyzer adopts industry leading overall design concept of the core components to ensure high-quality, import instruments.

Current output: Adopting isolation technology, strong anti-jamming capability, measurement parameters selectable, high and low alarm settings.

High and low alarm: Hardware isolation, each channel can be arbitrarily chosen measurement parameters, can be preset hysteresis.

Temperature compensation: 0 ~ 50 degree Centigrade Automatic Temperature Compensation
Waterproof and dustproof: Good sealing instrument.

Menu: Fully English display and menu, easy to operation.

Multi-screen display: There are three kinds of instrument display, user-friendly display for the different requirements.

Chlorine calibration: Provide chlorine zero and slope calibration, clear menu design.












	Technical indexes:
1.	Measuring range:Chlorine: 0 ~ 20.00mg / L, Resolution: 0.01mg / L
2.	Temperature: 0 ~ 99.9 degree Centigrade, 0.1 degree Centigrade resolution
3.	Accuracy: Chlorine: Better than ± 1% or ± 0.01mg /L.
4.	Temperature: Better than ± 0.5 degree Centigrade (0 ~ 50.0 degree Centigrade).
5.	Minmum detection: 0.01mg /L
6.	Repeatability Chlorine: ± 0.01mg / L
7.	Stability Chlorine: ± 0.01 (mg / L) / 24h
8.	Galvanically isolated output: 4 ~ 20 mA (load <750 Ω ) Current Output
9.	Measurement parameters can be selected independently (FAC, T)
10.	Output current error: ≤ ± 1% FS
11.	High and low alarm: AC220V, 5A, each channel can be selected independently measured parameters corresponding (FAC, T)
12.	Alarm hysteresis: Can be set according to the selected parameters
13.	Communication: RS485 (Optional)
14.	Working environment: Temperature 0 ~ 60 degree Centigrade, Relative humidity <85%
15.	Installation: Opening type, panel mounted.
16.	Dimensions: 96 (L) × 96 (W) × 118 (D) mm       Hole Size: 92 × 92 mm
17.	Instrument Weight: 0.5kg
18.	Standard set: Chlorine analyzer, constant-current chlorine electrode, constant-current groove (3-hole), electrode cable (5m). User's manual in English.
