• Model NO.：TP-2100
• Transport Package：Wooden Case
• Specification：CE; ISO
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：90318090
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. TP-2100 Transport Package Wooden Case Specification CE; ISO Trademark TOP Origin Chongqing, China HS Code 90318090 Production Capacity 200 Sets/Month

Product Description

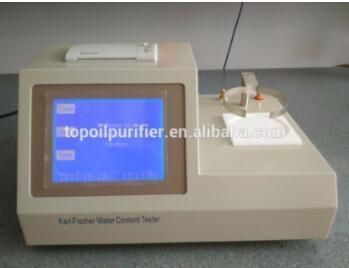

TP-2100 Petroleum Products Water Content Tester with LCD Color Screen
Product Application:
This TP-2100 water content tester adopts the global recognized classical moisture testing method - Karl Fischer Coulometric Method which is the most accurate method with low cost. With the universal standard and analyzing method, it can quickly analyze the moisture content in liquid, solid and gas and directly display testing results, with testing range from 0.0001%(1ppm) to 100%. Therefore, this testing method has been widely used in institutions and enterprises of petroleum, chemical industry, power, pharmaceuticals, pesticide, railways, research, etc.

The whole testing process is automatically controlled by this tester itself. Its auto-stirring and analyzing would be finished within 60seconds, and results would be displayed directly. Totally closed titration system avoids damage to operator from reagent. Equipped with 500ml Karl Fischer Reagent, which could test about 1000 times sample continuously, completely avoiding big deviations of other moisture testing method and thus improving quality index of products.



Application Area:

Liquid	Chemical Industry: alcohols,ethers,esters,alkenes,benzenes,amines,organic solvents, phenols and other organic products applicable to Karl Fischer Method for determination  Petroleum and Power Industry: Insulation Oil, Transformer Oil, Turbine Oil, etc. Pharmaceutical Industry : medicine materials Pesticide Field: emulsifier Other Industry: electrolyte of lithium battery
Solid	Various mineral salt, citric acid, explosives, paraffin and other solids with good solubility
Gas	Natural gas, liquefied gas, Freon, butadiene, chloromethane, etc.

Features:
1. Powerful Itanium and double CPU; direct A/D conversion of testing electrode data.
2. 7 inch color touch LCD display in English. Function of reagent failure prompt, extending the service time of it.
3. Completely closed titration system avoids direct touch between people and the reagent as well as the influence of environmental humidity.
4. The outer shell is made of high-quality cold-rolled steel plate with electrostatic sprayed surface, anti-corrosion and easy to clean.
5. Auto-control and compensation of electrical current via MCU contributes to quick balance of reagent.
6. Auto-control electrolysis current within 430mA ensures high sensitivity and fast analyzing speed.
7. Preinstalled with cubature (including 3 pieces of formula), statistical calculation (including average calculation, standard deviation calculation and rate of change calculation) and elementary arithmetic, with the advantages of auto-analysis and calculation.
8. Automatically tests the sample, analyzes and displays results, and calculates the average value of several times of test.
9. Infinite capacity of results storage is convenient to consult previous testing data whenever necessary.
10. Automatically calculates and prints the following content: ug / ppm  / percentage / mg/L / sample number / experimenter / testing date, etc.
11. Network management available by connection with laptop or computer communications through USB or RS232 interface.
12. Multilanguage display available. The program of tester can be upgraded accordingly if related national standard is revised.

Technical Parameters

Method of Display	7 inch color touch LCD with English display
Method of Testing	MPU controlled electrolysis(Karl Fischer Coulometric Method)
Rate of Electrolysis	2.4mgH2O/min
Electrolysis Current	Auto-control within 430Ma
Testing Range	0.01ugH2O-200mgH2O
Water Content Range	0.0001%(1ppm)-100%
Sensitivity	0.01ugH2O
Accuracy	Water Content: 2ugH2O-100ugH2O; Deviations≤±1ug, Water Content: 100ugH2O-1000ugH2O; Deviations≤±2.9ug, Water Content:>1000ugH2O; Deviations≤±0.2%(excluding deviations of sample injection)
Drift Compensation	Auto-control via MPU
Stirring Speed	Adjustable and steerable
End-point Indication	LCD display /output via printing / voice warning / end-point indication light
Data Input	Input via touch screen
Sample Number	Numbered by users
Storage	Infinite storage capacity
Printer	Thermal printer, high-speed, low-consumption, with 44 millimeter-wide paper
Printing Content	ug / ppm / mg/L / sample number /experimenter / date
Calendar/Clock	automatic display and print analyzing time and date
Self-checking	Breakdown self-checking
Special Function	Work independently or connected with laptop or other computers
Power Consumption	<40W
Dimension	390×270×190mm
Working Environment	Temperature: 5ºC-40ºC,Humidity: <85%
Power Supply	AC220V±10% 50HZ±2.5HZ
Weight	About 7KG

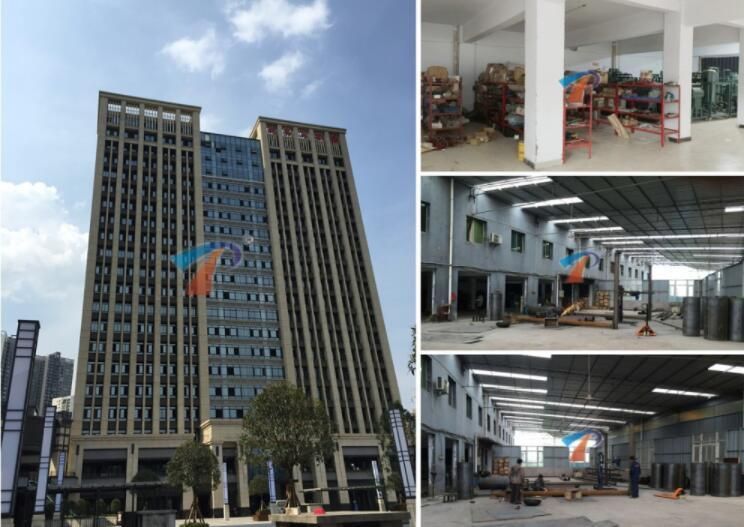

Our Company
Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation,and introduces advanced technology.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.



Pre-sale Service
1)Will give response within 24 hours for all inquiries and  questions about our products.
2)Recommend the most suitable machine according  customer's demands.
3)Professional pre-sale model/configuration selection advise  and technical support -- offered by experienced technician.
4)Free on-site installation, debugging and technical training --  offered by strictly trained technology application engineers.
5)Offer OEM service.
After-sale Service
1)The warranty period is 24 months from commissioning    acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
2)We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
3)We build instrument service profile for our clients to record   the product service and maintenance conditions.
4)After instruments start service, we will pay follow-ups to collect the service conditions.

Packing and Delivery

Safety and Timely Transportation
1)Standard export wooden case with high quality cushioning material ensure the item arrive customer in   good condition.
2)Carefully check every packing detail before delivery to avoid any troubles during the transportation.
3)Appointed logistics company could be used according to customers demands.
4)Do our best to make sure customer can get their goods in time.

Contact Us
If you are interested in this product, please don't hesitate to contact with me. I will give response within 24 hours.
