• Model NO.：SGW-2
• HS Code：90189090
• Production Capacity：100,Month

Basic Info.

Model NO. SGW-2 HS Code 90189090 Production Capacity 100/Month

Product Description

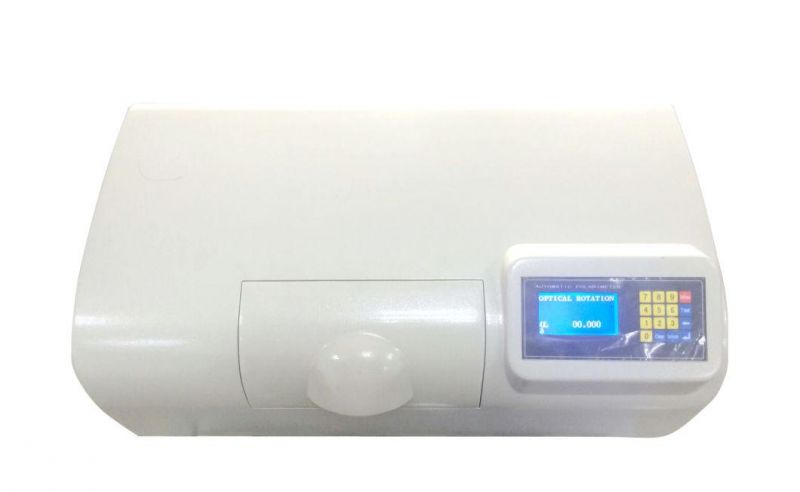

SGW-2 Automatic Polarimeter

Features

l        Use the LED plus filter stand for sodium lamp in order to lengthen the service life of the light power.

l        Need not prewarm when turning on.

l        Measuring specific rotation, optical rotation, sugar degree and concentration

l        Automatic repetition-measurement for 6 times, and calculation of average value and means square root

l        Sample chamber adopts constant temperature designing in order to decrease the temperature heating effect on     measurement

l        Temperature display

l        USB interface

Specifications

l        Measurement range: -45°+45°

l        Minimum Reading: 0.001°

l        Accuracy: ±0.01° (-15°£ optical rotation £+15°)

                           ±0.02° (optical rotation<-15° or optical rotation>+15°)

l        Repeatability (Standard Deviation s):£ 0.002° (optical rotation)

l        Minimum sample transmittance: 1%

l        Temperature control range: 18-30°C

l        Accuracy: ±0.5°Cl        Interface: USB and RS232l        Weight (Gross): 37kg

l        Overall Dimensions: 850mm *470mm * 380mm
