• Model NO.：SGW-1
• HS Code：90189090
• Production Capacity：100,Month

Basic Info.

Model NO. SGW-1 HS Code 90189090 Production Capacity 100/Month

Product Description

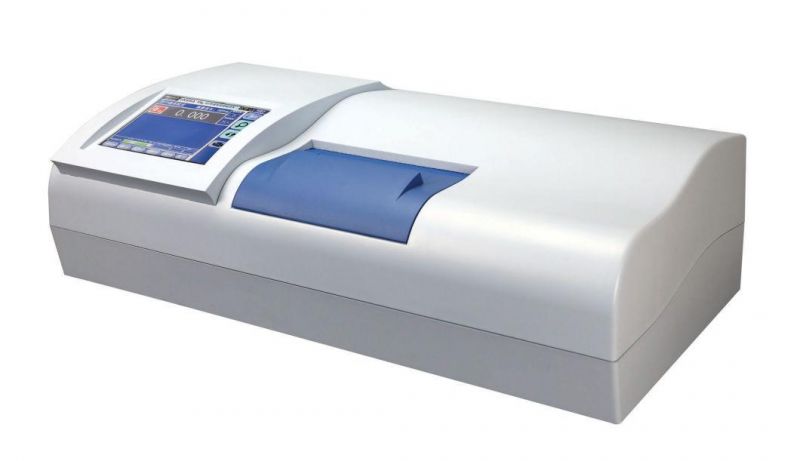

SGW-1 Automatic Polarimeter

Characteristics

Need not prewarm when turning on.

Measuring specific rotation, optical rotation, sugar degree and concentration

Automatic repetition-measurement for 6 times, and calculation of average value and means square root

Sample chamber adopts constant temperature designing in order to decrease the temperature heating effect on measurement

Measurement of dark-colored sample

USB

Specifications

Measurement range: -45°~+45°, -120°~+120°Z

Accuracy:

± (0.005° + measuring value ´ 0.03%)

± (0.015°Z + measuring value ´ 0.03%)

Minimum indicating value: 0.001°, 0.01°Z

Repeatability: sample transmittance>1% £ 0.002° (£ 0.006°Z)

Display: LCD

Light Source: LED (2.4V, 1W, 5000hours)

Operation Wavelength: 589.3nm

Length of Test Tube (100mm and 200mm): 1 each

Weight (Gross): 32 kg

Overall Dimensions: 850mm ´ 470mm ´ 380mm

Optional Accessories: Micro test tube (50mm)
