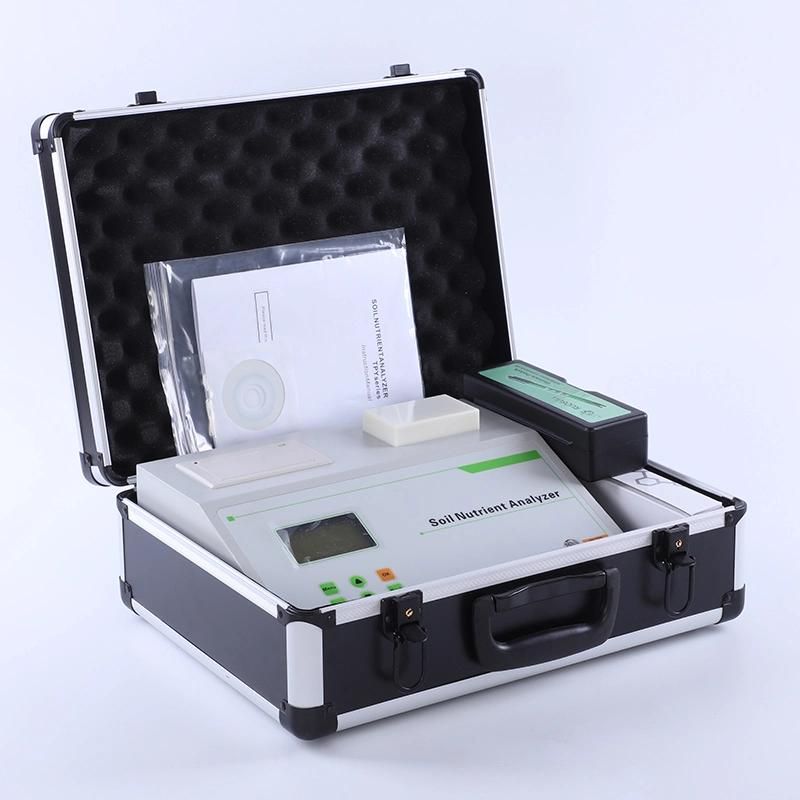

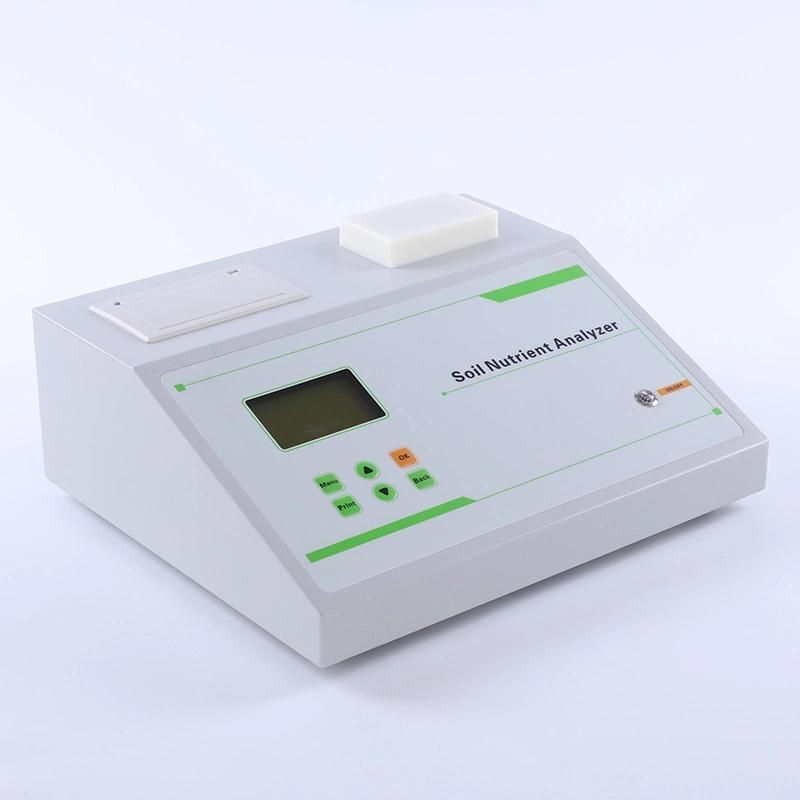

Tpy Series Soil Nutrient Analyzer
Zhejiang Top Cloud-Agri Technology Co., Ltd.- Place of Origin：Zhejiang China (Mainland)
- Usage：Nutrient Meter
- Power：Electronic
- Transport Package：in Carton
- Specification：ISO9001
- Trademark：TOP
Base Info
- Model NO.：TPY-6,TPY-6A,TPY-6PC,TPY-7PC,TPY-IV
- Origin：Zhejiang, China (Mainland)
- HS Code：9031809090
- Production Capacity：30 Unit,Units Per Week
Description
Specifications
ISO9001 quality certificate
Test N, P, K, humic acid, organic matter, salinity, pH in the soil, fertilizer, G. W: 10KG V: 68*41*23CM
Product description:
Soil Nutrient Analyzer TPY series can quickly test the N, P, K organic matter, salinity and pH in the soil, fertilizer, and plants, The machine can store and print data, has complete chemicals which are for free at the first time.
Characteristic
Can quickly test N, P, K organic matter, salinity, and pH in the soil, fertilizer, and plants
With the function of time display, can automatically record and save the time of tested sample
Can store about 1000 groups datum (time, place, fertilizer), datum can be checked at any time.
Can print testing data, sample No, testing item, sample content, variety, and so on
Big LCD display, easy to operate
Can set crop variety, crop yield, fertilizer variety, and automatically count the fertilizing amount
Built-in large capacity rechargeable battery.
Technical parameters
1. Nutrient measurement technical parameters:
Stability: A(absorbency of light) drift < 0.003 in three minutes.
Repetitiveness: A(absorbency of light) < 0.005
Linearity errors: <3.0 %
Sensitivity: Red light ≥ 4.5 × 10-5; Blue light ≥ 3.17× 10-3
Wave length range: Red light 620 ± 4nm; Blue light 440± 4nm; Green light 520 ± 4 nm
Anti-knocking performance: Qualified
(Attention: Above technical parameters, all exceed national standards)

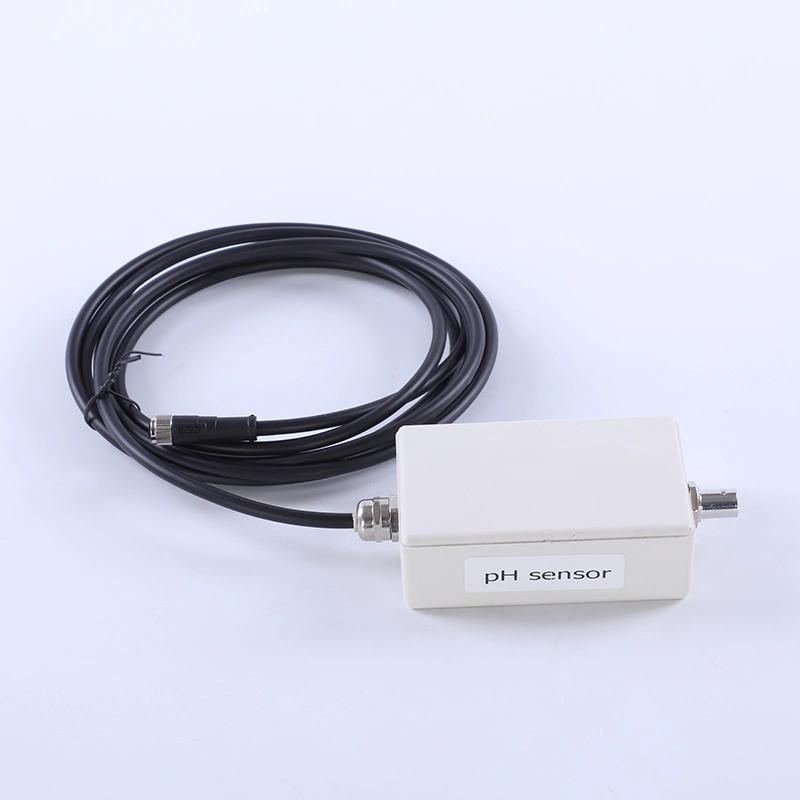

2. PH technical parameters:
Testing range: 1-14
Error: ± 0.1
3. Salinity technical parameters:
Testing range: 0.01% -1.00%
Relative error: ± 5%

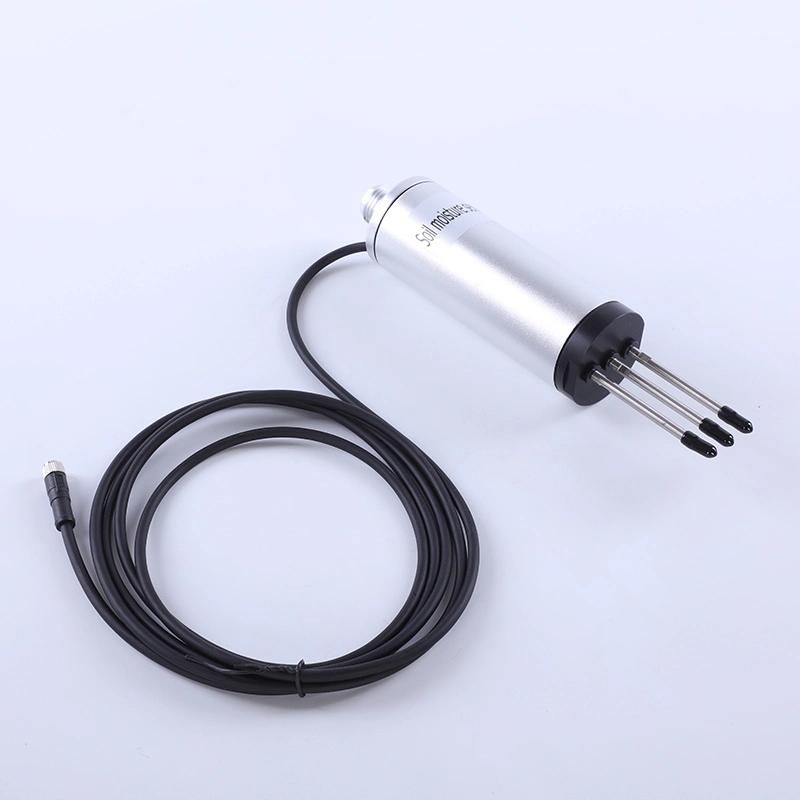

4. Soil moisture technical parameters:
Moisture unit: % (m3/m3)
Moisture content rate testing range: 0-100%
Accuracy: ± 2%
5. Power:
Alternating current: 80V- 240V, 50Hz
Direct current: 18V, 5W (With tester)
Function
Test N, P, K, pH, organic matter, soil pH, soil salinity, with storage and printing function
| Model | Function difference |
| TPY-IV | Test N, P, K, organic matter, with formula function, can provide guidance for fertilizing amount according to needs, without printing function |
| TPY-6 | Test N, P, K, PH, organic matter, soil PH, soil salinity, with storage and printing function |
| TPY-6A | Based on all the functions of TYP-6, built-in the amount of nutrients needed for the growth of 70 kinds of crops, can provide guidance for fertilizing amount according to needs, with printing function |
| TPY-6PC | Based on all the functions of TYP-6, with"intelligent formula fertilization software system" CD, built-in the number of nutrients needed for the growth of 70 kinds of crops, with printing function, can connect with computer for data storage, tele-transmission, and printing |
| TPY-7PC | Based on all the functions of TYP-6, can test soil moisture, with"intelligent formula fertilization software system" CD, built-in the number of nutrients needed for the growth of 70 kinds of crops, with printing function, can connect with computer for data storage, tele-transmission, and printing. |
