Tyd-1 Portable Soil Hardness Tester

Zhejiang Top Cloud-Agri Technology Co., Ltd.
  • Warranty：1 Year
  • Hardness Indicatioon Range：0-40mm, 0-500kg,Cm2
  • Delivery Time：Within 7 Days
  • Transport Package：in Carton
  • Specification：ISO
  • Trademark：TOP

Base Info

  • Model NO.：TYD-1
  • Origin：Zhejiang, China (Mainland)
  • HS Code：9031809090
  • Production Capacity：30 Piece,Pieces Per Week

Description

Basic Info.

Model NO. TYD-1 Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 30 Piece/Pieces Per Week

Product Description

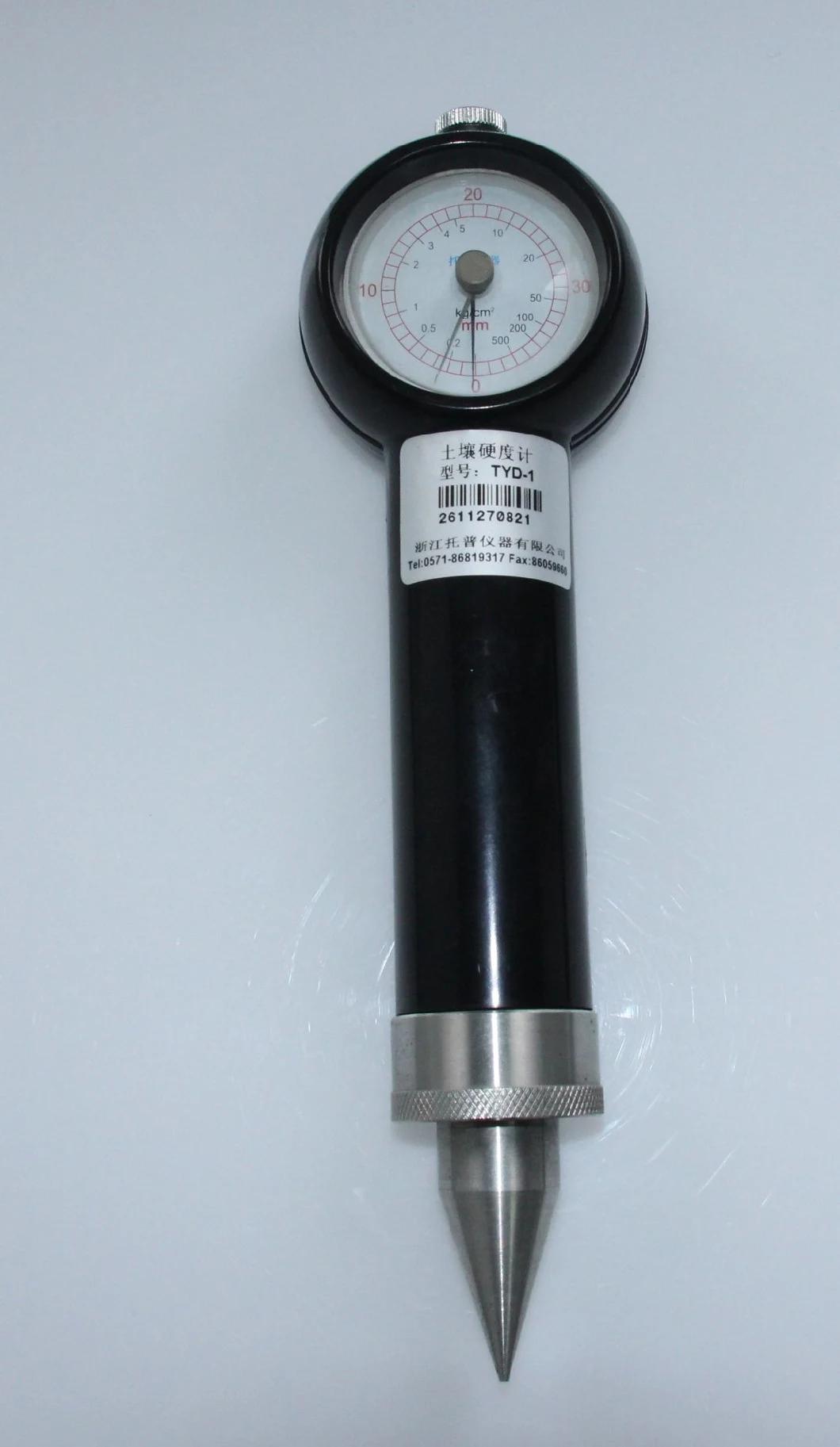

Name : Soil hardness meter

Model :TYD-1

Tyd-1 Portable Soil Hardness Tester


Detailed Product Description

1. Used to test the soil hardness
2. With driven-rotary knob
3. With the function of permeability of water

Product description

Soil Hardness Meter adopts theoretical value of pressure gauge Kg/cm² , directly measures soil hardness. For soil permeability, aeration and soil properties survey research. It's very convenient and accurate to use this instrument.

Test method

1. Level the measuring soil surface, then insert top part of instrument into the soil until (opening) part.
2. Vertically pull out the soil hardness meter and read the hardness indicating value of the meter.
After finished reading the measured value, drive rotary-knob, make the indicating meter to zero.
3. Soil attached to the inside of measuring head will make the measurements incorrect. Please clockwise rotate (opening) part, take down round sleeve, rotate to the fixed position after cleaning up, then can measure again.
4. Hardness indication range: 0-40mm, 0-500kg/cm²
