• Model NO.：BK-Y6A
• Performance：Automation
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Non-Customized
• Name：Soil Nutrient Tester
• Model：Bk-Y6a
• Stability：Absorbency of Light Drift<0.003
• Repeatability：Absorbency of Light<0.005
• Sensitivity：Red Light≥4.5*10‐5
• Wavelength Range：Red Light 620±5nm
• pH Testing Range：1~14
• pH Error：±0.5%
• Salinity Testing Range：0.01%~1.00%
• Salinity Error：±5%
• Power Supply：220V,110V±10%, 50,60Hz
• Packing Size(W*D*H) mm：670*385*215
• Gross Weight：9kg
• Anti-Knocking Performance：Qualified
• Linearity Errors：<3.0%
• Transport Package：Wooden Case or Carton Package
• Specification：670*385*215
• Trademark：BIOBASE
• Origin：Shandong, China
• Production Capacity：500unit,Month

Model

BK-Y6A

BK-Y6PC

BK-Y7PC

Soil Nutrient

Stability

Absorbency of light drift<0.003

Repeatability

Absorbency of light<0.005

Linearity Errors

Red light for Copper sulfate, and blue light for potassium dichromate < 3.0%

Sensitivity

Red light≥4.5*10‐5, Blue light ≥3.17*10‐3

Wavelength Range

Red light 620±5nm; Blue light 440±5nm

Anti-Knocking Performance

Qualified

Ph

Testing Range

1~14

Error

±0.5%

Salinity

Testing Range

0.01%~1.00%

Error

±5%

Function

Test N,P,K, organic matter, soil pH, soil salinity, with storage function, built‐in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs, with printing function

On the basis of TPY‐6A, with a software, be able to connect to computer for data storage, tele‐transmission and printing

On the basis of TPY‐6PC, but can measure soil moisture

Power Supply

220V/110V±10%, 50/60Hz

Packing Size(W*D*H) mm

670*385*215

Gross Weight

9kg

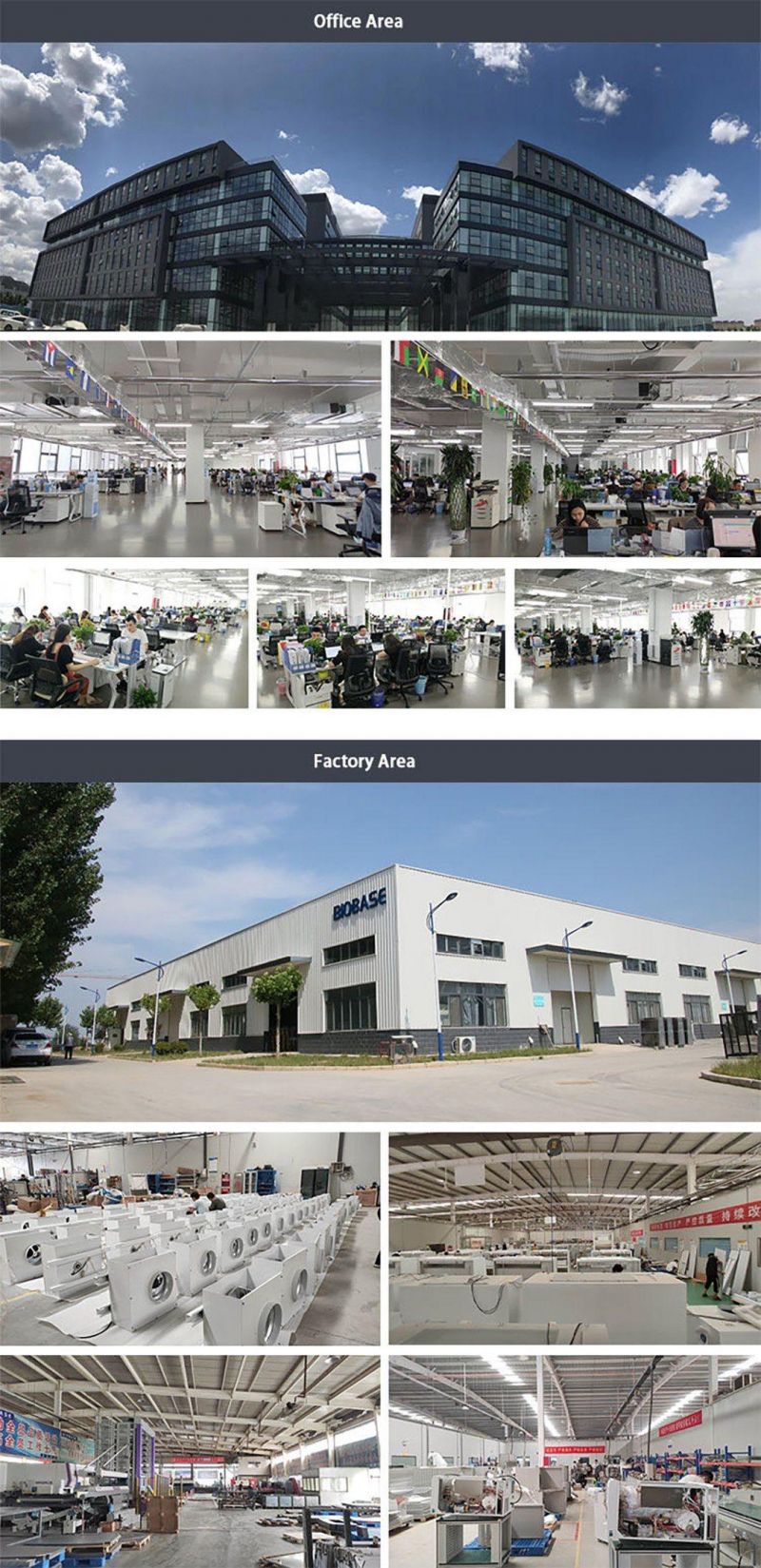

Company Profile
