• Model NO.：BK-GC112A
• Mobile Phase：Gas
• Chromatography Type：Gas Chromatography

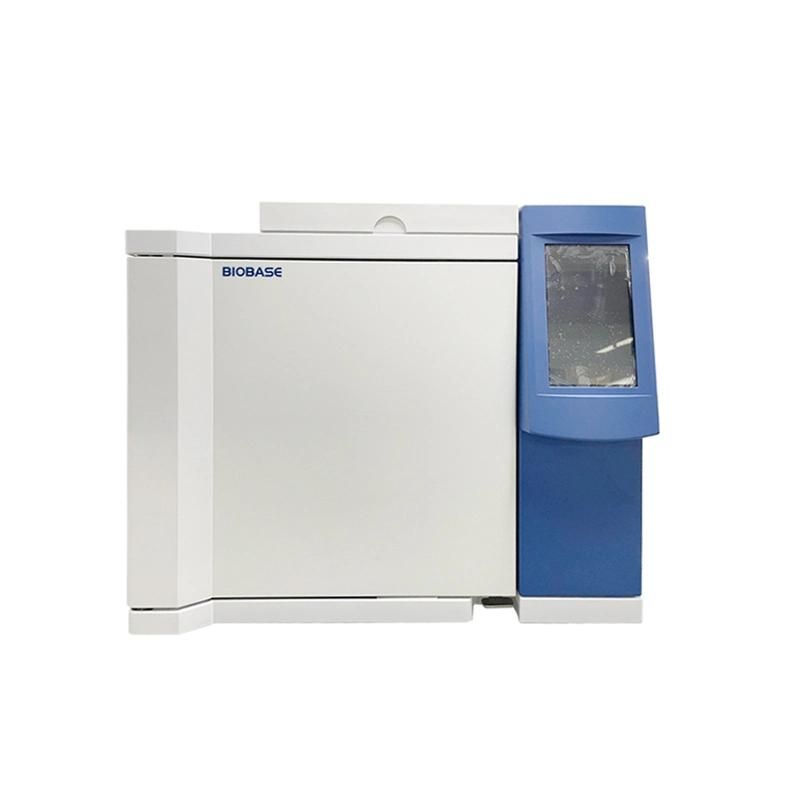

• Name：Gas Chromatograph
• Model：Bk-Gc112A
• Capacity：22L
• Temp. Range：Rt+5ºC~400ºC
• Temp.Accuracy：±0.1ºC
• Temp.Program：9 Step
• Program Total Time：9999.9 Min
• Maxtemp. Heating Rate：60ºC,Min
• Power Supply：AC220V±10%, 50Hz
• Standard Accessory：Fid Detector
• Package Size (W*D*H)：740*730*840mm
• Gross Weight：80kg
• Hydrogen Flame Ionization Detector (Fid)：Logarithmic Amplifier
• Flow Setting Range：H2: 0-200ml,Min
• Flow Setting Rangen2：0-150ml,Min
• Transport Package：Wooden Case or Carton Package
• Specification：740*730*840mm
• Trademark：BIOBASE
• Origin：Shandong, China
• Production Capacity：500unit,Month

Product Description

Product Parameters

Model

BK-GC112A

Oven

Capacity

22L

Temp. Range

RT+5ºC~400ºC

Temp.Accuracy

±0.1ºC

Temp.Program

9 step

Program Total Time

9999.9 min

MaxTemp. Heating Rate

60ºC/min

Sample Injector

Temp.Range

RT+7ºC~420ºC

Column or split injector can be installed.

Carrier gas flow control type: Constant pressure mode.

Max. Quantity

3pcs

Pre Column Pressure Range

0-400kpa

Pre Column Pressure Accuracy

0.1kpa

Flow Setting Range

H2: 0-200ml/min;

N2: 0-150ml/min

Detector

Temp.Range

RT+7ºC~420ºC

Hydrogen Flame Ionization Detector (FID)

Logarithmic amplifier

High voltage switch control

Baseline signal display

Detection limit:≤3*10-12g/s

(Sample: n-hexadecane)

Baseline noise:≤5*10-14A

Baseline draft:≤6*10-13A

Dynamic range: 107

RSD:≤3%

Thermal Conductivity Detector (TCD)

(Optional)

Sensitivity: 8000mv.ml/mg

(Sample: n-hexadecane)

Baseline noise:≤0.05mV

Baseline draft:≤0.15mV/30min

Dynamic range: 105

Power Supply

AC220V±10%, 50Hz

Standard Accessory

FID detector,Capillary injection system, Chromatography workstation software,RS232 port, LAN port

Optional Accessory

TCD detector, Chromatographic column, Gas purifier.

Package Size (W*D*H)

740*730*840mm

Gross Weight

80kg
