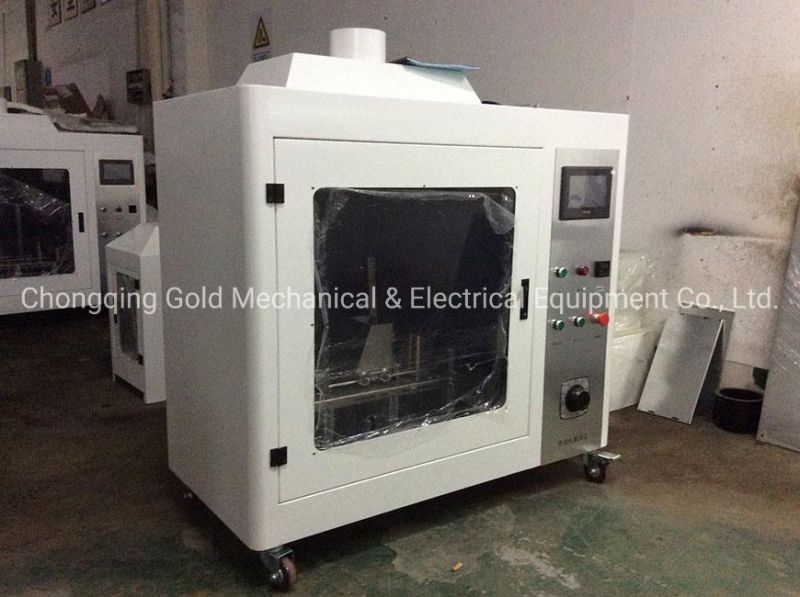

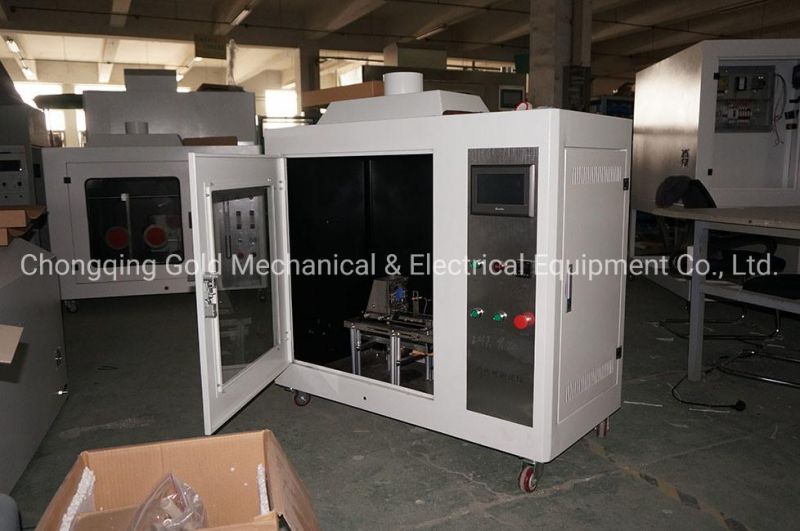

IEC 60695-2 Glow Wire Tester for Plastic
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Item Name：IEC 60695-2-10 Glow Wire Fire Flammability Testing
- Application：Plastics, Electrical Accessory
- Reference Standards：IEC 60695-2-10, UL 746A,DIN 695, IEC 829,
- Power：AC220V + 10% , 50Hz
- Weight：About 50kg
- Overall Dimensions：W710xd365xh760 W1000 X D600 X H1260
Base Info
- Model NO.：GD-IEC60695
- Material：Stainless Steel
- Oversea Training：Provided
- Test Chamber Size：1000mm(W) X 600mm(D) X 1260mm(H)
- Warranty：12 Months
- Searing Circle Temperature：500-1000 Degree
- Combustion Box：0.55 M3
- Pressure for Sample：0.94-0.96 N
- Function：Combustion Box
- Key Word：Glow Wire Tester
- Transport Package：Standard Export Wooden Case
- Specification：1000mm(W) x 600mm(D) x 1260mm(H)
- Trademark：GOLD
- Origin：Chongqing China(Mainland)
- HS Code：9031809090
- Production Capacity：10 Sets Per Month
Description
Features:
- Non-flame ignition.
- Automation control systems and digital display.
- Temperature range: 500 ~ 1000 ºC, digital display adjustable.
- Temperature error: ± 10 ºC (500 ~ 750 ºC); ± 15 ºC (750 ~ 1000 ºC), temperature measuring instruments Accuracy ± 0.5 magnitude.

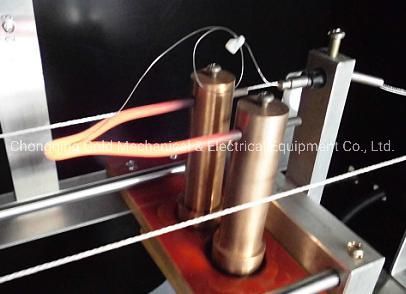

- Temperature sensors: Φ0.5K type armoured thermocouple, thermocouple imports.
- Pressure applied to the specimen: 0.8N ~ 1.2N, and limit the indentation depth of at least 7mm.
- Timing range: 0 to 99 minutes 99 seconds adjustable.
- And having Shi burning time (Ta, generally according to standards set to 30), second holding burning time (Ti) and the flame goes out time (Te) of the timer.
- Time error: ± 1s.

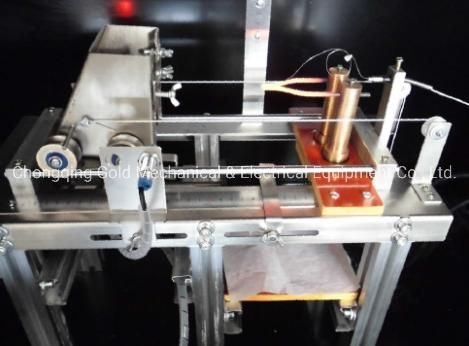

- Ignited bedding layer: 10mm thick white pine wood, covered 12g / m2 ~ 30g / m2 standard tissue paper, from under the glow wire 200mm ± 5mm.
- Instrument operation is simple, stable and reliable temperature measurement system and automatic temperature compensation.
Specification:
Our company:
Chongqing Gold, which is dedicated in design, manufacture and service of Fire Testing Equipment.
Since 2009 Gold has developed 70 kinds of instruments and has helped many customers in China, USA, India, Singapore, Pakistan, Indonesia and European.
Major industries including Building materials, Aviation, Rails, IMO, Wire and Cable, Safety Protection, Automotive Interior and so on.
