• Model NO.：BK-GC7820
• Mobile Phase：Gas
• Chromatography Type：Gas Chromatography

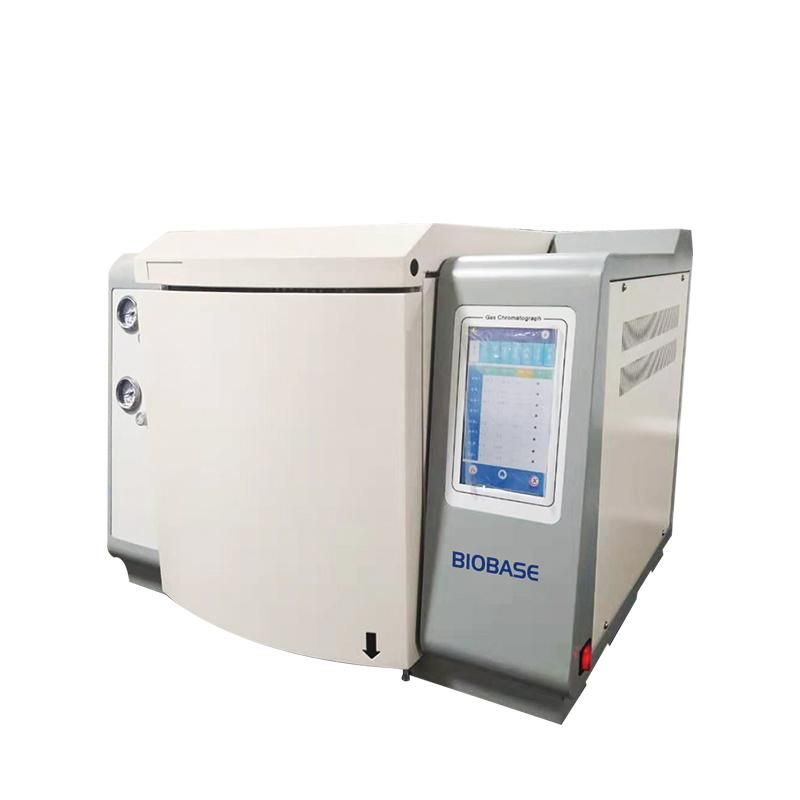

• Name：Gas Chromatograph
• Model：Bk-Gc7820
• Temp. Range：Rt~450ºC
• Temp. Accuracy：≤±0.1ºC
• Temp. Program：16-Phase
• Max. Temp. Heating Rate：40ºC,Min
• Fiddetection Limit：≤3×10-12g,S
• Baseline Drift：≤1X10-13A,30min
• Linear Range：≥107
• Sensitivity：>10000mv.Ml,Mg
• Power Supply：AC110,220V±10%, 50,60Hz
• Package Size (W*D*H)：800*570*650mm
• Gross Weight：75kg
• Standard Accessory：Fid Detector
• Optional Accessory：Sample Injection System
• Transport Package：Wooden Case or Carton Package
• Specification：800*570*650mm
• Trademark：BIOBASE
• Origin：Shandong, China
• Production Capacity：500unit,Month

Product Description

Product Parameters

Model

BK-GC7820

Oven

Temp. Range

RT~450ºC

Temp. Accuracy

≤±0.1ºC

Temp. Program

16-phase

Max. Temp. Heating Rate

40ºC/min

Detector

Hydrogen Flame Ionization Detector (FID)

Detection limit:≤3×10-12g/s

(Sample:n-hexadecane)

Baseline drift:≤1x10-13A/30min

Linear range:≥107

ThermalConductivityDetector (TCD) (Optional)

Sensitivity: >10000mv.ml/mg

(Sample: n-hexadecane)

Linear range:≥105

Electron Capture Detector (ECD) (Optional)

Detection limit:≤1×10-14g/ml

(Sample:n-hexadecane δ-666)

Linear range: ≥104

Flame Photometric Detector (FPD) (Optional)

Detection limit:≤2×10-11g/s(S ofthiophene)

Detection limit:≤1×10-12g/s(P ofmethyl parathion)

Linear range (S): ≥103

Linear range (P): ≥104

Nitrogen and Phosphorus Detector (NPD) (Optional)

Detection limit:≤1×10-12g/s(Azobenzene)

Detection limit:≤1×10-12g/s(Marla sulfur phosphorous)

Linear range: ≥103

Power Supply

AC110/220V±10%, 50/60Hz

Standard Accessory

FID detector, Chromatography workstation software

Optional Accessory

Sample injection system, TCD, ECD, FPD and NPD detector, Chromatographic column.

Package Size (W*D*H)

800*570*650mm

Gross Weight

75kg
