• Model NO.：MSLAB31
• Built-in Thermal Printer：Wbc, Rbc,Plt
• Predilute：20µl
• Whole Blood：10µl
• Throughout：60 Samples Per Hour
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MSL
• Origin：China (Mainland)
• HS Code：9027500000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. MSLAB31 Built-in Thermal Printer Wbc/ Rbc/Plt Predilute 20µl Whole Blood 10µl Throughout 60 Samples Per Hour Transport Package Standard Export Packing Specification CE Trademark MSL Origin China (Mainland) HS Code 9027500000 Production Capacity 1000 Sets/Month

Product Description

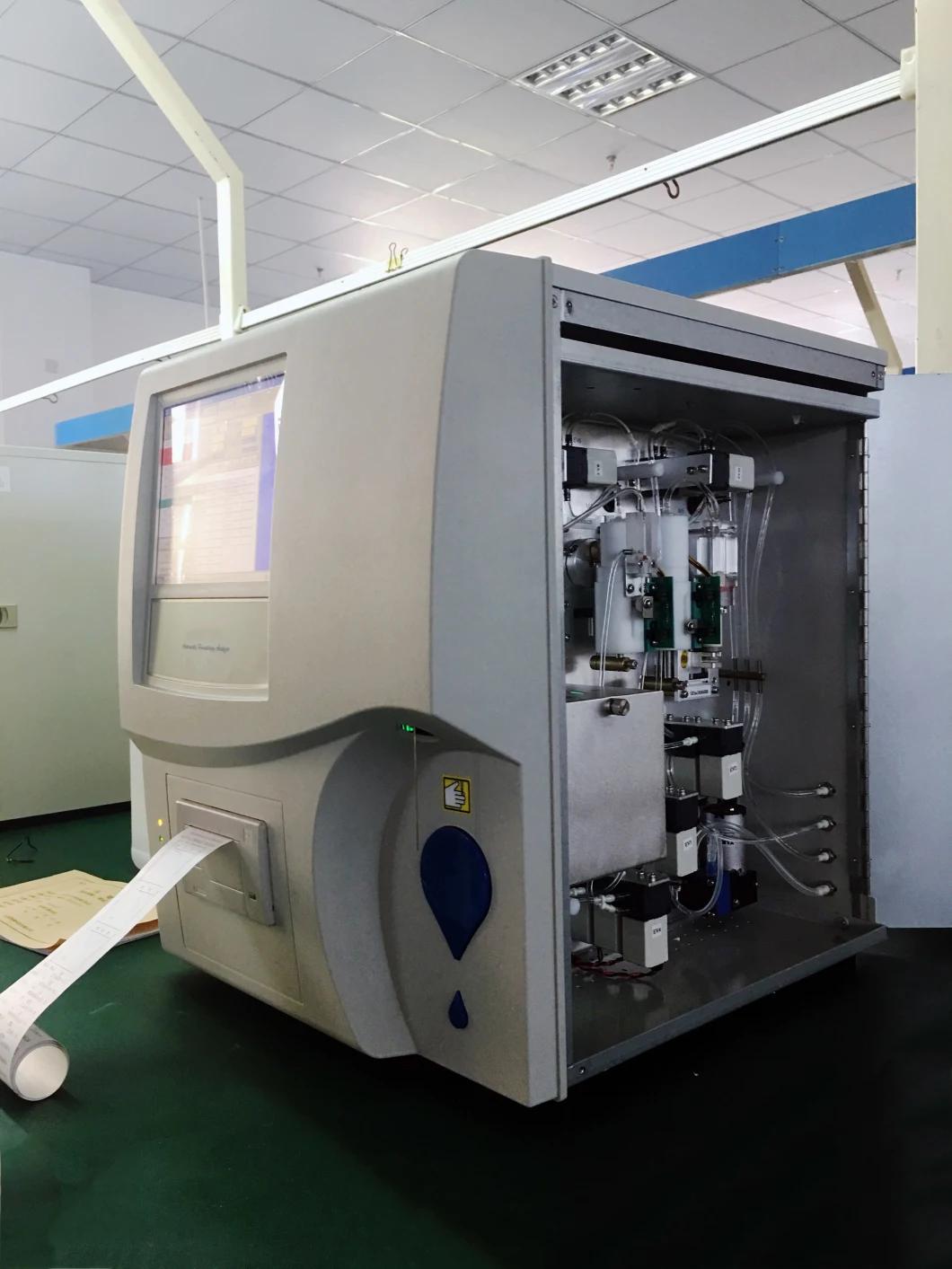

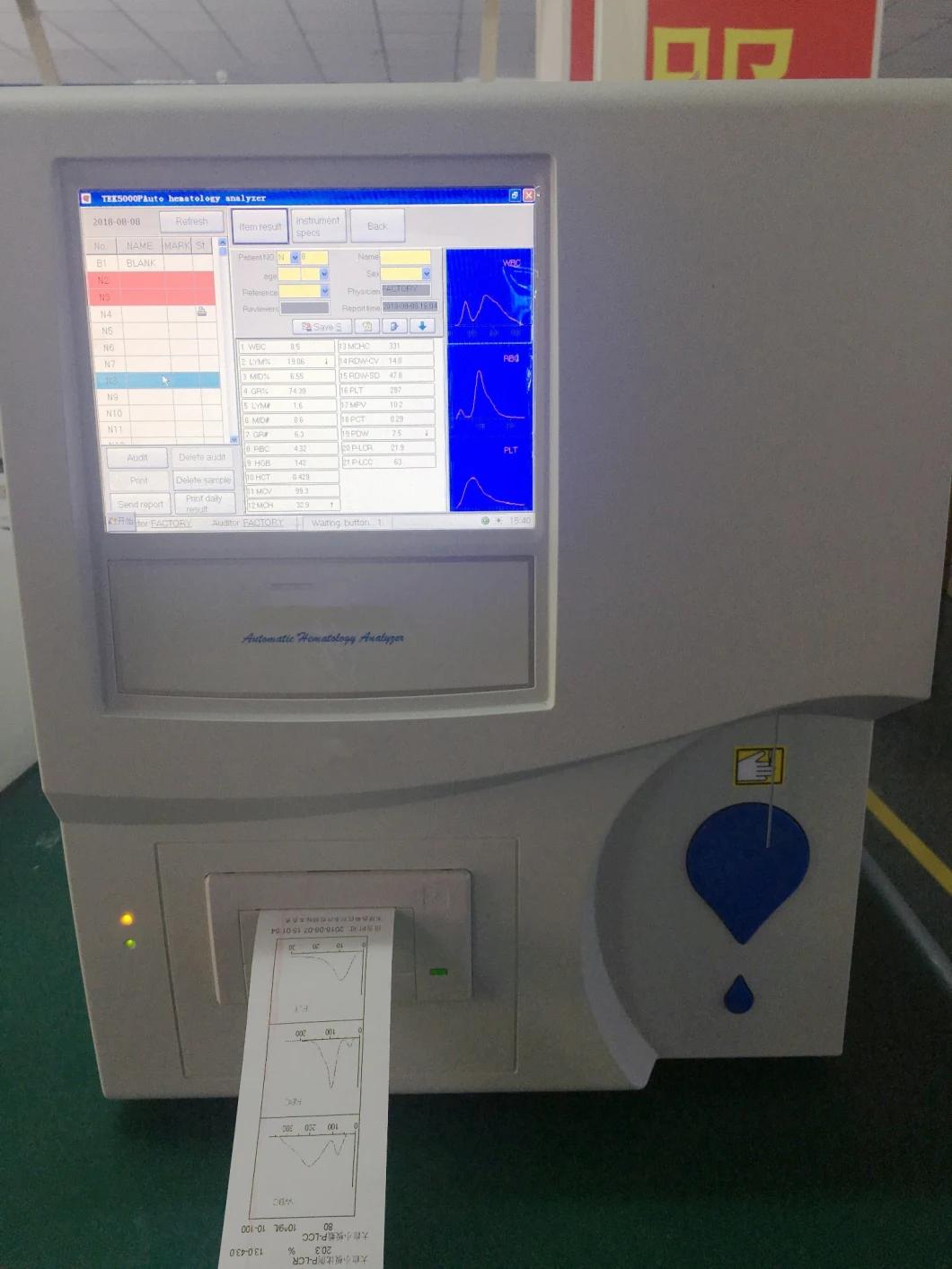

MSLAB31 Human used three part portable blood analyzer


MSLAB31Automatic Hematology Analyzer


1. 3-part differentiation of WBC
2. Double Chambers for WBC and RBC/PLT
3. Throughout: 60 samples per hour
4. Intelligent reagent management function:

Reagent information and residual display,

1. Strong data management system



1. Multilingual for option
2. LCD with high resolution
3. Bar code scanner ( optional)
4. Reagent alarm system ( optional )

MSLAB31  Automatic Hematology Analyzer

Technical Specifications

21Parameter + 3Histogram
WBC, LYM#, MID#, GRA#, LY%, MID%, GR%, RBC, HGB,HCT,
MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT,
P-LCR, P-LCC and Histogram for WBC, RBC, PLT

Method:
Coulter Principle (Electrical impedance)
Colorimetry hemoglobin determination

Performance

Parameter	Linearity range	Precision (CV%)
WBC(109/L)	0.0-100.0	2.0(at 7.0)
RBC(1012/L)	0.00-9.99	1.5(at 5.00)
HGB(g/L)	0-300	1.0 (at 140)
PLT(109/L)	0-1000	4.5(at 250)



Parameter	Linearity range	Precision (CV%)
WBC(109/L)	0.0-100.0	2.0(4.0-10.0)
RBC(1012/L)	0.00-9.99	1.5(3.50-5.50)
HGB(g/L)	0-300	1.0 (110-160)
PLT(109/L)	0-1000	4.5(100-300)

Throughout
60 samples per hour

Menu
Review, Test, Maintenance, QC, Setup, Shutdown, Prime reagents, System diagnosis, Aperture rinse, Soak and Rinse, Calibration, instrument config

Display
8" color touch screen display

Sample volume
Predilute:     20µL
Whole blood:  10µL

Aperture Diameter
WBC          80µM
RBC/PLT      70µM

Carryover
WBC≤1.5%,RBC,HGB<1.0%, PLT≤2%

Input / Output
1 RS232, 1 keyboard , Mouse
4 USB, LAN

Printout
Built-in thermal printer

Operating Environment
Temperature:     10-35ºC
Humidity:         ≤90%

Power Requirement
AC 100-240V 50/60Hz

Dimension
Instrument:440mm(H) x 350mm(W) x 440mm(D)
Package: 570mm(H) x 520mm(W) x 600mm(D)

Net Weight
Net:17kg    Gross:21.8kg




Our certificate:





If you want more type, please contact us:



About us:

MEDSINGLONG GLOBAL GROUP CO., LTD    (MSL)  engages in selling medical equipments more than 10 years, such as Ultrasound machine,Xray machine,Blood analyzer,Biochemical analyzer,veterinary equipment,Radiation protection equipment and so on. We are Supplying all kinds of medical equipments in high quality with competitive price. Whether the hospital or clinic,or for personal use,you can find your own favorite products. Therefore, lowest cost of your medical devices with good service and high quality is our goal.No the best,only better!We are ready to serve you!
