• Model NO.：SYD-30011
• OEM：Yes
• Automaticity：Semi-Automatic
• Transport Package：by Wooden Case
• Specification：350mm*360mm*365mm
• Trademark：Shangyi
• Origin：China
• HS Code：9027809900
• Production Capacity：999,Month

Basic Info.

Model NO. SYD-30011 OEM Yes Automaticity Semi-Automatic Transport Package by Wooden Case Specification 350mm*360mm*365mm Trademark Shangyi Origin China HS Code 9027809900 Production Capacity 999/Month

Product Description

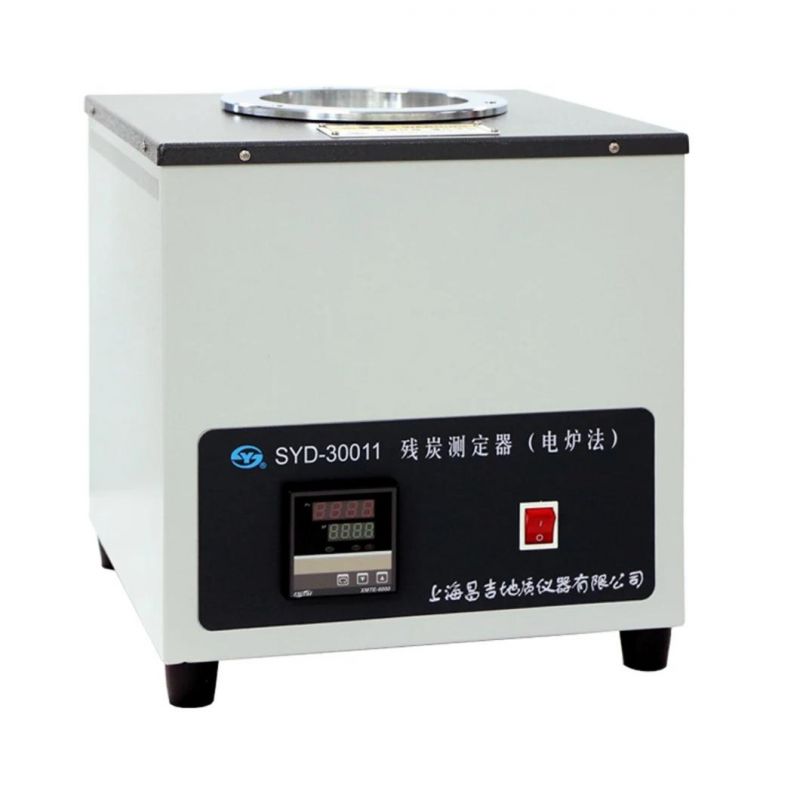

SYD-30011 Carbon Residue Tester(Electric Furnace Method)
Summary
  The instrument is designed and made as per industrial standard of People's Republic of China SH/T 0170 and ASTM D524 Test Method for Carbon Residue of Petroleum Products-electric furnace method. It is suitable to determine the carbon residue of lubricating oils, heavy liquid fuels and other petroleum products.

I. Main technical features
1. The instrument adopts desktop configuration. The heating furnace and controller are assembled to all-in-one machine. Small dimension and easy to use.
2. The max temperature of heating furnace can reach 520ºC. It adopts digital temperature controller. The temperature control accuracy can reach ±5ºC.
3. It can do four sample determinations concurrently. The test efficiency is high.

II. Main technical specifications
1. Power supply:   AC(220±10%)V, 50Hz
2. Heating mode:   Electric furnace
3. Heating power:   1150W(230W×5)in total
4. Temp. Control range:   (0~520)ºC
5. Temp. Control accuracy:  ±5ºC
6. Test furnace:  One furnace with four holes
7. Ambient temperature:  Room temperature~ 35ºC
8. Relative humidity:  ≤85%
9. Maximum power consumption:  1300W
10. Dimension:  350mm×360mm×365mm
 III,SYD-30011 Carbon Residue Tester(Electric Furnace Method) Accessories and Documents List

No.	Name	Unit	Qty	Memo
1	SYD-30011 Carbon Residue Tester(Electric Furnace Method)	Set	1
2	Steel bath cover	Piece	4
3	Porcelain crucible(18ml)	Piece	12
4	Cover of crucible	Piece	4
5	Fuse 15A(Ф5×20)	Piece	2
6	Tweezers pliers(Length 250 mm)	Pair	1
7	Operation manual	Piece	1
8	Temperature control device usage manual	Piece	1
9	Quality certificate	Piece	1
10	Product warranty card	Piece	1

 IV,SYD-30011 Carbon Residue Tester(Electric Furnace Method)'s Reagent and Auxiliary Equipments

No.	Name	Specification	Quantity	Memo
1	Fine sand		500g
2	Glass drying dish	240mm or 300mm	1 piece
3	Desiccant	500g	1 box
4	Ten thousandth-Balance	Range 200g	1 set

Notes:
1,The reagent and equipments for installing the instrument are supplied by end-users themselves.
2,The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.
3,PLS read the operation manual and industry standard before using the instrument.
