Digital Nondestructive Tree Detector Portable Plant Flaw Tester

Kunshan Agritop Technology Co., Ltd.
  • The Speed of Stress Wave：0-3000m,S
  • Power Source：4.2V
  • Work Time：10h (Continuous Work)
  • Weight ( Tool Box)：Less Than 8kg
  • Sensors：Sensors
  • Transport Package：Standard Sea Freight Package

Base Info

  • Model NO.：TOP-900
  • Specification：8kg
  • Trademark：OEM
  • Origin：Zhejiang
  • HS Code：9031809090
  • Production Capacity：500PCS ,Month

Description

Features


1. The number of sensors up to 12.

2. The transfe rtime of stress wave can be displayed. During the detecting,the tested data can be observed in real-time.

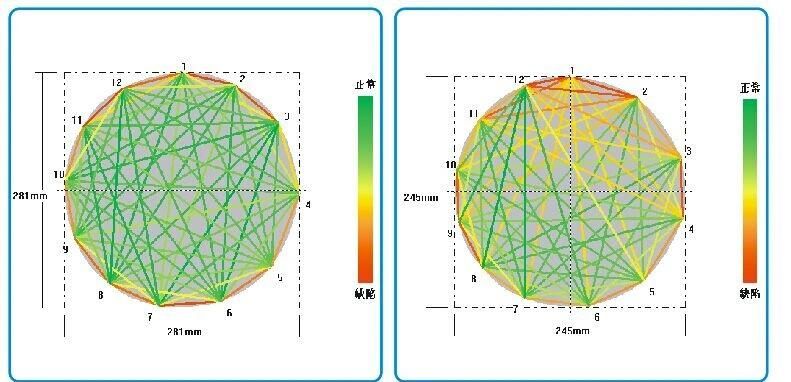

3.The imaging software is able to record the transfer data of stress wave during each detect point,the segment diagram of stress wave propagation line and the Wood interior defect image.

4. The detected report can be printed and the wood cross section image can be output.



Digital Nondestructive Tree Detector Portable Plant Flaw TesterDigital Nondestructive Tree Detector Portable Plant Flaw Tester



Technical parameters


The Speed of Stress Wave0-3000m/sThe Transfer Time of Stress Wave0<t<65535μsThe resolution of measurement time1μsPower Source 4.2V Li-ion batteryWork Time10h (continuouswork)Operation EnvironmentTemperature:-10~40ºC, Humidity:≤90%SensorsLow noise piezoelectric sensorWeighttool box≤8kg,  instrument box≤4kg
