• Model NO.：TZS-pHW
• HS Code：90318090
• Production Capacity：100 Sets , Week

Basic Info.

Model NO. TZS-pHW HS Code 90318090 Production Capacity 100 Sets / Week

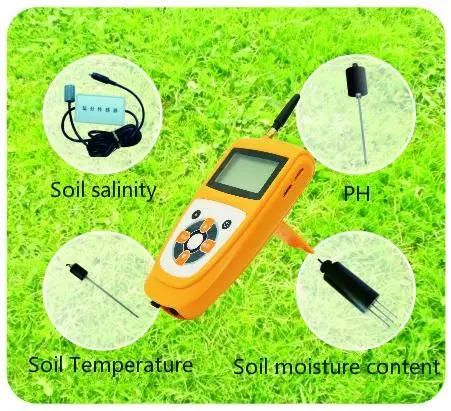

Product Description



Soil Temperature	Unit: °C Range: -40°C~100°C Accuracy: ±0.5°C Sensor length: >=25cm Resolution: 0.1°C
Soil moisture	Unit: %(m³ ) Range: 0~100% Response time: ≤ 2s Relative error: ≤3% Standard cable length: 1.5m (customized: up to 1000m) Optional: Measuring the moisture content of Deep soil, soil auger is recommend .
Soil salinity	Range: 0~19.99ms/cm Sensors can be buried into soil.
Soil pH	Range: -0-14 Accuracy: ±0.5

Characteristic

Handset:

• Small and exquisite, easy to carry and LCD display;
• Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
• Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
• Large Storage capacity
• Data can be read on handset and also import to PC.
• Power-off memory function: data already saved in SD card won't lose when lose power.
• Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
• Auto detection: when sensor connects to handset, you can search different sensor.
• RS485 wire communication, sensor communication cables could reach about 100 meters.
• Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
• GPS positioning is optional function.


Software:

• Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
• Coloring the overrun area function, it is visual display.
• Save the data in EXCEL format as a copy.
• Be able to view period of parameter or graph, and can be printed.
• All curvilinear coordinates can be set and move, which make analysis easier.

Handset technical parameters:


• Storage capacity: almost up to 30,000 groups in handset, and it is standard equipped with 4G Micro SD.
• Data-collection interval: 5min~99hour
• Working power supply: 8.4V lithium battery

Working current: stand-by power consumption 10mA, working power
