• Model NO.：TZS Series
• Off Mode：Automatic
• OEM：Yes
• Transport Package：Carton
• Origin：China
• HS Code：90318090
• Production Capacity：100 Sets , Week

Basic Info.

Model NO. TZS Series Off Mode Automatic OEM Yes Transport Package Carton Origin China HS Code 90318090 Production Capacity 100 Sets / Week

Product Description

Model list


Model	Function
TZS-1K	Direct measure soil moisture content, and save in handset
TZS-2X	Measure soil moisture content, soil temperature, and save in handset
TZS-3X	Adding measure atmospheric temperature function based on TZS-2X
TZS-5X	Adding measure atmospheric moisture, dew point based on TZS-3X

Characteristics

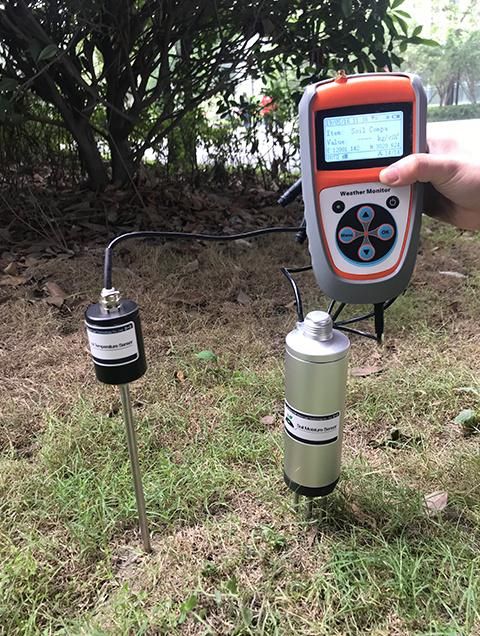

Handset:

• Small and exquisite, easy to carry and LCD display;
• Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
• Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
• Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
• Data can be read on handset and also import to PC.
• Power-off memory function: data already saved in SD card won't lose when lose power.
• Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
• Auto detection: when sensors connect to handset, you can search different sensor.
• Synchronous detection: 32 channels to detect same time as you combine.
• RS485 wire communication, sensor communication cables could reach about 100 meters.
• Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.


Software


• Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
• Coloring the overrun area function, make it visual display.
• Save the data in EXCEL format as a copy.
• Be able to view period of parameter or graph, and can be printed.
• All curvilinear coordinates can be set and move, which make analysis easier.

Handset technical parameters


• Storage capacity: almost up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
• Data-collection interval: 5min~99hour
• Working power supply: 8.4V lithium battery
• Working current: stand-by power consumption 10mA, working power consumption according to the configuration.

Sensors technical parameters

Soil temperature:                Atmospheric moisture:
Unit: ° C                        Range: 0~100%RH
Range: -40°C~120 °C              Accuracy: ±3%RH
Accuracy: ±0.5°C                 Resolution: 0.1%RH

Atmospheric temperature:         Dew point:
Range:-40°C~100 °C               Range: -40°C~120°C
Accuracy: ±0.4 °C                 Accuracy:  ±0.4°
Resolution: 0.1°C                 Resolution:  ±0.1°C

Soil moisture content:
Unit: %( m³)
Range: 0~100%
Response time: ≤ 2s
Relative error: ≤3%
Standard cable length: 1.5 (customized: up to 1000m)
Optional: Measuring the moisture content of Deep soil,
Soil auger is recommended.
