• Model NO.：RLD-382P
• Transport Package：Carton
• Trademark：Neutral Packaging
• Origin：China
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. RLD-382P Transport Package Carton Trademark Neutral Packaging Origin China Production Capacity 1000PCS/Month

Product Description

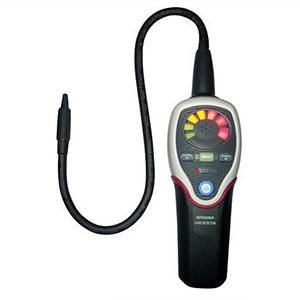

RLD-382P Refrigerant Halogen Leak Detector CFCs HCFCs HFCs HVAC Checker



FEATURES
Refrigerant Leak Detector is a perfect tool for maintaining the air-condition or a cooling system with compressor and Refrigerant.This unit uses a newly developed semi-conductor sensor which is extremely sensitive for variety of general used Refrigerant.
• Microprocessor Control with advanced digital signal processing.

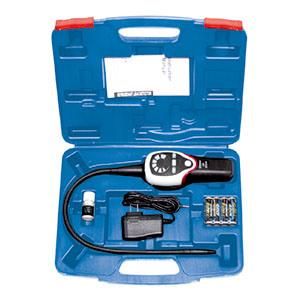

• Carrying case included.
• Multi color visual display.
• 15.5″(40cm) flexible stainless probe.
• High-median-Low leak sensitivity selector.
• Rsference Leak source included.
• Low battery indication.
• Ambient concentration reset.
• Semiconductor gas sensor.
• Long-life,DC brushless fan.
• Detection of R-134a,R-410A,R-407C,R22...
• Automatic zero and background compensation.
• Freon gas.
• AC Adapter:5V 0.5A

Sensitivity:

Refrigerant	H	M	L
R-22,134a	3g/year	15g/year	30g/year
R-404A,407,410A	4g/year	20g/year	40g/year



Alarm Method	Buzzer,Tricolor LED bar Indicator.
Power Usage	4 AA size(6V DC)Alkaline Batteries
Snake Tube length	40cm(15.5″)
Dimension/Weight	137x66x56mm(approximately 400g)
Battery Line	Approxomately 7 hours normal use.
Auto Power OFF	10 minutes
Altitude	<2000M(6500′)
Disable Auto Power OFF	Press"ON/OFF"button then power on the meter
Warm-up Time	Approximately 45 seconds
Operating Temperature & Humidity	0~40ºC<80% RH
Storage Temperature & Humidity	-10~60ºC,<70%RH
Detectable Gases	CFCs:R11,R12,R13;HCFCs:R22,R502,R500;HFCs:R134a,R123,R125,R23,R404A,R407C,R410A and other halogen based compounds
