• Model NO.：DRS-TY-9510
• Operating Temperature：(10 ~ 30)°c
• Humidity：≤ 85%
• Transport Package：Stand Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. DRS-TY-9510 Operating Temperature (10 ~ 30)°c Humidity ≤ 85% Transport Package Stand Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

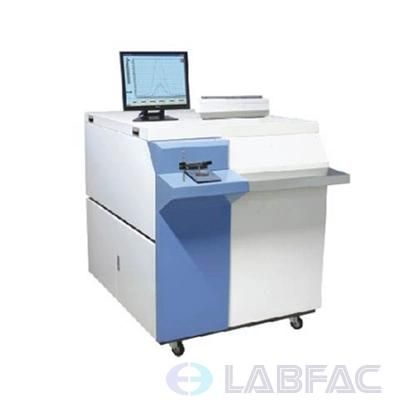

Item: Photoelectric Direct Reading Raman Spectrometer /Spectrometer for Metal Analysis
Model: DRS-TY-9510
 Product Description:
It adopts the latest international technology, and uses computer to control high-energy excitation light source, set analysis conditions, photoelectric automatic receive, channel high-voltage, data acquisition and results processing. The instrument can automatically complete the establishment of working curves, the calculation of sample concentration and the analysis of test results and conduct sample analysis in about 30 seconds. It is featured with low limit of analytical detection, high accuracy, and high speed, stable and reliable operation. The product is used for material analysis and research in areas like metallurgy, casting and machinery.

Main Technical Parameters:
l Detection matrix (multi-base): sample analysis of Al, Cu, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag and other alloys.
l Analysis channel (multi-channel): can be expanded to 45 channels.
l Analysis wave band (wide range): 200nm-650nm
l Detection time (short): according to different sample types, generally less than 30 seconds.
l Optical room (fine constant-temperature): 38 °C ± 0.2 °C
l Power supply: single-phase power of grounding protection.
l Voltage: 220VAC, Frequency: 50Hz, Service power: 1.8KVA
l Environmental conditions: operating temperature: 10-30 °C, Storage Temperature: 0-45 °C, Humidity: ≤ 85%
l Argon gas: purity: 99.999%

Main Configurations and Characteristics:
1. The optical system adopts blazed holographic grating to improve the analytical precision of the instrument and detection sensitivity.
2. Constant-temperature device is installed in optical room and electronic system that can prevent the instrument from influence of environmental temperature fluctuation.
3. It adopts overall exit slit that has the advantages of quick, convenient and accurate correction of optical system, and it is more convenient for users to add analysis channels.
4. One-way discharge, high-energy pre-spark technology, adjustable discharge parameters and computer control;
5. By operating the software it can automatically complete tracing. Through curve displaying, users can read the peak position directly and accurately. The precision is within ± 5um.
6. The software is featured with full functions, simple operation and reliable running, all-English interface. Through the working curves pre-made by the instrument, users can analyze the elements and their content of prepared sample accurately and quickly.

1. Standard Configuration

Name	Model	Quantity	Unit
Spectrometer body (12 channels)	TY-9510 (non-vacuum)	1	set
Brand computer	Latest Configuration	1	set
Laser printer	Samsung	1	set
Channel		1	piece
Spare parts	Refer to Accessory 1	1	set

2. Optional Accessories

Name	Model	Quantity	Unit
High-precision stabilized voltage supply	Magnetic saturation and power supply	1	Set
Argon purifier		1	set
Mini-lathe		1	set
Control sample for measuring samples		1	piece
Mini air conditioner		1	set

Accessory 1
List for Spare Parts


Number	Name	Specifications	Quantity	Unit
1	Software disk for operation	Disk	1	Piece
2	Fuse	10A	1	Piece
3	Fuse	2A	2	Piece
4	Tungsten electrode	W1	1	Piece
5	Polar Pitch	4.0mm	1	Piece
6	Oxygen reducing valve	0-0.4MPa	1	Piece
7	Copper pipe or stainless steel pipe	6mm	5	Piece
8	Combined tools		1	Piece
9	Seal ring		1	Piece
10	Instruction manual		1	Piece
11	Certificate		1	Piece
12	Patch board		1	Piece
13	Red Bead		10	Piece
14	Brush electrode		1	Piece
