Analysis Instrument

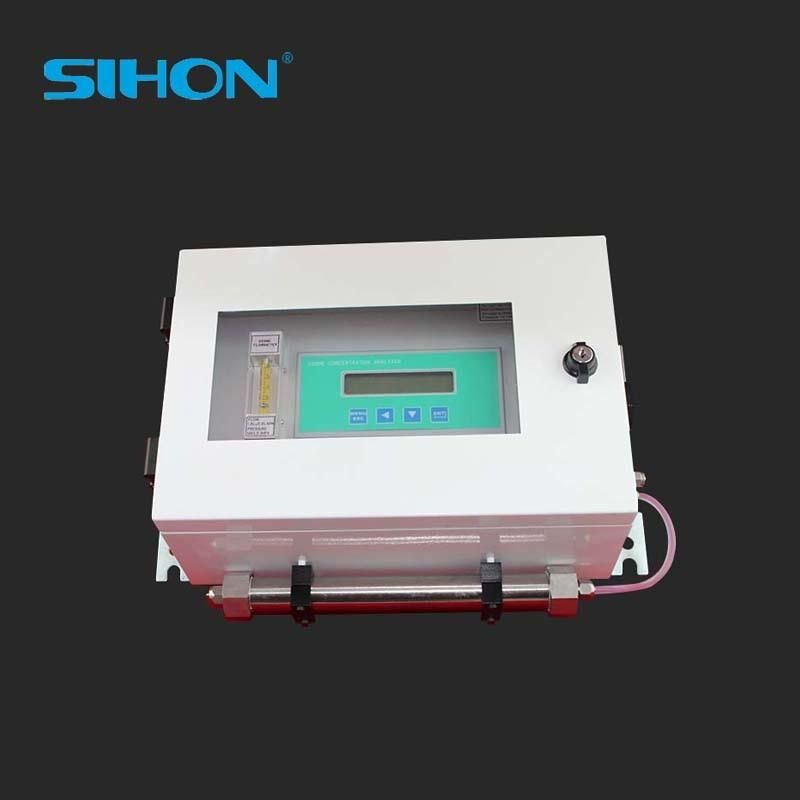

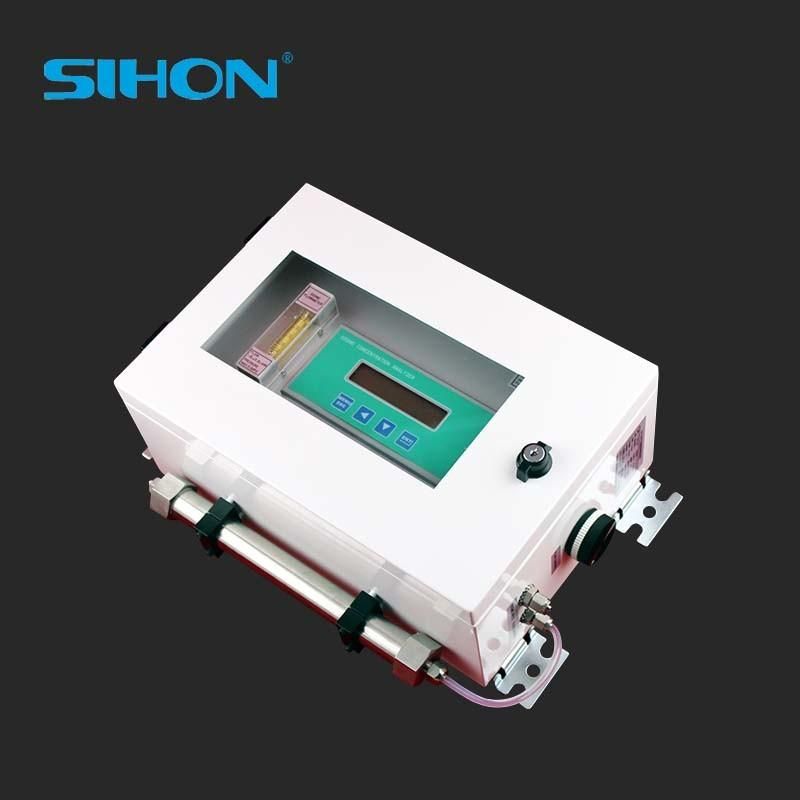

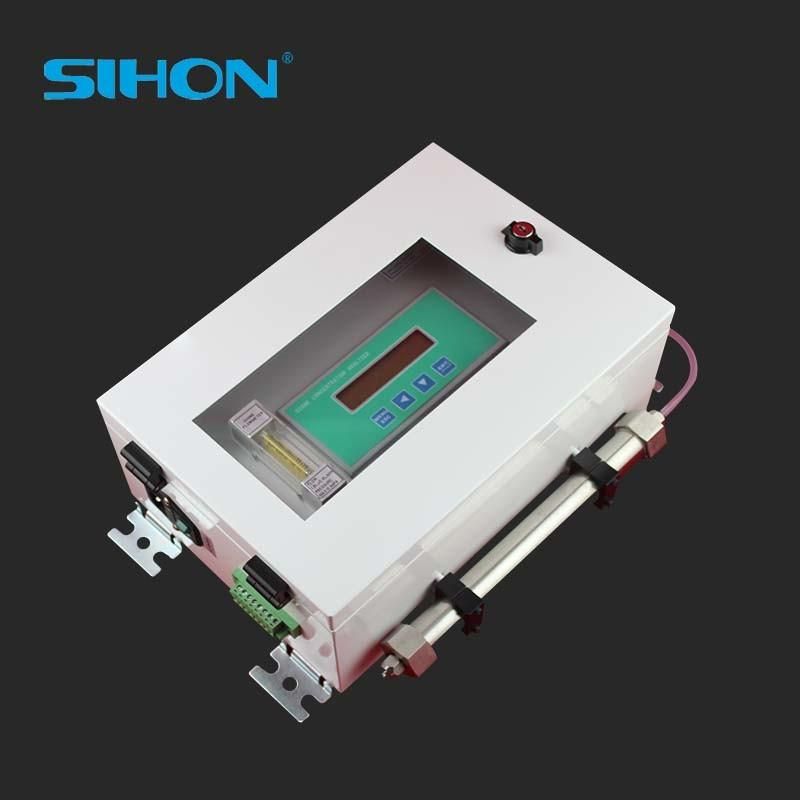

UV-2200c High Precision Ozone Gas Analyzer for Ozone Concentration Test

Anhui Morhon Technology Co., Ltd.
  • After-sales Service:1 Year
  • Warranty:1 Year
  • Brand:Sihon
  • Customized:Non-Customized
  • Portable:Portable
  • Certification:CE

Base Info

  • Gas:O₃
  • Type:Electrochemical Gas Analyzer
  • Transport Package:Cartons
  • Specification:220v,110v
  • Trademark:SIHON
  • Origin:China

Description

Basic Info.

Gas O₃ Type Electrochemical Gas Analyzer Transport Package Cartons Specification 220v/110v Trademark SIHON Origin China

Product Description

UV-2200c High Precision Ozone Gas Analyzer for Ozone Concentration TestUV-2200c High Precision Ozone Gas Analyzer for Ozone Concentration TestUV-2200c High Precision Ozone Gas Analyzer for Ozone Concentration Test
Technical parameters and installation
Detection principle: Double beam UV absorption method
Measuring range: 0-200 mg / L (expandable 0-350mg / L);
Display Resolution: 0.1mg / L;
Enter the gas flow rate: 1.2L ± 0.2L / min;
Input pressure: <0.1Mpa
Zero drift: <0.2% FS
Response time: <1S
Sampling port diameter: Φ6 (6mm * 4mm)
Detection accuracy: ± 1% of reading
Communication: RS-485;
Output: Differential 4-20mA, linear;
Weight: 6kg;
Power Supply: AC 220V;
Size: 330 * 230 * 160mm;
NOTE: 1mg / L = 1mg / L = 467PPM
Note: This section detector standard configuration corrosion meter, ozone catalytic converters.
