• Model NO.：FST100-2201
• Voltage：12V DC 24V DC
• Transport Package：S
• Trademark：Firstrate
• Origin：Changsha China
• HS Code：9015800090
• Production Capacity：50000pieces,Month

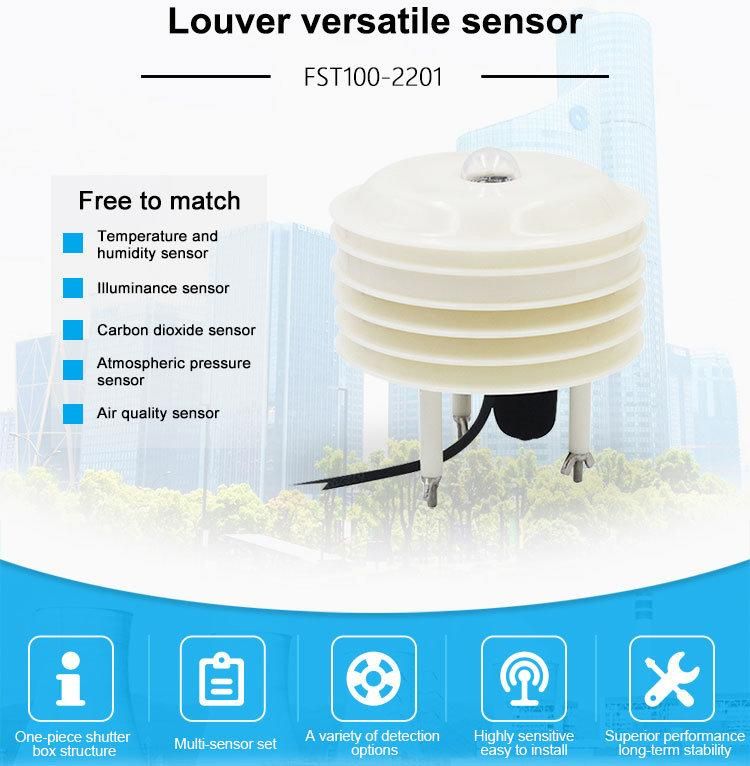

Product IntroductionThe FST100-2201 Weather Station barometer thermometer 4-20ma co2 sensor humidity is a special sensor designed for environmental monitoring in meteorological or agricultural production processes. The built-in core sensors are all imported devices. The instrument can continuously monitor one or more environmental parameters such as carbon dioxide gas concentration, illuminance
and ambient temperature and humidity, and each parameter value is converted into a MODBUS-RTU standard electrical signal for transmission to an associated device.Product Features

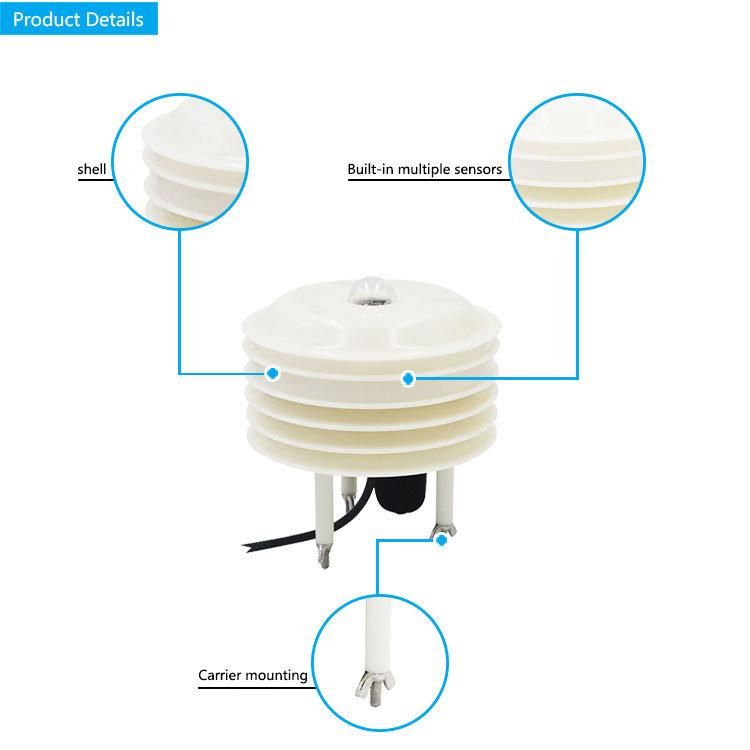

♦ One-piece shutter box structure
♦ A variety of monitoring options
♦ Built-in high performance microprocessor
♦ High sensitivity and easy installation

♦ Superior performance and long-term stability

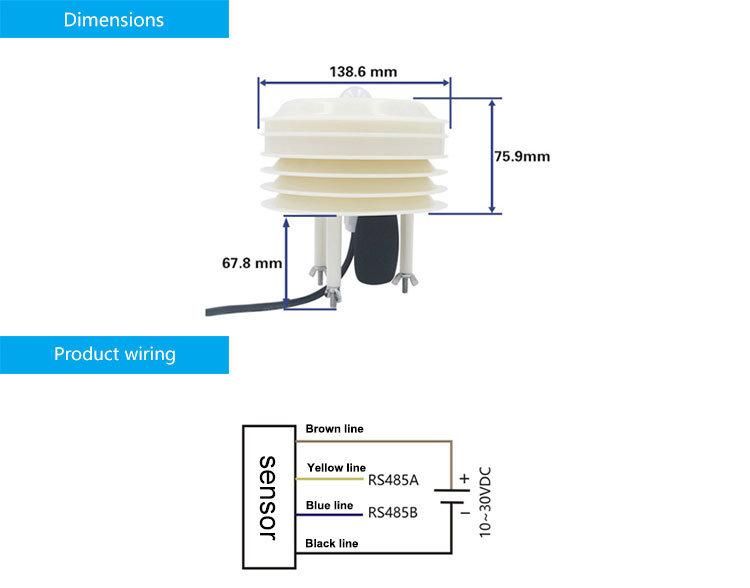

 Product Parameters Temperature & humidityillumination co2 Measuring RangeTemperautre -40-80°C0-65535 Lux0-5000ppm Humidity:0%RH-100%RH0-200000 Lux Output SignalRS485 (Modbus protocol)RS485 (Modbus protocol)RS485 (Modbus protocol)Power Supply10-30VDC10-30VDC10-30VDCAccuracyTemperauture±0.5ºC(25ºC)±7%(25ºC)±40ppm +3%FS(25ºC) Humidity:±3%RH(5%RH-95RH, 25ºC)Long term stabilityTemperauture ≤0.1ºC/year≤0.5ºC/year≤30ppm/year Humidity ≤0.1%RH/year  Response timeTemperauture <15/S(1m/s wind speed) 0.1 second <10/S (1m/s wind speed)  Atmospheric pressure Air quality Measuring range 0-120KpaPM2.5/PM10 Power consumption ≤0.5W 0.4W Output signal RS485 (Modbus protocol) RS485 (Modbus protocol) Power supply 10-30VDC 10-30VDC Accuracy ±1.5Kpa(25ºC)  Long term stability 0.1Kpa/year  Response time ≤1 second <90/second Working temperature Temperautre -40-80°C                  Temperautre -40-60°C     Humidity:0%RH-80%RH               Humidity:0%RH-80%RHResolution                                                       1ug/m3 Preheat time                                                        2min
 Company Information

About Hunan Firstrate Sensor Co.,ltd
Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control. FST100-2201 Weather Station barometer thermometer 4-20ma co2 sensor humidityMore About Firstrate Company
Firstrate is committed to the research & development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique ,CAN ( Controller Area Network) technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 12 national invention patents, 30 plus utility-model patents. And have got the certificates of CMC, CE, Safety & Flame-proof certification and ROHS. FST100-2201 Weather Station barometer thermometer 4-20ma co2 sensor humidity

Our Certifications

Our Services

Price, Package, Service

1, Price : EXW,  FOB,  CFR  Changsha

2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

Packing:standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance

Contact us

  Tel: +86-731-86171990   http://firstsensor.en.made-in-china.com
