• Specification：D32*3, D10*1, 25.4*2
• Trademark：ICC
• Origin：Qinhuangdao
• HS Code：9001909090
• Production Capacity：20000pieces,Month

Basic Info.

Specification D32*3, D10*1, 25.4*2 Trademark ICC Origin Qinhuangdao HS Code 9001909090 Production Capacity 20000pieces/Month

Product Description

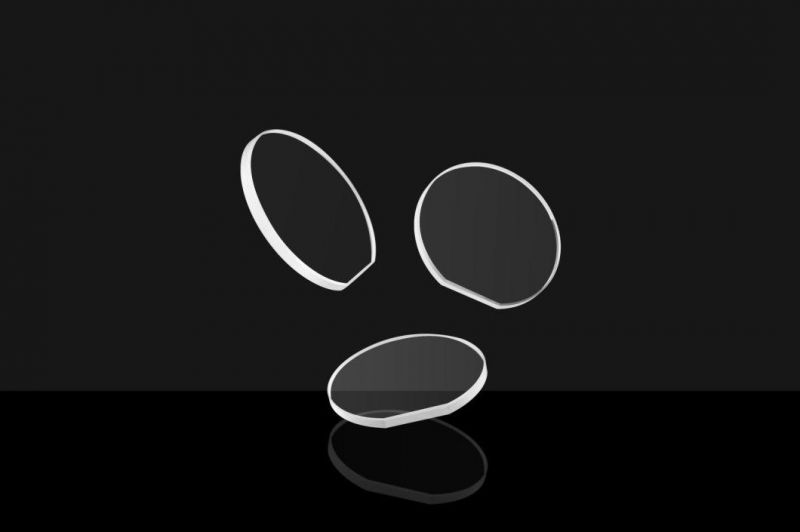

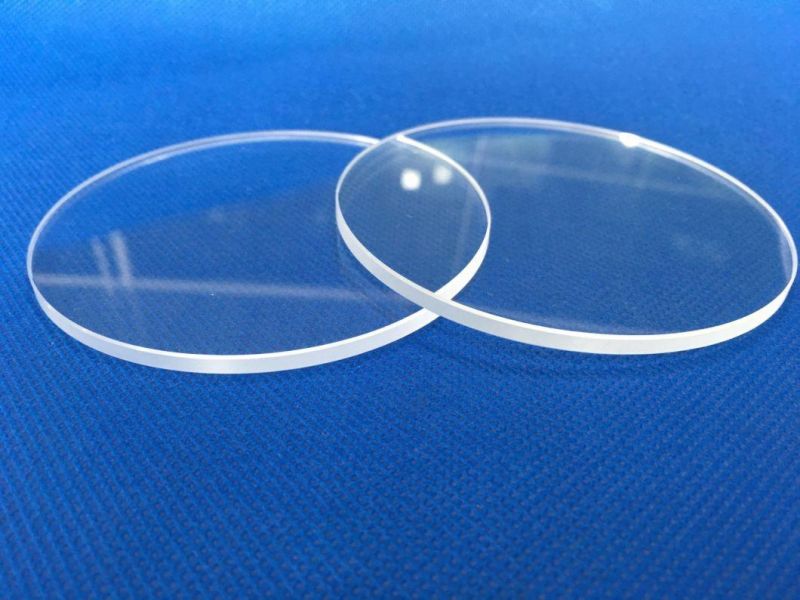

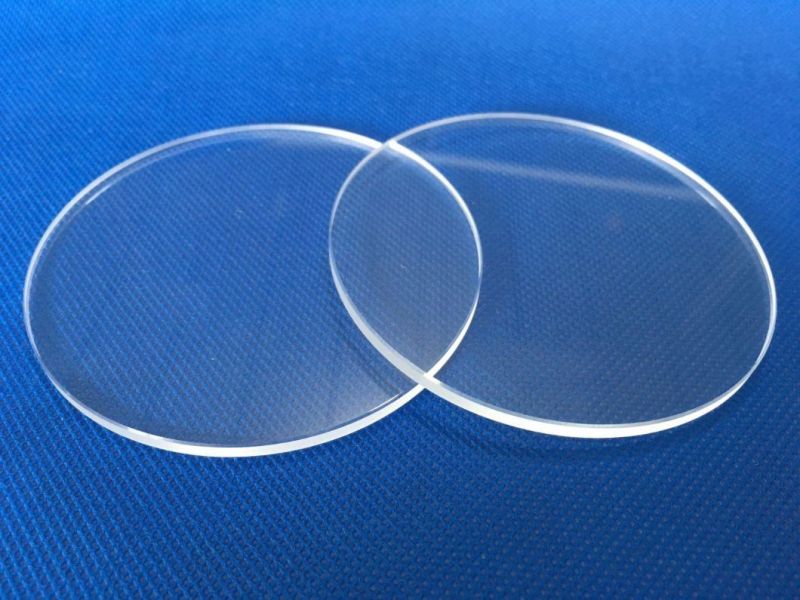

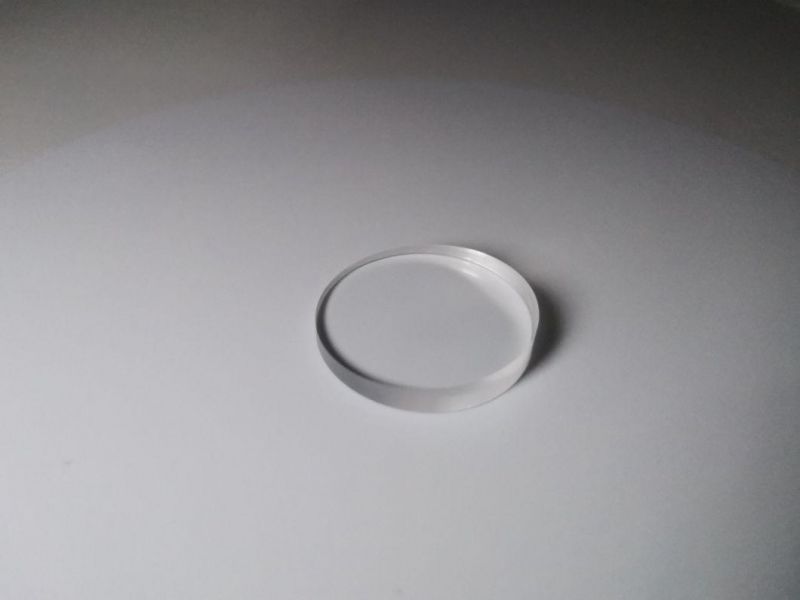

BaF2 (Barium Flouride)

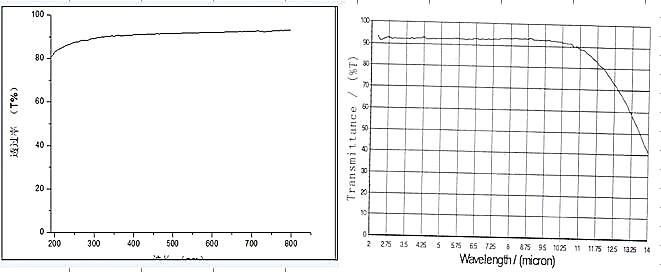

BaF2 is transparent from the ultraviolet to the infrared, from 150-200nm to 11-11.5μm, and can be used as a material to make optical components such as lenses. It is used in windows for infrared spectroscopy, in particular in the field of fuel oil analysis. Its transmittance at 200nm is relatively low (0.60), but at 500nm it goes up to 0.96-0.97 and stays at that level until 9μm, then it starts falling off (0.85 for 10μm and 0.42 for 12μm). The refractive index is about 1.46 from 700nm to 5μm. Barium Flouride is used as a preopacifying agent and in enamel and glazing frits production. It is also used in metallurgy, as molten bath for refining aluminum.

Intrinsic Crystal Technology Co., Ltd are the manufacturer & processor of Calcium Fluroide, with ROHS environmental protection requirements.

We can provide deep ultraviolet ( excimer level ), ultraviolet and infrared level calcium fluoride materials and components.

We have all kinds of orientation, such as <111>,<110>,<100> etc.

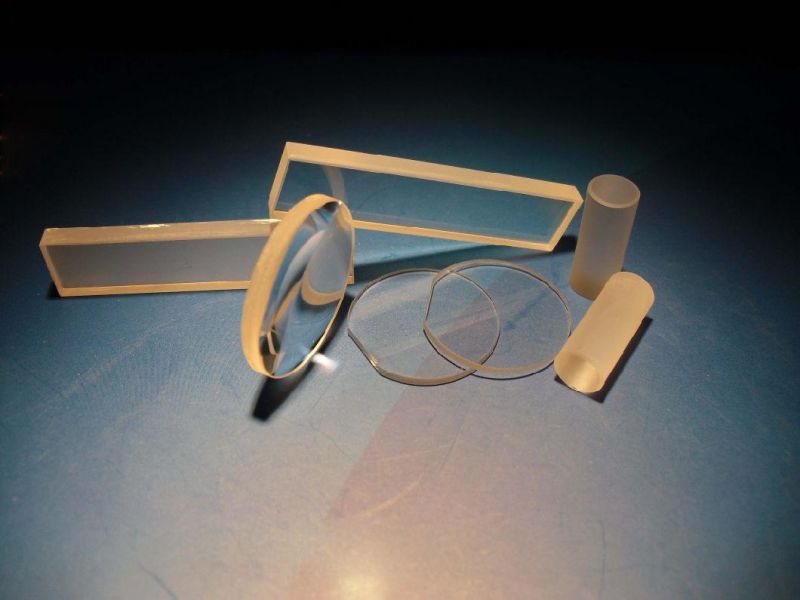

We have all shapes of material, such as round rod,square plate,step,prism,wedge and so on.

We have all kinds of conventional plate,spherical and wedge in our stock.

We have the size of 4mm-200mm mono crystal and poly crystal materials and optical element.



Large Number Stocks


CASE No.	Material	Size(+0.0/-0.1;+0.1/-0.1)	technical data-S/D,Flatness,Parallelism:Bevel:Chips	Shape	10ea	50-100ea
BAF2-RW<1-10>	IR-POLY	5*1	80-50,N,3,0.35,0.35	round	3.5	2.5
BAF2-RW<1-10>	IR-POLY	6*1	80-50,N,3,0.35,0.35	round	3.5	2.5
BAF2-RW<1-10>	IR-POLY	6.8*1	80-50,N,3,0.35,0.35	round	3.5	2.5
BAF2-RW<1-10>	IR-POLY	7*0.5	80-50,N,3,0.35,0.35	wafer	3.5	3
BAF2-RW<1-10>	IR-POLY	7.5*1	80-50,N,3,0.35,0.35	round	3.5	3
BAF2-RW<1-10>	IR-POLY	8*1	80-50,N,3,0.35,0.35	round	3.5	3
BAF2-RW<1-10>	IR-POLY	9*0.5	80-50,N,3,0.35,0.35	wafer	5	4
BAF2-RW<1-10>	IR-POLY	9.5*1	80-50,N,3,0.35,0.35	round	3.5	3
BAF2-RW<1-10>	IR-POLY	10*0.5	80-50,N,3,0.35,0.35	wafer	5	4
BAF2-RW<1-10>	IR-POLY	10*1	80-50,N,3,0.35,0.35	round	4	3
BAF2-RW<1-10>	IR-POLY	10*1.2	80-50,N,3,0.35,0.35	round	4	3
BAF2-RW<1-10>	IR-POLY	10*2	80-50,N,3,0.35,0.35	round	5	4

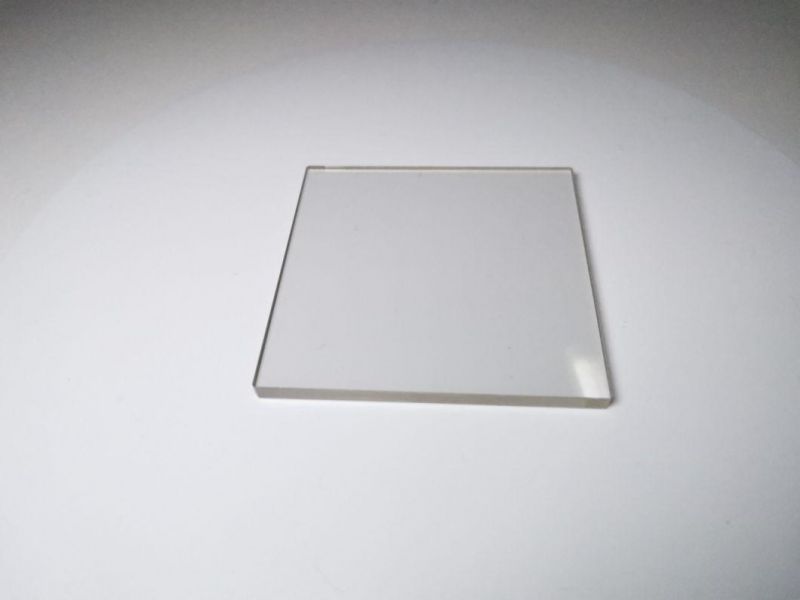

BAF2-RW<1-10>	IR-POLY	7*7*2	80-50,N,3,0.35,0.35	square	7	6
BAF2-RW<1-10>	IR-POLY	10*10*1	80-50,N,3,0.35,0.35	square	7	6

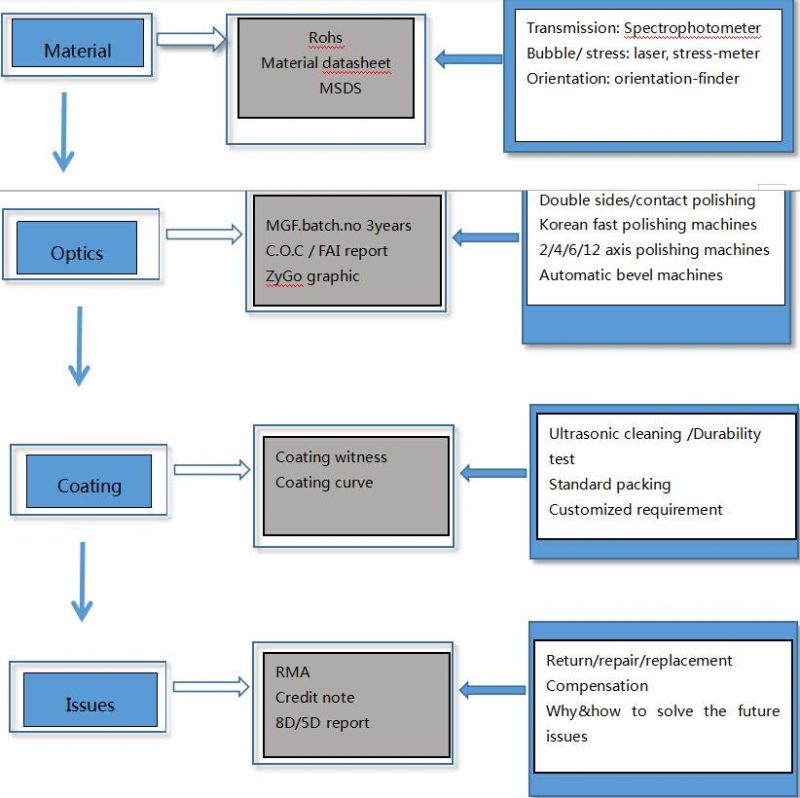

Quality Control

Company summary: Qinhuangdao Intrinsic crystal technology co.,ltd
Date created: 2008 years Employees: 140workers plant Size(sq.m): 15,000
Company type: private Trademark: ICC Annual sales: 8-10$Million
D-U-N-S number:53-098-3523 Certificates: ISO9001/14001/18001 import/export status: yes
Industry: crystal material and precision optics Tax.ID: 91130301678536714D

Business Description
ICC is focused on crystal material growth, precision optics fabrication, and coating service to the world market.
growth material: NO.1 for CaF2/BaF2/MgF2/LiF, leading supplier for silicon.
Precision optics: windows, spherical lenses, prism, UV-IR optics
Coating service: 6 sets coating machines by IAD technology to make mirror, filter, beam splitter, polarizer
testing devices: ZyGo, AFM, FTIR microscope, 5sec goniomenter, reflective & transmission eccentric instrument

Business advantage
Crystal material of CaF2, BaF2, MgF2, LiF, and Silicon
Plano optics and IR/UV lenses sets size for D3.0-300mm.
We can supply free charges samples and build inventory for repeated or large orders
