• Model NO.：ICP-TY-9900
• Precision：Relative Standard Deviation Rsd ≤ 2%
• Linear Range of Measurement：(Correlation Coefficient) ≥ 0.9995%
• Transport Package：Stand Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. ICP-TY-9900 Precision Relative Standard Deviation Rsd ≤ 2% Linear Range of Measurement (Correlation Coefficient) ≥ 0.9995% Transport Package Stand Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

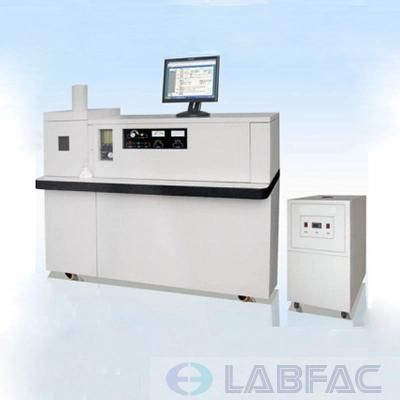

Item: Inductively Coupled Plasma Emission Spectrometer,ICP
Model: ICP-TY-9900
Application:
It can be used for sample analysis of machinery, steel, geology, metallurgy, rare earth and magnetic materials, environment, medical industry, biology, marine, petroleum, new chemical materials, nuclear industry, agriculture, food inspection, water quality and other fields. It can quickly and accurately detect about 70 kinds of major and trace elements.

Technical parameters:
Analysis speed: 10 elements per minute
Precision: relative standard deviation RSD ≤ 2%
Stability: relative standard deviation RSD ≤ 3% (one-hour measurement)
Linear range of measurement: (correlation coefficient) ≥ 0.9995%
Low detection limit: some common ones are listed in the following table

Detection limit of 36 elements (ug / ml)

Element	La	Ce	Pr	Nd	Sm	Eu	Ga	Tb	Dy
Wave Length (nm)	408.672	413.765	414.311	401.225	360.946	381.967	342.247	350.917	353.170
Detection Limit	3.0	5.0	5.0	5.0	10.0	1.0	10.0	3.0	3.0
Element	Ho	Er	Tm	Yb	Lu	Y	Sc	Ta	Nb
Wave Length (nm)	345.600	337.271	313.126	369.419	261.541	371.050	335.373	226.230	316.340
Detection Limit	3.0	3.0	3.0	1.0	3.0	1.0	1.0	5.0	5.0
Element	Mn	Mg	B	Zn	Co	Si	Ni	Cd	Fe
Wave Length (nm)	257.610	279.553	249.773	213.856	228.616	251.611	232.003	226.502	239.562
Detection Limit	3.0	1.0	10.0	3.0	3.0	10.0	5.0	3.0	3.0
Element	Ca	Mo	V	Be	Ti	Cu	Cr	Al	Zr
Wave Length (nm)	393.366	281.615	310.230	313.041	344.941	324.754	267.716	396.152	343.823
Detection Limit	1.0	5.0	5.0	1.0	3.0	3.0	5.0	5.0	5.0

Radio Frequency generator (RF)
Inductive feedback self-oscillating circuit, coaxial cable output
Match tuning, power feedback to take automatic closed-loop control

Sample introduction system
Three concentric quartz pipes

Scanning optical splitter
Ion etching holographic gratings with the focal length of 1000mm/750mm

Main features:
1. RF output with high stability, stable light source, and low detection limit with the lowest up to PPb (part per billion).
2. Wide linear range of working curves, up to 5-6 magnitude orders.
3. Simultaneous analysis of multiple elements, fast and with wide application range. It can analyze almost all the metal elements and part of the non-metal elements on periodic table of elements.

Software
This type ICP spectrometer adopts analysis operating software, which is convenient and powerful and can conduct simultaneous measurement, data processing, calibration and data output, etc.

List for Spare Parts

Name	Quantity	Name	Quantity
Manual	1	quarter bend	2
Power line	1	fog cabinet	2
Water Pipe 10 * 6.5	15 meter	Fog chamber cover	1
Gas Pipe4*6	15 meter	Atomizer	2
Gas pipe 4 * 6	2 meter	Water-sealed bottle	2
sewer pipe 6*8	1 meter	capillary	2
wind-cone	1	quarter bend clamp	1
Safety device 2A	2	fog cabinet seal ring	2
ICP Analysis software	1	Power strips	1
Power line for host control	1
