• Model NO.：CM-08B
• Test Standard：ASTM D4308,ASTM D2624,ISO 6297
• Measuring Range：0-19999PS,M
• Accuracy：2%+2PS
• Size：100*35mm
• Weight：0.5kg
• Color：White
• Application：Measure Electrical Conductivity of Oil
• Main Unit：100*35mm
• Electrode：φ14×140mm
• Power Supply：in-Built 6f22 Type 9V Battery
• Working Condition：Temperature: 0~+40ºC
• Accuracy of Conductivity Cell：1.00,M±5%
• Transport Package：Carton
• Specification：Small
• Trademark：AI
• Origin：China
• HS Code：9027809990
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. CM-08B Test Standard ASTM D4308,ASTM D2624,ISO 6297 Measuring Range 0-19999PS/M Accuracy 2%+2PS Size 100*35mm Weight 0.5kg Color White Application Measure Electrical Conductivity of Oil Main Unit 100*35mm Electrode φ14×140mm Power Supply in-Built 6f22 Type 9V Battery Working Condition Temperature: 0~+40ºC Accuracy of Conductivity Cell 1.00/M±5% Transport Package Carton Specification Small Trademark AI Origin China HS Code 9027809990 Production Capacity 100 Sets/Month

Product Description

Introduction
This oil conductivity meter CM-08B is mainly used to determine conductivity of light petroleum,such as gasoline,kerosene and diesel etc.CM-08B is mainly used to determine conductivity of compressor oil,lubricating oil. By measuring conductivity,we can qualitatively know the Electrostatic safety,insulating performance,purity and other physical characteristics rapidly.



Reference standards:

• ASTM D4308-89
• ASTM D2624
• ISO 6297
• GB 6950-2001
• GB/T 6539-1997
• GB 13348-1992



Technical specifications

1.Measuring range:

Model	Measuring range and resolution	Conductivity measuring value and accuracy	Main application
CM-08B	1~19999pS/m±1pS/m	1~19999pS±(2%+2pS)	General oils,lubricating oil
CM-08C	0.1~1999.9nS/m±0.1nS/m	0.1~1999.9nS±(2%+2d)	Alcohol, acetone, isopropanol

(pS/m is unit of conductivity,equivalent to 'cu');

2.Structural constant and accuracy of conductivity cell:1.00/m±5%;

3.Reading mode:LCD digital display;

4.Power supply: in-built 6F22 type 9V battery,intermittently power supplying.(for exporting,the battery need to prepare by users);

5.Working condition: Temperature: 0~+40ºC; Relative humidity:≤85%

6.Structure characteristics:

Half-sealed structure

iaAT5 design

Small and portable

7.Overall dimension:

Main unit:φ100×35mm

Electrode:φ14×140mm

8.Weight:0.5KG

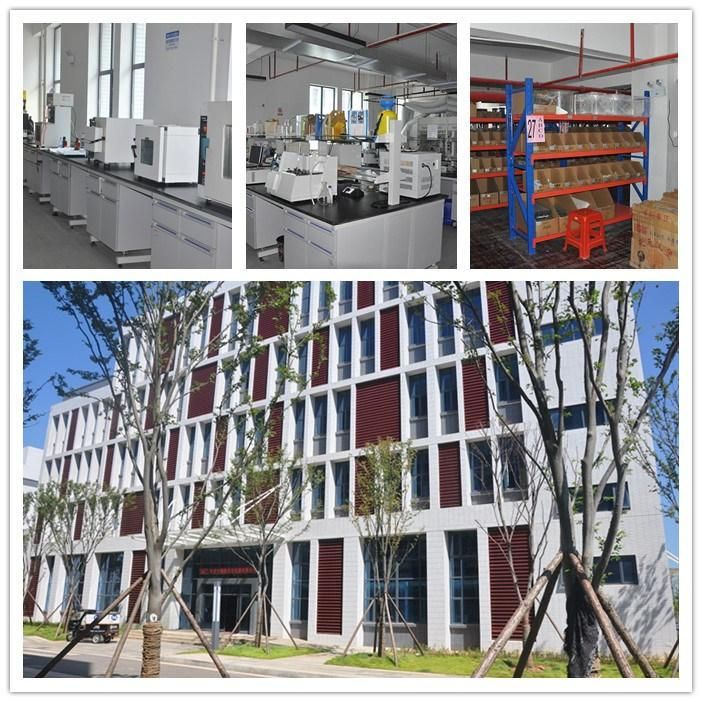

Factory overview
Customer Feedback

Germany

USA

FAQ
1.What's the delivery time?
About 5 days.

2.What's your payment terms?
100% paid by T/T in advance.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
