Verified Supplier Automatic Transformer Oil Trace Micro Water Factor Device

Wuhan GDZX Power Equipment Co., Ltd.
  • After-sales Service：Provide lifelong after-sales service
  • Warranty：1 Year
  • Drop formula：electric quantity tit-ration (Coulomb analysis)
  • Range：0ug~ 200mg (10ug ~ 100ug)
  • Threshold：0.1ug
  • Test sample type：solid, liquid, gas

Base Info

  • Model NO.：ZX-106
  • Display formula：64K color high definition touch monitor
  • Data storage：1000 test records
  • State indication：Dynamic curve, text display
  • Stir mixing speed：sliding touch panel speed control
  • Time period：ten years of normal operation of power down time
  • Printer：micro thermal printer, paper width 56mm
  • Power source：220V 10V + AC, 50Hz + 2.5Hz
  • Work rate：50VA
  • Shape size：330*260*220mm
  • Transport Package：Carton,Wooden Case
  • Specification：With the change of technical scheme
  • Trademark：GDZX
  • Origin：Hubei
  • Production Capacity：500 Pieces,Month

Description

Verified Supplier Automatic Transformer Oil Trace Micro Water Factor Device

Coulometric titration can be used to determine the water content of solid and gas samples reliably. During detection, insoluble solid reagents and easily contaminated electrodes and reagent materials can be equipped with corresponding solid, gas and liquid ejectors for indirect determination. It is an efficient and automatic analytical instrument. It is widely used in electric power, petroleum, chemical industry, pharmacy, railway, environmental protection, scientific research institutions and other industries.

 Verified Supplier Automatic Transformer Oil Trace Micro Water Factor Device




Technical Indicators


Technical parametersDetailed parameters
Drop formulaelectric quantity tit-ration (Coulomb analysis)
Range0ug~ 200mg (10ug ~ 100ug)
Threshold0.1ug
Accuracy3-1000ug ±3ug, The above 1000ug is not more than ±0.2% (Error without sampling, ambient humidity )
Test sample typesolid, liquid, gas
Display formula64K color high definition touch monitor
Data storage1000 test records
State indicationDynamic curve, text display
Stir mixing speedsliding touch panel speed control
Time periodten years of normal operation of power down time
Printermicro thermal printer, paper width 56mm
Power source220V 10V + AC, 50Hz + 2.5Hz
Work rate50VA
Ambient temperature5~35ºC
Ambient humidity≤85%
Shape size330*260*220mm

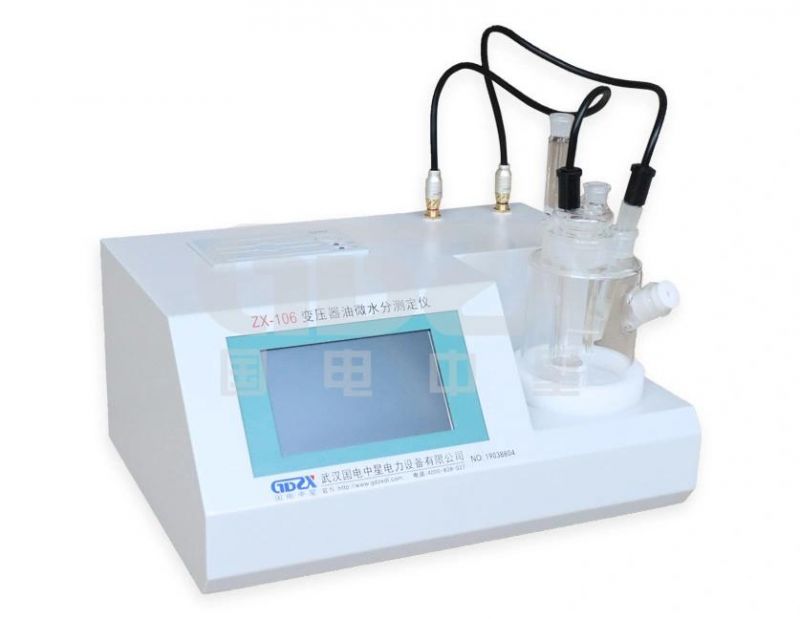

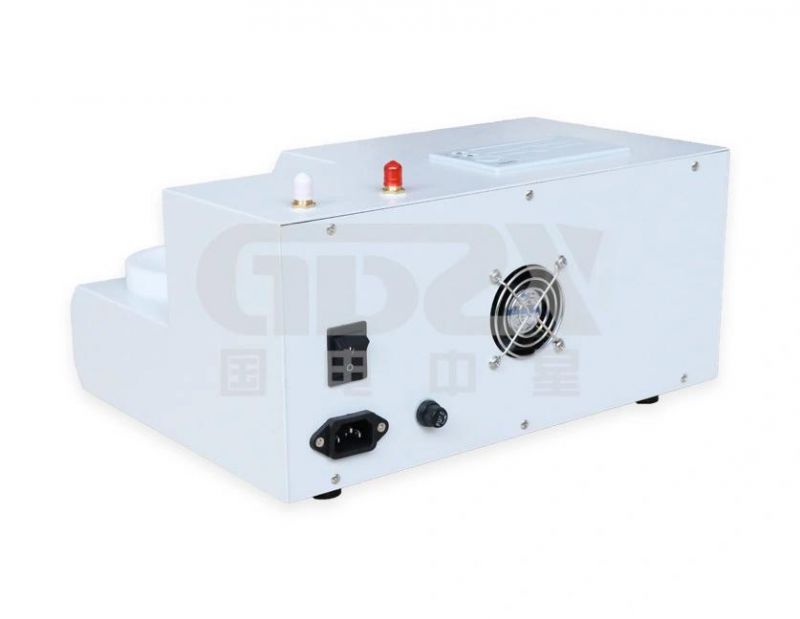

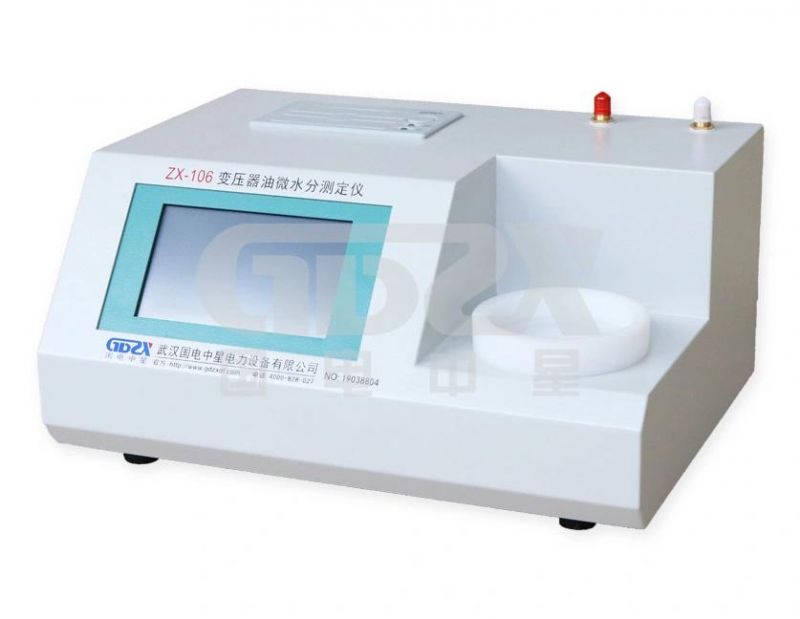

Product picture
Verified Supplier Automatic Transformer Oil Trace Micro Water Factor DeviceVerified Supplier Automatic Transformer Oil Trace Micro Water Factor Device

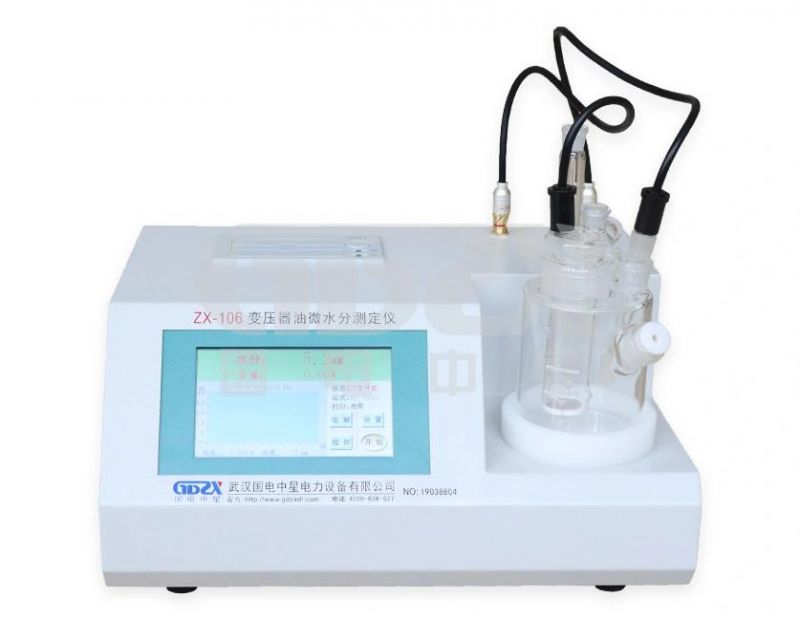

Device display

 Verified Supplier Automatic Transformer Oil Trace Micro Water Factor Device Verified Supplier Automatic Transformer Oil Trace Micro Water Factor Device

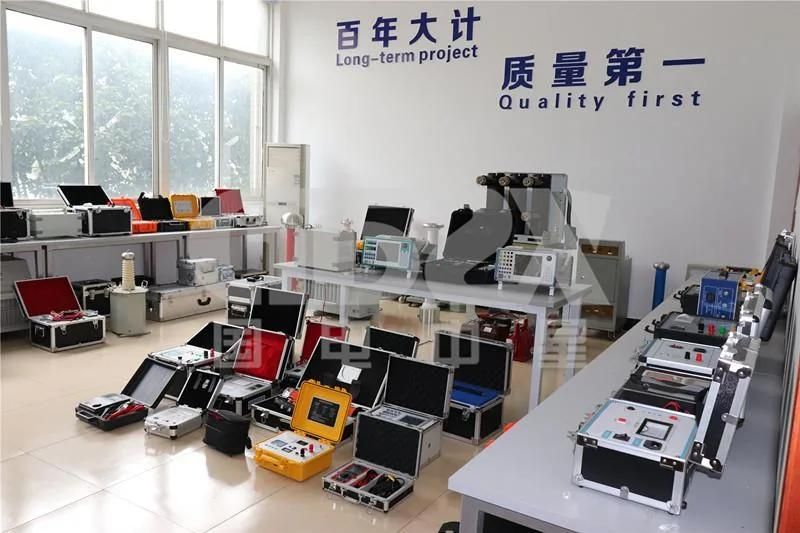

About GDZX
     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.Verified Supplier Automatic Transformer Oil Trace Micro Water Factor DeviceVerified Supplier Automatic Transformer Oil Trace Micro Water Factor DeviceVerified Supplier Automatic Transformer Oil Trace Micro Water Factor DeviceVerified Supplier Automatic Transformer Oil Trace Micro Water Factor Device
Shipping and packaging Verified Supplier Automatic Transformer Oil Trace Micro Water Factor Device  Features


1. Electrode open circuit fault and short circuit fault auto-detection function

2. Built-in thermal printer, can do off-line printing

3. With Screen protection function to extend LCD life span

4. High precision and rapid measuring speed
