• Model NO.：ZBL P8100
• Specification：SGS, ISO, CE
• Trademark：China Coal
• Origin：Shandong China
• HS Code：85098010
• Production Capacity：1000sets,Month

Basic Info.

Model NO. ZBL P8100 Specification SGS, ISO, CE Trademark China Coal Origin Shandong China HS Code 85098010 Production Capacity 1000sets/Month

Product Description

Application of Signal Trigger Zbl-P8100 Concrete Rebar Distribution Locator Scanner Detector Meter

By using the reflected wave method, the Signal Trigger Zbl-P8100 Concrete Rebar Distribution Locator Scanner Detector Meter apparatus is used to assess the integrality of concrete pile and identify the extent and location of the pile defect. It can be used for testing perfusion pile and hammer pile. It can also be used for testing the exposed top surface of constructions such as pillars.

Signal Trigger Zbl-P8100 Concrete Rebar Distribution Locator Scanner Detector Meter

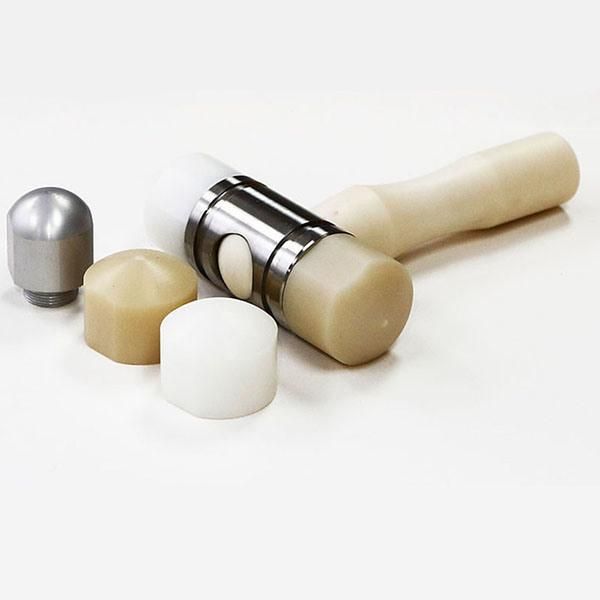

Hammer instrument: use different types of hammer (different energy/material) for different types of piles (lengths, etc.)

Features of Signal Trigger Zbl-P8100 Concrete Rebar Distribution Locator Scanner Detector Meter

 1.Large touch screen, user friendly interface, easy to learn and master
 2.Dual-channel simultaneous sampling, multi-directional testing for each pile makes the work more efficiently
 3.Wavelet processing can effectively collect reflecting signal from pile bottom, exceeds international standards
 4.The systems advanced design accurately stores the wave form image, and multiple channel signals can be saved for each tested pile
 5.Real time on-site test wave can be treated with smoothing, differential, filtering, power exponent and linear amplification wave processing methods
 6.The signal noise can be eliminated by taking the superposition of multiple signals. The superposition can be viewed at any time, allowing the poorer quality signals to be ignored
 7.Files arranged by projects   piles; clear and convenient, project/pile testing data can be easily accessed, edited, or deleted
 8.Standard USB port, thumb drive can be used for updating software; convenient and reliable
9.Professional Windows OS-based analysis software is fully featured, encompassing a very user friendly interface, allows the production of detailed test reports. Print settings are flexible, print preview and print processed result. Comprehensive help system can guide users when necessary, and it also including related testing rules;
10. Professional Windows OS-based analysis software is fully featured, includes user friendly interfaces, and may be used to produce detailed test reports. Print settings are flexible, print preview and print processed result. Comprehensive help system can guide users when necessary, and it also including related testing rules.

Datasheet of Signal Trigger Zbl-P8100 Concrete Rebar Distribution Locator Scanner Detector Meter

iItem	Specifications	Iitem	Specifications
Control Mode	A8 Embedded platform	Monitor	5.4 inch,high brightness,TFT  Color LCD
Data storage	4GB	Operation Mode	key+Touch screen
Trigger	Signal trigger	Ports	USB port
Noise voltage of the system	≤1 mV	Dynamic range	³184 dB
Amplifier frequency range	10Hz~10kHz	Input impedance	³1 MW
Sampling time intervals	1µs~64ms adjustable	Time resolution	5µs
Max length of sampling	4096	Gain error	≤1 dB
Amplitude nonlinear degree	≤10%	Timing accuracy	≤1%
		Sentinel magnify (time)	1,2,5,10,20,50,100,adjustable
A/D resolution	24 bit	Max magnify (times)	256000
Number of channels	2	Transducer sensitivity	³100 mv/g(acceleration mode)
Frequency range of Transducer	0.5~9000 Hz(acceleration mode)	Continuous operating hours	>5 hrs
Iinterference between channels	≤1%	Power	AC:220V±10%,DC:+12V
Dimensions	210mm´149mm´60mm	Weight	1.3kg(lithium battery included)

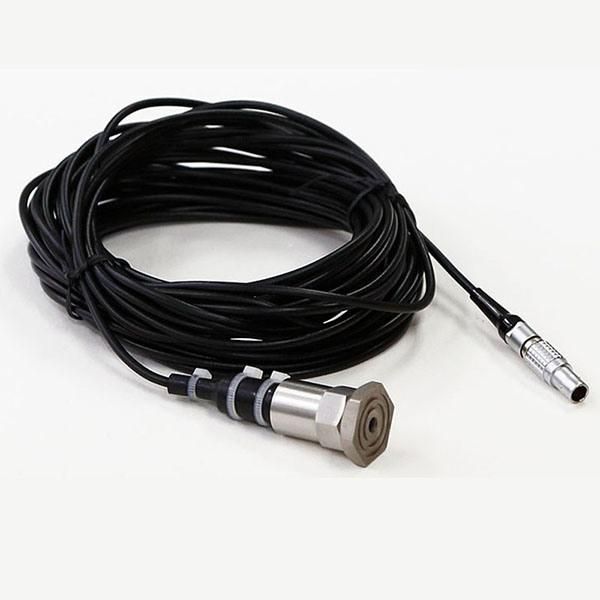

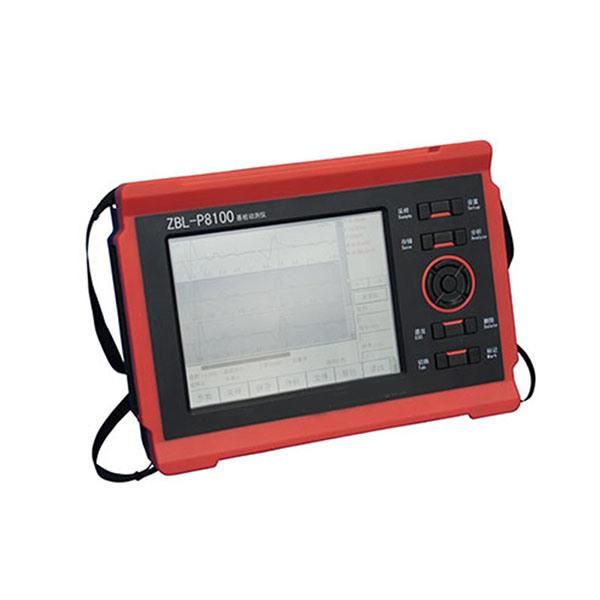

Photos Of Signal Trigger Zbl-P8100 Concrete Rebar Distribution Locator Scanner Detector Meter
