• Model NO.：TPC-56
• Maximum Power of Equipment：No More Than 300W
• Heating Power：150W
• Refrigeration Power：160W
• Ignition Rod Power：120W
• Operation Interface：7-Inch High-Resolution LCD Touch Screen
• Temperature Display Accuracy：0.1 ºC
• Printer：Embedded Thermal Micro Printer
• Transport Package：Export Standard Wooden Case
• Specification：390 mm*270 mm*430 mm
• Trademark：TOP
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. TPC-56 Maximum Power of Equipment No More Than 300W Heating Power 150W Refrigeration Power 160W Ignition Rod Power 120W Operation Interface 7-Inch High-Resolution LCD Touch Screen Temperature Display Accuracy 0.1 ºC Printer Embedded Thermal Micro Printer Transport Package Export Standard Wooden Case Specification 390 mm*270 mm*430 mm Trademark TOP Origin Chongqing HS Code 9031809090 Production Capacity 100 Sets/Month

Product Description

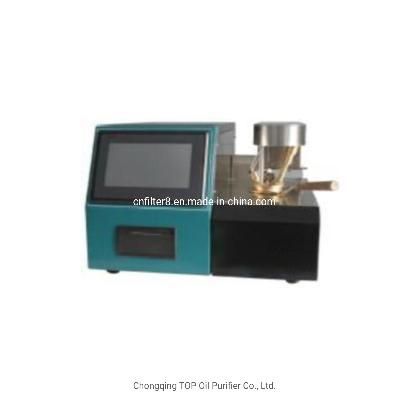

TPC-56 Automatic Tag Closed Cup Flash Point Tester

GB/T 21929  ASTM D56

Application
The TPC-56 automatic closed flash point tester (Tag Closed cup method) is designed, developed and produced according to the national standard GB / T 21929 "Tag Closed cup flash point measurement method" and the automatic test method of ASTM D56. It is suitable for automatic determination of flash point of liquid with viscosity less than 5.5cst at 40 ºC  or  9.5cst at 25 ºC  and flash point less than 93 ºC.


Feature
1)The instrument adopts high-definition 7-inch high-resolution 800 * 480pixels LCD touch screen display and touch screen key control.
2)Full English man-machine interface, English character display, automatic control throughout the experiment, intuitive and easy to operate.
3)The instrument has automatic functions such as automatic lifting of test arm, automatic cooling / heating control, automatic ignition, automatic flash point detection, test result saving and printing, and automatic air cooling after the test.
4)Electronic silicon carbide ignition technology, electronic flame, no need to connect the air source, energy saving and environmental protection, to ensure the safe use of the laboratory.
5)The instrument adopts German brand high-precision temperature sensor to detect the temperature.
6)When the sample reaches the preset temperature, the ignition will be started automatically and the flash point of the sample will be detected automatically.
7)The instrument adopts high-precision flash point detector to detect flash point, with short response time and high sensitivity.
8)The digital module automatically detects the atmospheric pressure, and the test result automatically compensates the atmospheric pressure to the correction value.
9)The instrument is equipped with fault self diagnosis system and reminder function; it can store multiple test results.
10)It has time, date and week setting functions.
11)It has the function of temperature rise limitation. When the temperature reaches the limit, the test instrument will automatically stop the test and prompt.
12)At the end of the test, the number and results of the test will be saved automatically and printed automatically.


Technical parameters:
1. Power supply voltage: AC220-50V, 50Hz.
2. Flash point test range: 5-93 ºC (the instrument can reduce the sample temperature to - 5 ºC)
3. Heating rate: flash point < 60 ºC (0.9 ~ 1.1 ºC / min); flash point ≥ 60 ºC (2.7 ~ 3.3 ºC / min)
4. Detection interval: flash point < 60 ºC (0.5 ºC); flash point ≥ 60 ºC (1 ºC)
5. Maximum power of equipment: no more than 300W (different parts not work at the same time)
6. Heating power: 150W; refrigeration power: 160W; ignition rod power: 120W
7. Operation interface: 7-inch high-resolution LCD touch screen, with a resolution of 800 * 480.
8. Temperature display accuracy: 0.1 ºC
9. Air pressure detection: digital air pressure sensor chip, error ± 0.3kpa @ 25 ºC.
10. Refrigeration part: semiconductor refrigeration sheet, with water flow switch protection function.
11. Cooling and heat exchange mode: circulating water cooling, equipped with a submersible pump
12. Printer: embedded thermal micro printer
13. Number of historical records: 256 groups of historical result values can be stored
14. Hardware test: with switch cup cover test, ignition mechanism test, mixing test, ignition rod test, heating test and refrigeration test.
