En 136 Full Face Mask Flame Retardant Test Equipment, Equipped with 6 Teklu Burners

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：12 Months
  • Test Standard：En 136
  • Function：Flame Resistance Test
  • Weight：176kg
  • Test Object：Full Face Masks

Base Info

  • Model NO.：FFM
  • Dimension：1200mm (W) X 700mm (D) X 1,900mm (H)
  • Power Supply：AC220V, 50Hz, 50W
  • Total Gas Flow Rate：(21±0.5) L,Min
  • Detect Temperature：950±50 Degrees
  • Pressure Regulation：10-50kpa
  • Total Gas Flow：(21±0.5) L,Min
  • Flame Temperature Probe Diameter：1.5mm
  • Ignition Time Timer：0-99.99 Seconds, ±0.01 Seconds
  • Display：LCD
  • Language：English
  • OEM Service：Available
  • Transport Package：Plywood Case
  • Specification：Stainless steel
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：5 Sets,Month

Description

Total gas flow rate of six igniters(21±0.5) L/minIgnition time timer0-99.99 seconds,±0.01 secondsDiameter of flame temperature measuring probe1.5mmTest Standard of Full face Mask Flame Resistance TesterCSN EN 136:1998 GB/T 16556:2007Temperature of the flame at 250mm from the top of the burner(950±50)ºCDistance between the top of the burner and the six ignition points of the mask250mmMetal die wall thickness2-3 mm, flame resistance and combustion resistanceDimensions1200mm (W) x 700mm (D) x 1,900mm (H)Weight176KGElectrical requirementsAC220V, 50Hz, 50WGas requirementspropane gas

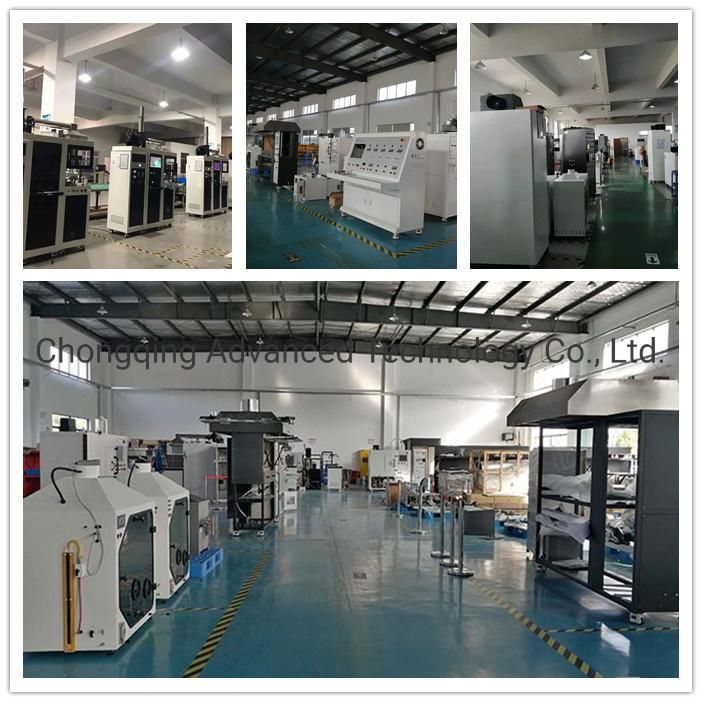

Factory overview

En 136 Full Face Mask Flame Retardant Test Equipment, Equipped with 6 Teklu Burners
Customer Feedback

Germany
En 136 Full Face Mask Flame Retardant Test Equipment, Equipped with 6 Teklu Burners
USA
En 136 Full Face Mask Flame Retardant Test Equipment, Equipped with 6 Teklu Burners
Transporation
En 136 Full Face Mask Flame Retardant Test Equipment, Equipped with 6 Teklu Burners


FAQ

1.What's the delivery time?
About 2 months.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
