ASTM D1319 Liquid Petroleum Oil Fia Hydrocarbon Analysis Equipment

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：12 Months
  • Display：Needle
  • Appliance：Petrochemical
  • Portable：Non Portable
  • Certification：ISO9001

Base Info

  • Model NO.：AIC-1319
  • Type：Hydrocarbon Tester
  • Test Standard：ASTM D1319 Fia Hydrocarbon Analysis
  • Power Supply：AC220+_10% 50 Hz
  • Test Method：Fluorescent Indicator Adsorption
  • Maximum Power Consumptio：600W
  • Dimensiion：350mm*400mm*1770mm
  • Design：Vertical, Integrated Design
  • Illuminating Lamp：1220mm Length
  • Pressure Regulating Range：(0_400)Kpa
  • Gas Supply：Nitrogen Bottle (or Air Compressor, Compressed Air
  • Adsorption Column：Two Pieces
  • Wavelength of Light Source Pipe：365mm±5nm
  • Function：Determining Percentage of Aromatic Hydrocarbon
  • Lamp Power：40W
  • Color：White
  • Application：Petroleum Oil Testing
  • Transport Package：Plywood Case
  • Specification：Vertical
  • Trademark：AI
  • Origin：China
  • HS Code：9027809990
  • Production Capacity：20 Sets,Month

Description

NoItemUnitQtyRemarks1Precision inner diameter adsorption columnPiece2 2Imported silica gel (500g)Bottle1 3Imported fluorescent indicator (4g)Bottle1 46mm intake pipe(intake pipewith cylinder connection)Set1 5Glass grinding plug(with trachea)Set2 6Glass flow exportPiece2 7Grinding mouth clip (28, large)Piece2 8Grinding mouth clip (12, small)Piece2 9Indicate that the dose spoonPiece1 10Special needle used for cleaningPiece1When used for washing11500ml waste liquid bottle(with rubber stopper and PU tube)Set1When used for washing12Plastic measuring cup (250ml)Piece1When used for washing13Magnetic pointerPiece8Placed on both sides of the scale14Magnetic fixed basePiece2When the vibration place themagnetic fixed basein the bottom of the absorption column15Fuse (10A, Ф5 × 20)Piece2Spare parts16Purple light tube, 40W, 365nm wavelengthPiece1Spare parts, placed inside the instrument

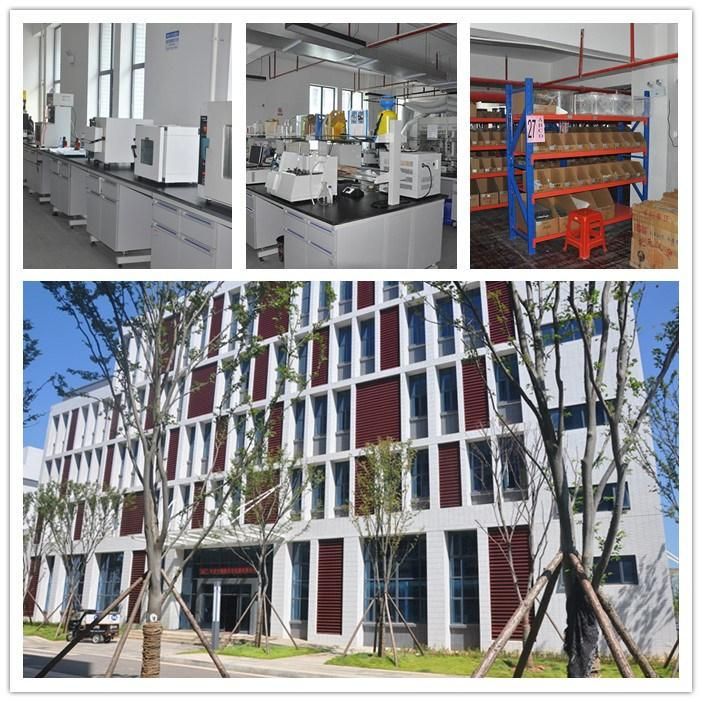

Factory overviewASTM D1319 Liquid Petroleum Oil Fia Hydrocarbon Analysis Equipment
Customer Feedback

Germany
ASTM D1319 Liquid Petroleum Oil Fia Hydrocarbon Analysis Equipment
USA
ASTM D1319 Liquid Petroleum Oil Fia Hydrocarbon Analysis Equipment
Package
ASTM D1319 Liquid Petroleum Oil Fia Hydrocarbon Analysis Equipment
FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every perso
