• Model NO.：FRP
• Dimension of Radiation Board：300mm × 450mm
• Dimension of Burning Unit：L1420 * W1200 * H2300 (mm)
• Flame Height：60 ~ 120mm Adjustable
• Diameter of Thermoucouple：3.2mm K-Type
• Delivery Time：About 40 Days
• Test Object：Flooring Materials
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：30 Sets,Month

 Maximum operating power 5kw Timing accuracy <1s / h Heat flux meter Measuring range (0-15) Kw / m2; (heat flow customer-owned)



 Heat flux meter accuracy ± 0.2Kw / m2 Heat radiation pyrometer range 400-600 ºC, the accuracy of ± 0.5 ºC;



 Black body temperature error ± 5 ºC; Smoke speed (2.5 ± 0.2) m / s Smoke capacity (39-85) m3 / min Porous refractory radiation board size 300mm × 450mm, the ability of about 900 ºC high temperature;



 Thermocouple diameter of 3.2mm K-type stainless steel armored thermocouple Burning torch diameter ¢ 10mm diameter ¢ 6mm, spray tube on the 35 ¢ 0.7mm hole Flame height 60 ~ 120mm adjustable Ignition system high voltage electronic ignition Burning box size L1420 * W1200 * H2300 (mm) Strong exhaust systemFlooring Radiant Panel Tester is equipped with a strong fan, when the test is completed, start the exhaust fan system will be exhausted outdoors

Installation requirements

1Electrical230 volts Nominal 10 Amps2Ambient TemperatureOperating 10°C to 35°C3Dimensions

Apparatus: 1900mm (W) x 750mm x (H) x 2120mm (D)

4Gas SuppliesPropane and air compressor5Weight235KG

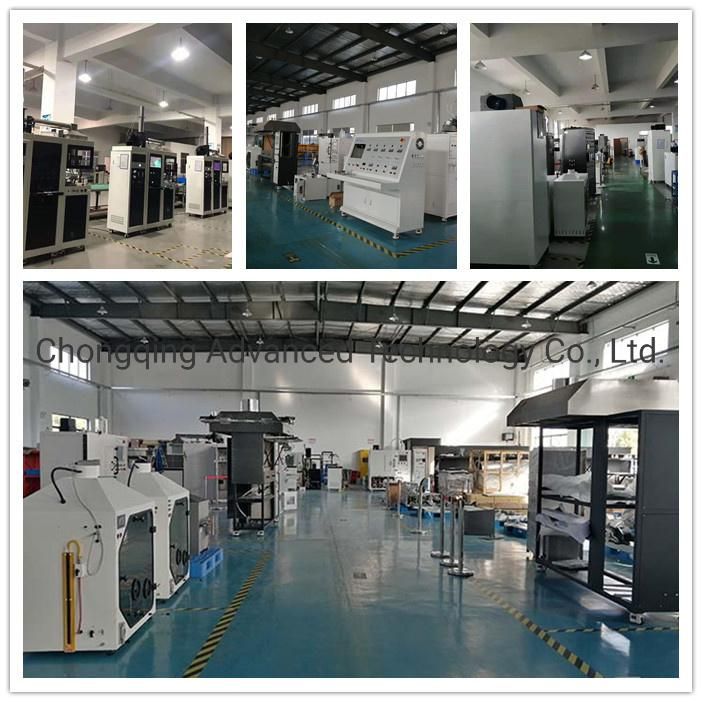

Factory overview

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 2 months.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
