En 1363 and ISO 834 Level Fire Resistance Test Equipment
Chongqing Advanced Technology Co., Ltd.- After-sales Service：Response in 12 Hours
- Warranty：12 Months
- Test Standard：En 1363 and ISO 834
- Power Supply：200-240 VAC or 100 -130VAC or 24VAC 40 -70Hz
- Dimension：3000mm (W) X 3000mm (H) X 1300mm (D)
- Channel：240
Base Info
- Model NO.：AIC-834H
- Power Consumption：7va
- Measuring Speed：1 Ms to 3 Seconds
- Test Temperature：1250ºC
- Display：LCD
- Delivery Time：About 3 Months
- Test Object：Building Materials
- Transport Package：Plywood Case
- Specification：White
- Trademark：AI
- Origin：China
- HS Code：9031809090
- Production Capacity：10 Sets,Month
Description
Channel
a total of 240,bipolar difference
Connector
4 mm round socket (per channel 2). Other types of requirements are available
Input range
DC voltage of 5 mv , 50mv , 500 mv, 5000mv (software programmable)
Basic resolution
21 bit
Basic accuracy
0.005%FS
Measuring speed
1 ms to 3 seconds (software programmable)
Cold-junction compensation
Absolute compensation +0.1ºC
Computer interface
RS485 75 ohm twisted pair
Power supply
200-240 VAC or 100 -130VAC or 24VAC 40 -70Hz
Power consumption

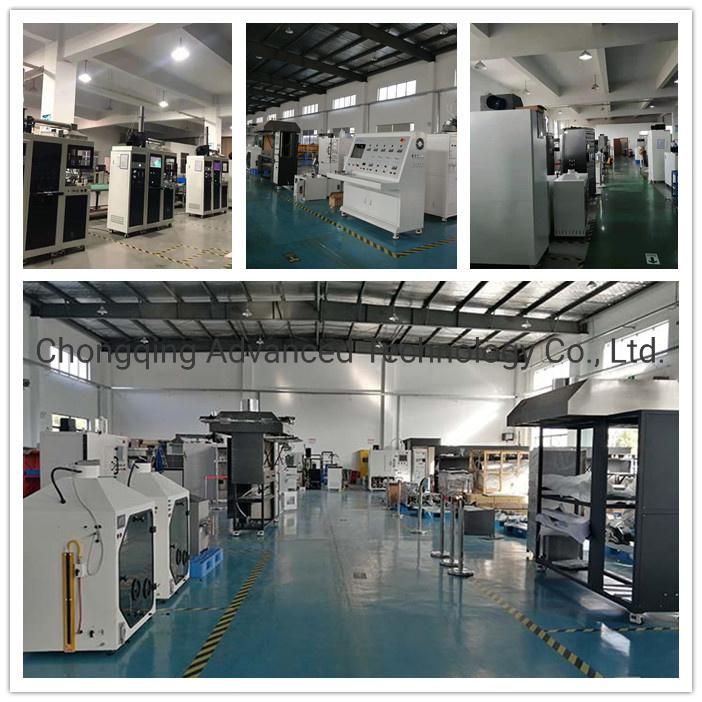

Factory overview
Customer Feedback
Germany
USA
Transporation
FAQ
1.What's the delivery time?
About 3 months.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
