• Model NO.：TPV-I
• Max.Size of Sample：1200mm*2200mm
• Thickness of The Sample：0~100mm
• Gate Size：1400mm*2600mm
• Internal Diameter of Burner：0.17mm
• Air Conditioning Holes：4*Φ4 mm
• Wind Speed：0 M,S ~1.0 M,S
• Display：Touch Screen LCD
• Test Object：Photovoltaic Module
• Operation：Automatic
• Storage：6 Samples Data
• Flame Height：20mm
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. TPV-I Max.Size of Sample 1200mm*2200mm Thickness of The Sample 0~100mm Gate Size 1400mm*2600mm Internal Diameter of Burner 0.17mm Air Conditioning Holes 4*Φ4 mm Wind Speed 0 M/S ~1.0 M/S Display Touch Screen LCD Test Object Photovoltaic Module Operation Automatic Storage 6 Samples Data Flame Height 20mm Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 10 Sets/Month

Product Description

Introduction:
This Photovoltaic (PV) Module Ignitability Tester is suitable for measuring the flammability of the building products with a small flame directly impact the vertical sample without external radiation.
The combustion box, the sample tooling and the smoke exhaust system are custom-designed according to the size of the test sample.The maximum size of  the sample is 1 meter wide and 2.2 meters high.The sample can be put in the front of the instrument.

Standards:

ISO 11925-2:2010,IEC61730-2:2016

Features:
1.The sample holder is adjustable to ensure the vertical placement of  the sample.
2.Built-in explosion-proof lamp(explosion-proof grade C , LED light)
3.Exhausting blower is supplied with Photovoltaic (PV) Module Ignitability Tester .
4.The air inlet of the box is equipped with a manual wind valve.
5.The combustion box and the control box need to use a interlayer with a thickness of 1cm to ensure that the high temperature in the combustion chamber does not affect the control box.
6.The combustion box is equipped with two temperature sensors.One temperature sensor is placed near the air outlet, and the other sensor is flexible.When the temperature of the sensor exceeds the set temperature, the shut-off valve is closed and the gas is cut off.The sensor is easy to replace.Temperature range: 25ºC ~100 ºC.Temperature deviation < 2 ºC.
7.A small box which is hang on the wall is placed outside the room for placing a gas junction.
8.Test section is equipped with wind pipe,including wind speed measurement, temperature measurement.

Structure
1.The cabinet which is painted,and it makes the Photovoltaic (PV) Module Ignitability Tester look more beautiful.
2.Size:2050(L)×1000(W)×3000(H)mm;Gate size 1400mm*2600mm; Cabinet thickness: 2mm;
3.The test sample is put in the front door. The sample is easy to install.
4.The burner can be lifted to 1.1 meters.
5.The maximum size of the sample is 1200mm*2200mm.Sample tooling can be used to adjust the sample with different sizes; the thickness of the sample is 0~100mm;
6.Surface ignition position:A:From the bottom 40mm.B:The edge of the bottom:1.5mm from the front surface of the bottom of the sample.C:Adhesive site of side edge combustion of sample.D:The side of the sample.
7.The ignition time is 15s and can be set freely.
8.Built-in stainless steel reinforced specimen fixed tooling.The gap is reserved at the bottom of the tooling, which is used for flame ignition and the gap distance is 300~800mm, and can be adjusted.
9.The burner can be moved horizontally and vertically to adjust the distance from flame to sample .(The test sample is heavy, moving burner to adjust the combustion position, which can make the test convenient and labor-saving.)
10.The burner of Photovoltaic (PV) Module Ignitability Tester can rotate .
11.An anemometer bracket is equipped in the combustion box which can adjust the position arbitrarily.An anemometer placement grooves is also equipped.
12.The control box is divided into an independent gas control box and an electric control box. Prevent the danger from happening.Prevent the occurrence of danger.
13.The control box and the combustion box are equipped with gas leakage alarm,
14.The Photovoltaic (PV) Module Ignitability Tester  has built-in explosion-proof lamp.
15.The internal diameter of the imported burner is 0.17mm, and there are 4 Φ4 mm air conditioning holes.
16.Imported gas flow control valve can control of flame height of 20mm + 1mm accurately;
17.Japan SMC pressure gauge and pressure regulating valve can control of gas pressure accurately.
18.The air outlet is equipped with detachable accessories to facilitate the replacement of different pipe diameter pipes in the future.
19.The wind speed of the exhaust fan is adjustable, and the wind speed in the middle position of the wind pipe is 0 m/s ~1.0 m/s adjustable.The wind pipe center is equipped with a wind speed measuring device, with a measuring precision of + 0.1m/s.
20.Wind speed at the position of 5cm at the surface of the specimen:vertical direction<0.2m/s, direction <0.1m/s.
21.The flame height is adjustable and the flame is automatic ignition.
22.The flame time can be set freely, The program acquiesced the ignition time of the IEC61730-2 standard request.
23.Tempered glass doors are easy to observe the test.
24.All internal tooling is made of stainless steel which is beautiful and anticorrosion.
25.Photovoltaic (PV) Module Ignitability Tester is high automation and easy to operate.

Control System
1. PLC and touch screen control system
2.Automatic ignition, Automatic timing
3.6 sample experimental data preservation
4.The test report can be copied through USB
5.It can monitor the experimental data in real time, query the experimental data of 6 samples and inquire the content of the alarm
6.Experiment abnormal sound alarm.
7.The wind speed of exhaust blower is adjustable .

Specification of Photovoltaic (PV) Module Ignitability Tester :

Size	2050(L)×1000(W)×3000(H)mm
Power	220V,50/60Hz, 10A
Weight	1000kg
Gas	Propane gas(customer provide)

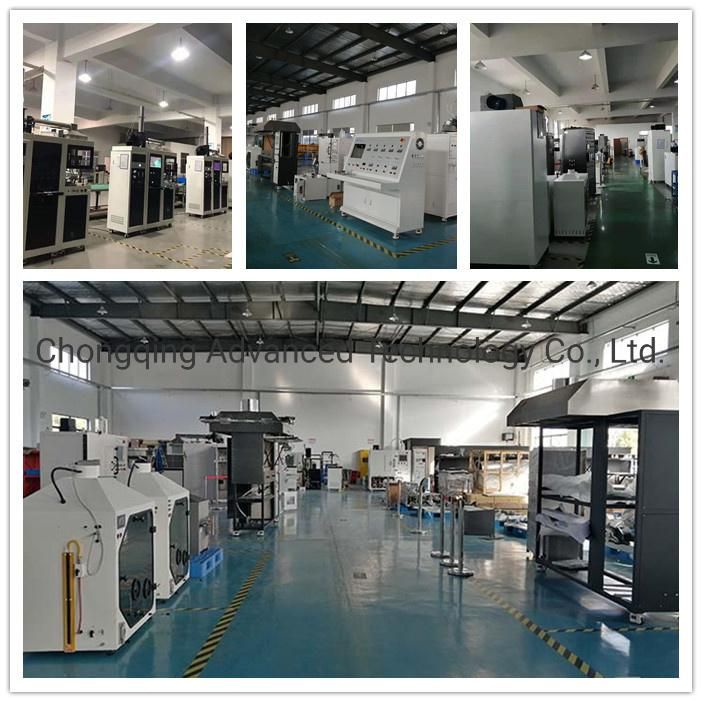

 Factory overview

Customer Feedback

Germany

USA

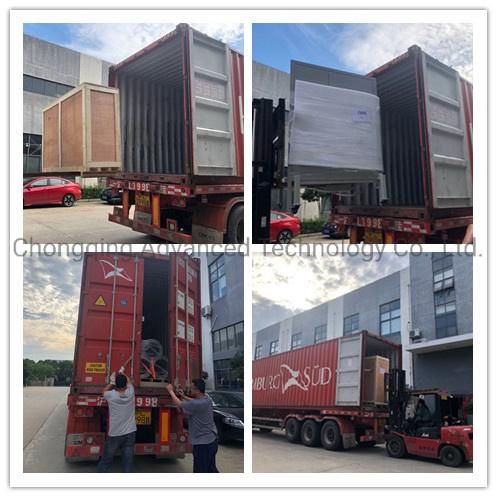

Transporation

FAQ
1.What's the delivery time?
About 2 or 3 months .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
