• Model NO.：GDV-1
• Rated Working Pressure：2.1MPa
• Water Pressure：2.75 MPa
• Time Control Mode：Button
• Warranty：1 Year
• Transport Package：Wooden Case for Gdv-1
• Specification：630mm*450mm*500mm
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9014800090
• Production Capacity：100 Set,Sets Per Month

Power SupplyPower SupplyAC 220V±10%, 50HzPower1.1kwFuse Rated Current10APressure ContainerWorking Volume13LWorking MediumAirRated Working Temperature110 ±5Rated Working Pressure2.1mpaDesign Pressure2.2 MpaWater Pressure Test Pressure2.75 MpaSafety Valve Open Pressure2.15 MpaSafety Rupture Disk Burst Pressure2.6 MpaPressure ControllerModelWP962-2(WP-D90)Accuracy±0.01mpaTemp.& Time ControllerWP962-1(WP-D90)Accuracy±0.1Time64*1080minPower Failure Keeping FunctionYesOverall Size630*450*500mm(L*W*H)

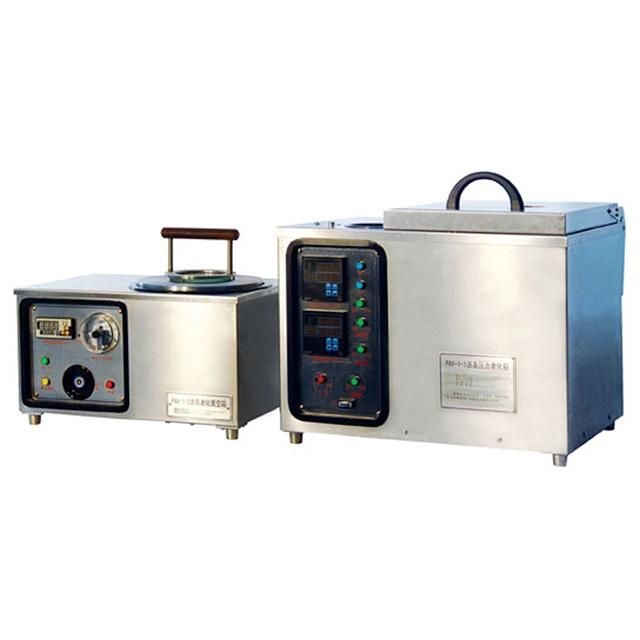

Asphalt Aging Test Vacuum Chamber:Power supplyPower supplyAC 220V±10%  50HzRated power0.9kwFuse rated current10AVacuum chamberWorking volume13LWorking mediumAirRated working temp.170 ±5Rated working pressureAbsolute pressure 15kpaPressure control modeElectric contact vacuum pressure gaugeTemperature and time controllerXMT-E55T2Temperature control accuracy±0.1Time control modeKeypressOverall size560*390*350mm(L*W*H)

(Note: Compressed air is needed for work.)
