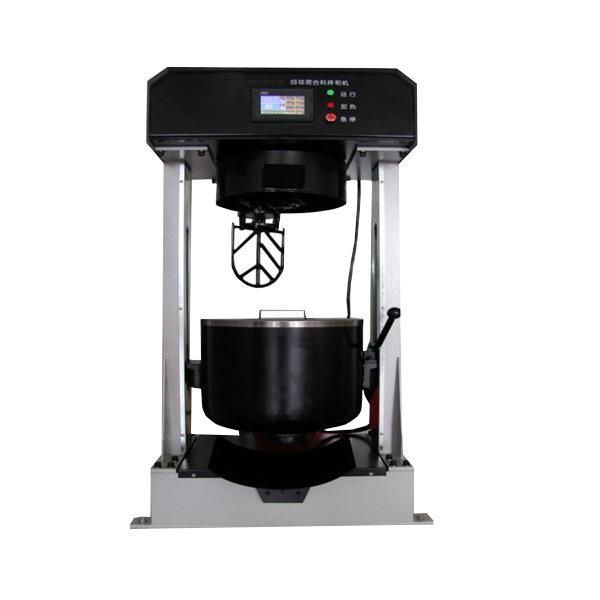

Heating Function Bitumen Mixture Blender with Moderate Price

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Power(W)：2000W
  • Voltage：380V
  • Max. Loading Capacity：20L
  • Application Field：Laboratories of Scientific Research, Construction&
  • Working Mode：Automatic
  • Function：Bitumen Mixture Blender

Base Info

  • Model NO.：GD-F02-20
  • Display：Digital
  • OEM Supply：Yes
  • Warranty：12 Months
  • Transport Package：Veneer Case for Gd-F02-20
  • Specification：600mm*400mm*1300mm
  • Trademark：GOLD
  • Origin：Chongqing, China (Mainland)
  • HS Code：9014800090
  • Production Capacity：100 Set,Sets Per Month

Description

1Blending amount20L2Temperature control rangeRoom temperature~200ºC3Temperature control accuracy±5ºC4Timing range(0~999)s5Timing accuracy±0.1s6Rotation rate of paddleComplete revolution 47R/min, Autorotation 76R/min7Blending motorAlternating current 380V, 550W;1400R/min;50Hz8Lifting motorAlternating current 380V,250W;1400R/min;50Hz9Overall dimension600mm×400mm×1300mm10Net weight215Kg11Power supplyAC(380±10%)V;16A;50Hz(three-phase four-wire with null line12Ambient temperature(-5~+50)ºC13Relative humidity≤80%
