• Model NO.：GD-0719A
• Transport Package：Standard Wooden Case for Gd-0719
• Specification：300*300*50mm
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9014800090
• Production Capacity：100 Set,Sets Per Month

Rolling speed of roller42±1 times/min (one way)Test vehicle moving distance230±10mmHardness of rubber for rolling wheel78±2 (International Standard Hardness)Pressure between rolling wheel and test mold0.7±0.05MPaTest mold size300×300×50mmMeasurement range for displacement0~30 mmMeasurement accuracy for displacementless than 0.01 mmTest duration60~240minTemperature controlling range for constant temperature caseroom temperature~80°CTemperature controlling accuracy±0.3°CPower supply380 V, 50 Hz, 3 Kw
 Note: Usually GD-0719 Automatic Wheel Tracking Tester to be used together with GD-0703 Hydraulic Wheel Track Molding Machine.

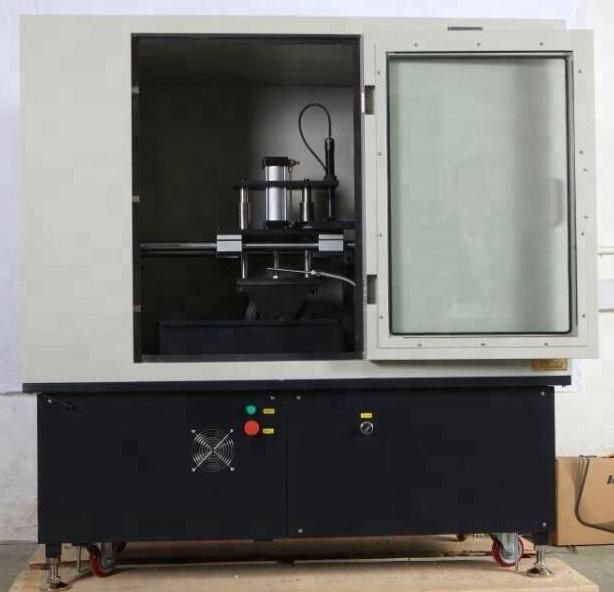

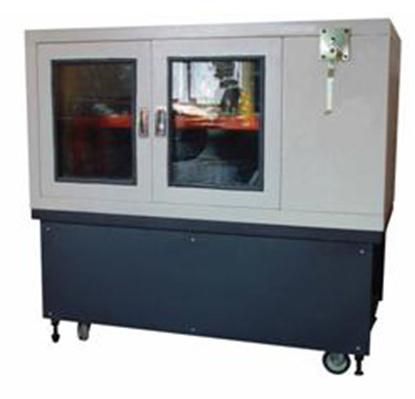

 GD-0719 Series Automatic Wheel Tracking Tester:1GD-0719 Automatic Asphalt/Bitumen Wheel track tester (Common Model)2GD-0719A Automatic Asphalt/Bitumen Wheel Rutting Tester (Research-based)3GD-0719B Automatic Asphalt/Bitumen Wheel Rutting Tester (Research-based)
