Handheld Metal Mineral Gold Xrf Analyzer Xray Fluorescence Spectrometer
Chongqing Drawell Instrument Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Element：Metals Analyzer
- Analysis：X Ray Fluorescence
- Display：Digital
- Application：Alloy, Gold, Mineral, RoHS
Base Info
- Model NO.：TrueX 860
- Frequency：50±0.5Hz
- Performance：Automation
- Function：Storage
- Weight：0-100Kg
- Power Source：AC220V±22V
- Customized：Customized
- Detector：Boost Si-Pin, Sdd Detector
- Data Memory：32GB
- Excitation Source：50kv,200μa Maximum
- Language：English, Russian, Korean, French
- Range of Detection：All Elements Between Mg and U
- USB, Bluetooth, WiFi：Yes
- Excel, Pdf：Available
- Battery Lasting：8 Hours
- Transport Package：43*23*45cm
- Specification：43*23*45cm
- Trademark：Drawell
- Origin：China
- Production Capacity：20
Description
TrueX 860 elements analyzed Scope of elements in standard test mode can be extended if there is such a need. TrueX 860 can analyze Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta,W, Re, Pb, and Bi,totaling 30 elements.

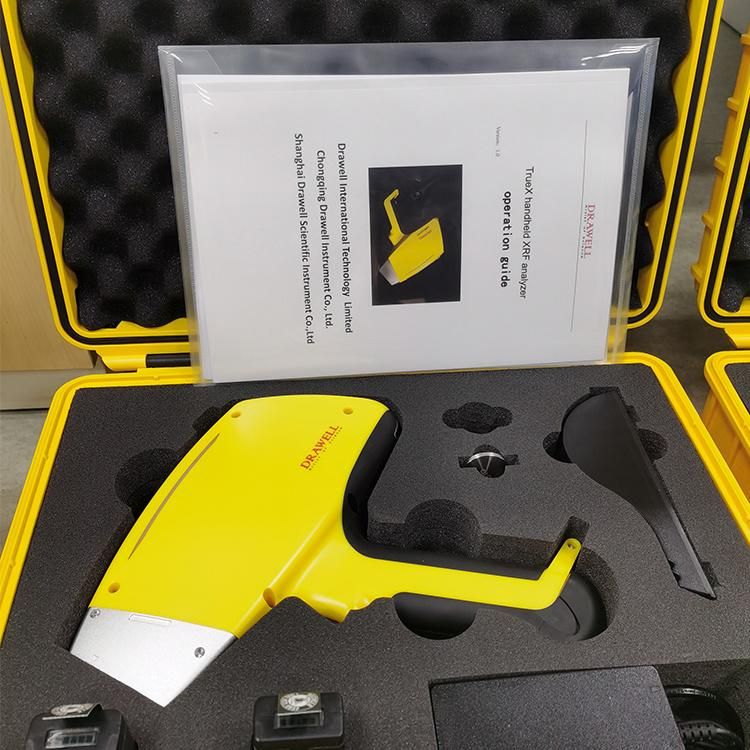

Product Image
| Weight | 1.6Kg(with battery). |
| Dimensions | 254 x 79 x 280 mm(L x W x H). |
| Excitation source | 50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional). |
| Detector | SDD detector |
| Range of detection | All elements between Mg and U. |
| Display system | Industrial resistive touch screen with screen size of 4.3". Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness. |
| Data processing | 32GB memory USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). |
| Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat;no need to wait for cooling of detector time again. |
| Safety | Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase Drawell Safety Band; |
| Power supply system | Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours. |
