• Model NO.：K1000
• Gas：Combustible Gas
• Type：Gas Control Panel
• Supportable：32 or 16 Detectors , Probes
• Interface：RS485 Communication
• Electric Control Device：Solid Relay Output
• Input Signal：4-20mA
• Voltage：220V AC,50-60Hz
• Display：LED
• Power Supply for Detector：DC 24V
• Waranty：1 Year
• Transport Package：Carton
• Specification：483*300*177(mm)
• Trademark：KELISAIKE
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. K1000 Gas Combustible Gas Type Gas Control Panel Supportable 32 or 16 Detectors / Probes Interface RS485 Communication Electric Control Device Solid Relay Output Input Signal 4-20mA Voltage 220V AC/50-60Hz Display LED Power Supply for Detector DC 24V Waranty 1 Year Transport Package Carton Specification 483*300*177(mm) Trademark KELISAIKE Origin Nanjing, China HS Code 8531100000 Production Capacity 100PCS Per Month

Product Description

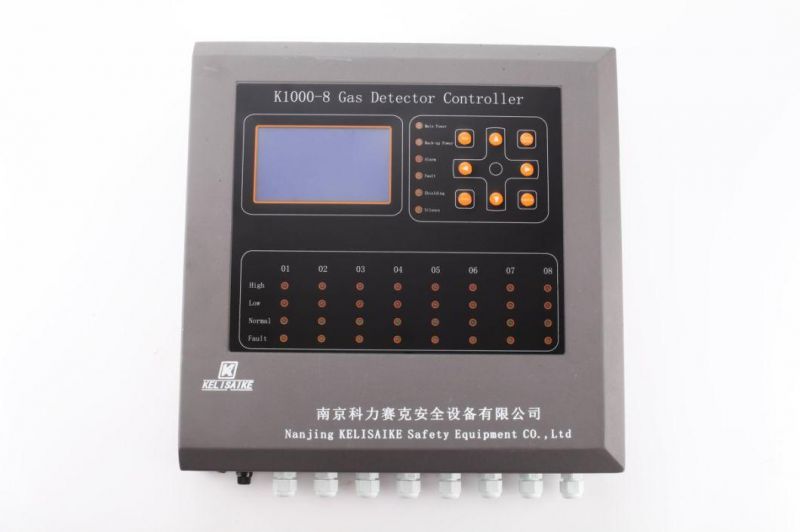

Multi Channels Toxic and Combustible Gas Concentration  Alarm Control Panel



>>>Key Features
1. Advanced MPU technology
2. Multi-channels capacity of system: 4,8 and 16channels are available
3. Work in patrol type
4. 2 or 3 BUS signal outputs can provide 24V power for the transmitter
5. Multi-channels real-time concentration display circularly and show real-time data(around 1-2 seconds show one channel)
6. Bright LED display
7. Receive 4-20mA industrial standard signal output or RS485 (Modbus) from transmitters
9. Programmable alarm operation value, low or high level alarm indication.
10. Respones time less than 2 seconds
11. Backup power supply: over 2 hours
12. Output Power: DC 24V/2.5A (Can provide power for many transmitters)

>>>Certificates






>>>Techinical Specifications

Working Method:	Automatic Patrol
Alarm Level:	Two levels' alarm. Users can set it.
Input signal:	4-20mA
Measurement Accuracy:	0.1%(F.S)
Communication Interface:	RS485
Working Voltage:	AC 220V/50-60Hz
Capacity of System:	32/16 Channels
Display Method:	Multi-passage concentration real-time LED highlight display
Display Error:	<0.5%
Ambient Humidity:	10%-90% RH (non-condensing)
Ambient Temperature:	-10 ºC ~55 ºC
Weight:	Approximate 12 kgs
Installation:	Wall-mounted and Horizontal
Units:	%LEL/ppm
Dimension:	510*380*110(mm) for 16 channels, and its backup power is 275*235*75(mm)
Communication Distance:	Less than 1200m

 >>>Company Profile
Nanjing KELISAIKE company is one of the largest safety equipment manufactures, possessing the most complete production range and specifications in the safety equipment industry of mainland China. Nanjing KELISAIKE was founded in 2004, including three subsidiaries in Beijing, Xi'an and Sinkiang, and more than 30 domestic sales service centers, with total registered capital of 5.16 million Yuan. Standard products and services cover the portable gas detector, fixed gas transmitter, wall-mounted gas detector, gas detector control unit and air breathing apparatus etc.

Except the above, Nanjing KELISAIKE also have an experienced factory for OEM service, providing professional design and construction of the customize products. The products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.

Nanjing KELISAIKE is the leader enterprise of the science and technology, persisting in creating core competencies by the core technology. In the company, there is one professional and technical talent team who masters core technology, including more than 10 senior technicians and masters.

Nanjing KELISAIKE has passed IS9001 International Quality System Certification, which ensures all products' excellent performance and competitive prices.

Staff consist of the company. Everyone is the inseparable part of the team. We are one, and only have one mind-best service for you.


KELISAIKE Faith
People-oriented and technology-innovated
KELISAIKE Principle
Quality first, integrity-based





>>>Our Services
1. For all our products, we offer a 1 year warranty and life-long maintenance.
2. All inquiries will be replied in 24 hours.
3. We will provide technical support; our engineers will help to solve the problems you met.
4. We can provide OEM and ODM service.
5. Our factory is located in Nanjing city. Welcome to visit our factory.
6. All products will be fully checked and well packed before shipment, and qualification certificate will be provided.


>>>Calibration
For the calibration of KELISAIKE products, please feel free to contact us for help.


>>>Why choose KELISAIKE?
1. Mutual benefit : We have our own factory .So compared with other competitors ,the price will be more favorable in the same quality.
2. Professional engineers: We have 3 engineers who have experience more than 10 years and more than 5 engineer assistants works on the gas detection line, with Hi-Tech equipment.We offer more accurate and stable products.
3. Customize : We have strong R&D team that can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥100 PCS).  (b) Design your color box(≥500 PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service:(a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.



>>>FAQ
Q: Are you a manufacturer?
A: Sure. We are the professional safety equipment manufacturer and have the experience of produce and market over 12 years in this field.
Q: Are you provide customization?
A: Sure. It includes gas type, gas detection range, gas alarm point etc. Please contact us about the detailed specifications.
Q: Could I order one piece sample for the quality test? And do you charge for the samples?
A: Sure. We recommend to check the sample before order.
According to our company policy, we just charge the samples based on EXW price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Q:How about the Delivery time?
A: Samples will be prepared  within 15 Days after 100% T/T in advance payment. QTY order will be delivered in 30 days.
Q:What kind of payments does KELISAIKE support?
A: T/T, L/C, Western Union, Cash all are accepted.
Q:What's the MOQ?
A:The MOQ is 1 PC. Please never mind the quantity.
