Computer Control Automatic Limited Oxygen Index Analyzer for Cable Material Testing

Delta Technology (Chongqing) Co., Ltd.
  • After-sales Service：Online Training, Reply Customer′s Question in 12h
  • Warranty：365 Days
  • Description：Computer Automatic Limited Oxygen Index Analyzer
  • Reference Standards：ASTM D 2863, ISO 4589-2, Nes 714
  • Test Method：Automatic Paramagnetic Type
  • Function：Limited Oxygen Index Analyzer for Cable Testing

Base Info

  • Model NO.：LOI-A
  • Oxygen Sensor：Paramagnetic Type
  • Application Field：Building Material, Cable, Rail, Plastic, etc.
  • Features：Computer Control Limited Oxygen Index Analyzer
  • Oxygen Range：0 - 100%
  • Gas Supplies：Oxygen, Nitrogen and Propane
  • Dimension：45cm * 40cm * 60cm
  • Weight：10kg
  • Power Supply：220V, 50Hz
  • Transport Package：Limited Oxygen Index Analyzer Pack in Veneer Case
  • Specification：45cm * 40cm * 60cm
  • Trademark：Delta
  • Origin：China Mainland
  • HS Code：9031809090
  • Production Capacity：1000 Sets Limited Oxygen Index Analyzer , Month

Description

Overview Product Description
  1. Product Parameters  Reference Standards
    1. Features
      1. Adopts England original Servomex Paramagnetic type oxygen sensor, which accuracy can be up to +/-0.1%;
      2. The sensor is better than traditional electrochemical sensor, because it don't need to change oxygen battery, so, it has long lift time more accurate and faster response time.
      3. Equipped with 2pcs Mass Flow Controller(MFC) to control N2 and O2 mixing ratio;
      4. Equipped with high temperature quartz glass tank;
      5. Equipped with supported and unsupported sample clamps;
      6. Equipped with portable ignition device, gas tank connector, accurate pin valve to adjust the flame;
      7. Digital setting N2 and O2 concentration;

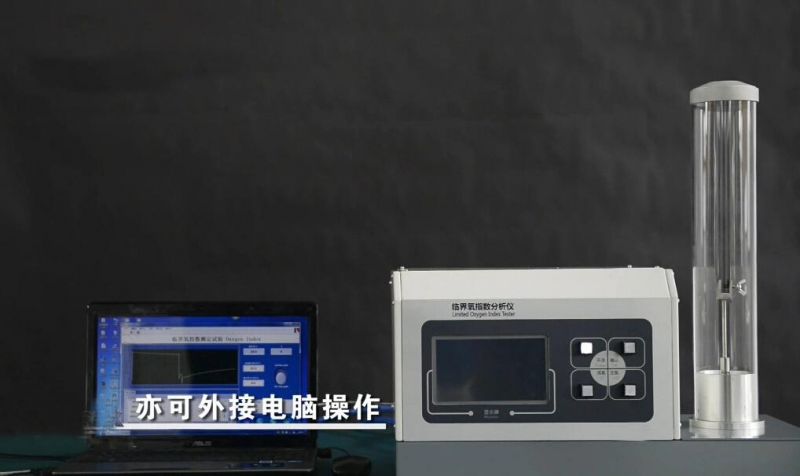

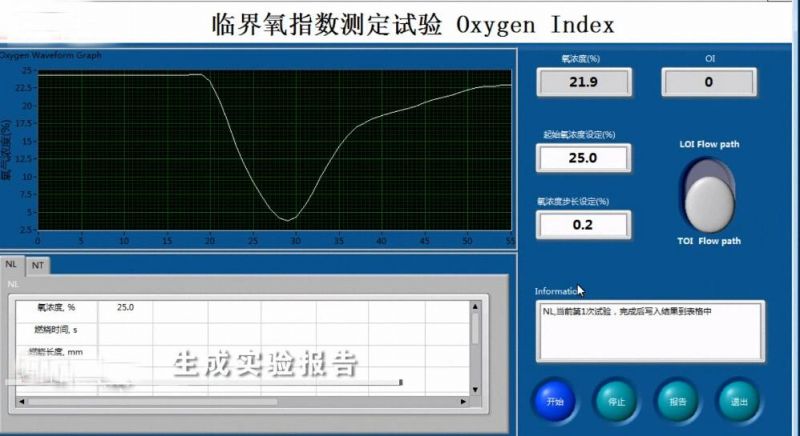

      8. Computer+LABVIEW software to control N2 and O2 mixing ratio, read O2 concentration in mixing chamber, and store&print out test results;Computer Control Automatic Limited Oxygen Index Analyzer for Cable Material TestingLOI-A Computer Control Automatic Limited Oxygen Index Analyzer can connect with computer.
      9. Reserve a calibration port to calibrate the sensor;
      10. Stainless steel air channel design, equipped with one way fire-resistance valve, magnetic valve, fine filter, so, it is stable and safe;
      11. Patented design gas mixing chamber, which ensure the gases can mix the gases in short time, data is more accurate;
      12. Resolution: 0.1%
      13. Accuracy: +/-0.2%
      14. Response time: <300ms
      15. Oxygen stability time: <30s
      Software: In Chinese and English languages.Computer Control Automatic Limited Oxygen Index Analyzer for Cable Material Testing
