• Model NO.：K800
• Voltage：DC 24V
• Operating Temperature：-20 Deg.C. ~ +50 Deg.C.
• Signal Output：4 to 20mA
• Explosion-Proof Grade：Exd Iict6
• Certificate：Ce
• Warranty：1 Year
• Detection Range：0-2000ppm
• Low Alarm：50ppm
• High Alarm：100ppm
• Display：Easy to Read Backlit LCD Display
• Transport Package：Carton
• Specification：1.8kg
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：1000

Basic Info.

Model NO. K800 Voltage DC 24V Operating Temperature -20 Deg.C. ~ +50 Deg.C. Signal Output 4 to 20mA Explosion-Proof Grade Exd Iict6 Certificate Ce Warranty 1 Year Detection Range 0-2000ppm Low Alarm 50ppm High Alarm 100ppm Display Easy to Read Backlit LCD Display Transport Package Carton Specification 1.8kg Origin Nanjing, China HS Code 8531100000 Production Capacity 1000

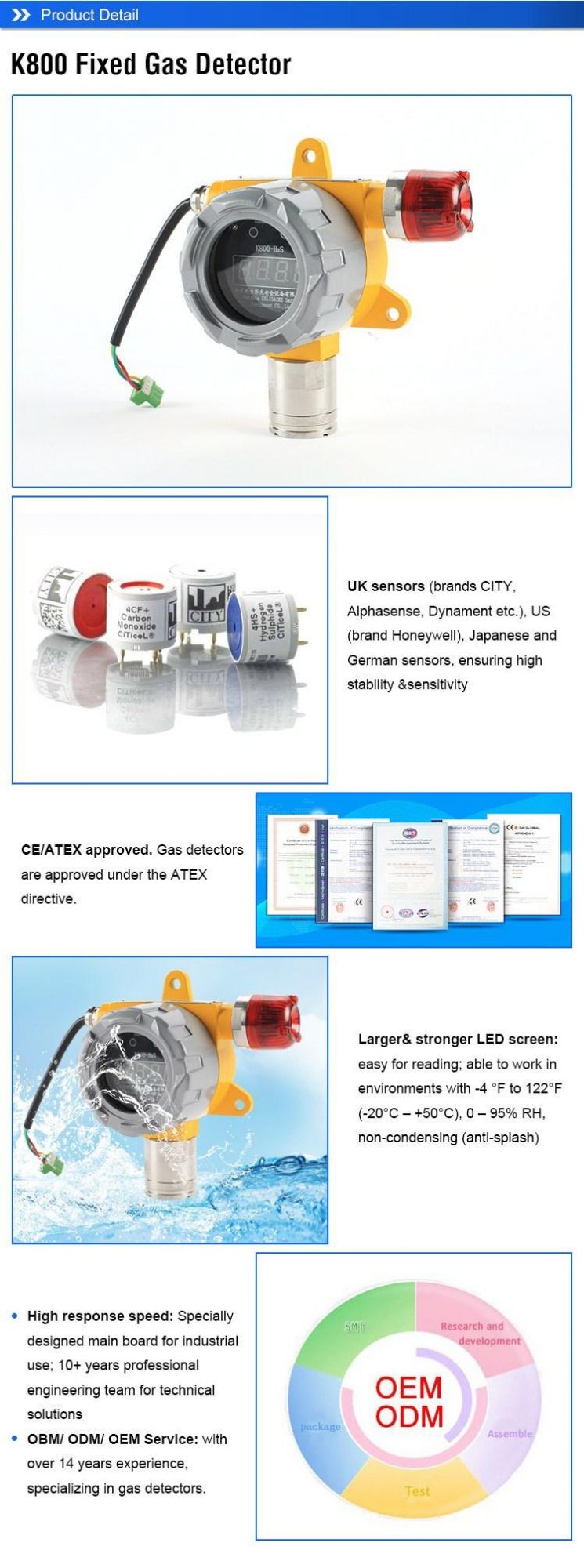

Product Description

Power supply	24VDC
Output signal	4-20mA standard industrial signal output
Operating temperature	-20°C~+50°C
Display	Backlight LED
Relative humidity	15%~90% RH (non-condensing)
Atmospheric pressure	86~106Kpa
Explosion-proof grade	Exd IICT6
Warranty	1 year

No.	Detection gas	Range	Accuracy	90% response time	Min readout	Low/high alarm
1	PH3	0-5-2000ppm	±5%(F.S)	≤25s	0.01ppm	0.3/5ppm
2	O2	0-30%	±5%(F.S)	≤15s	0.1%vol	18.0%/23.0%
3	LPG(LEL gas)	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
4	CO	0-1000 ppm	±5%(F.S)	≤25s	1 ppm	50ppm/100ppm
5	H2S	0-100 ppm	±5%(F.S)	≤30s	1 ppm	10ppm/20ppm
6	CH4	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
7	NH3	0-100ppm	±5%(F.S)	≤50s	1 ppm	25 ppm /50 ppm
8	O3	0-20ppm	±5%(F.S)	≤60s	0.01ppm	0.2ppm/0.4ppm
9	CI2	0-20 ppm	±5%(F.S)	≤30s	0.1 ppm	1 ppm /10 ppm
10	H2	0-1000 ppm	±5%(F.S)	≤60s	1 ppm	50 ppm /100 ppm
11	SO2	0-100 ppm	±5%(F.S)	≤30s	0.1 ppm	2 ppm /10 ppm
12	NO	0-250 ppm	±5%(F.S)	≤60s	1 ppm	25ppm/50 ppm
13	NO2	0-20 ppm	±5%(F.S)	≤25s	0.1 ppm	3ppm/10ppm
14	Infrared CO2	0-5%vol	±5%(F.S)	≤60s	0.1%vol	1%vol/2%vol
15	Infrared CH4	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol
16	Infrared C3H8	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol
