• Model NO.：K60-IV
• Working Voltage：3.7V Rechargeable Lithium Battery
• Weight：Approx. 300g
• Alarm Type：Vibration Alarm with Light, Sound
• Sensor Life：2-5 Years
• Explosion-Proof Grade：Exdib Iic T3
• Sampling：Pump,Diffusion
• Accessories：Detection Probe&Rubber Protection Case
• Transport Package：Carton
• Specification：133x70x36mm
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：1000PCS

Basic Info.

Model NO. K60-IV Working Voltage 3.7V Rechargeable Lithium Battery Weight Approx. 300g Alarm Type Vibration Alarm with Light, Sound Sensor Life 2-5 Years Explosion-Proof Grade Exdib Iic T3 Sampling Pump/Diffusion Accessories Detection Probe&Rubber Protection Case Transport Package Carton Specification 133x70x36mm Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 1000PCS

Product Description

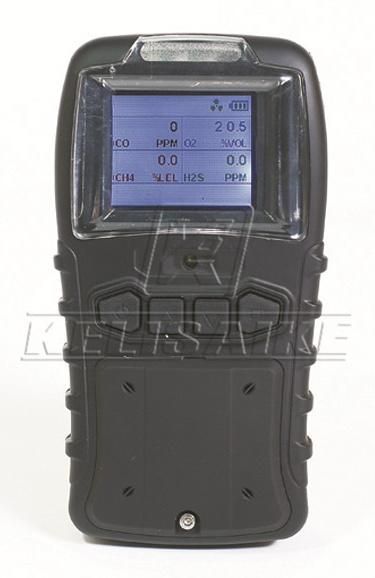

Battery Operated Portable Multi-Gas Safety Alarm Detector for up to 4 Gases Detection


The K60-IV is a compact full-featured gas detector for detecting up to four types of gases,  namely oxygen, combustible gas, hydrogen sulfide and carbon monoxide. Key features include an easy-to-operate design, a water-resistant case and high sensitivity sensors.

>>>Key Features

1)      Lightweight and small size design(less than 300 g), easy to operate
2)      Excellent built-in vibration alert for use in areas of high ambient noise applications
3)      90dB audible vibration alarm
4)      Strong, protective, concussion-proof shockproof design for normal working in harsh environments
5)      Easy access to pump, sensors, filter and battery compartment without exposing electronic components to potential damage
6)      Rechargeable lithium battery for over 10 hours continuously operation
7)      Intuitive simple-to-operate four-button
8)      User interface with a built-in pump
9)      2+2 digits LCD real-time displays gas concentration and corresponding gas types
10)  Full-featured self-test: sensors, lithium battery, circuit integrity and acousto optic vibration alarm function
11)  Accessories: operator's manual, calibration hose, charger and conversion plug
12)  CERTIFICATIONS: CMC, Ex, MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)

>>>Technical Specifications

Dimension	133 L × 70 W × 36 H mm
Weight	Approx. 300 g
Sampling	Pump, diffusion
Working Temperature	- 10 °C ~ + 44 °C
Relative Humidity	15%~90% RH (non-condensing)
Power	3.7 V rechargeable lithium battery, continuously work for over 10 hours
Sensor Life	One year for the combustible gas sensor; two years for oxygen and toxic gases sensors
Display	LCD display
Alarm Mode	Acousto optic alarm
Explosion-proof Grade	Exib IIC T3
Warranty	1 year



GAS TYPE	DETECTION RANGE	RESOLUTION	RESPONSE TIME
O2	0-30%Vol	0.1%Vol	T90≤15s
LEL gas	0-100%LEL	0.1%LEL	T90≤5s
CO	0-1999ppm	1ppm	T90≤25s
H2S	0-100ppm	0.1ppm	T90≤30s

Package:


>>> Our Services
1. For all our products, we offer a 1-year warranty and life-long maintenance.
2. All inquiries will be replied in 24 hours.
3. We will provide technical support; our engineers will help to solve the problems you met.
4. We can provide OEM and ODM service.
5. Our factory is located in Nanjing city, welcome to visit our factory.
6. All products will be fully checked and well packed before shipment, and the qualification certificate will be provided.
