• Model NO.：K1000-4
• Max Capacity of System：4 Channels
• Input Signal：4-20mA Signal(RS485 Signal)
• Output：RS485
• Alarm Setting：High and Low Alarm Values(Two Alarm Values)
• Contact Capacity：5A 250V AC, 5A 30V DC
• Display：LCD Display
• Sampling Rate：Less Than 0.1s,Channel
• Communication Mode：RS485
• Transport Package：Carton
• Specification：Less than 5KGS
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. K1000-4 Max Capacity of System 4 Channels Input Signal 4-20mA Signal(RS485 Signal) Output RS485 Alarm Setting High and Low Alarm Values(Two Alarm Values) Contact Capacity 5A 250V AC/ 5A 30V DC Display LCD Display Sampling Rate Less Than 0.1s/Channel Communication Mode RS485 Transport Package Carton Specification Less than 5KGS Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 100PCS Per Month

Product Description

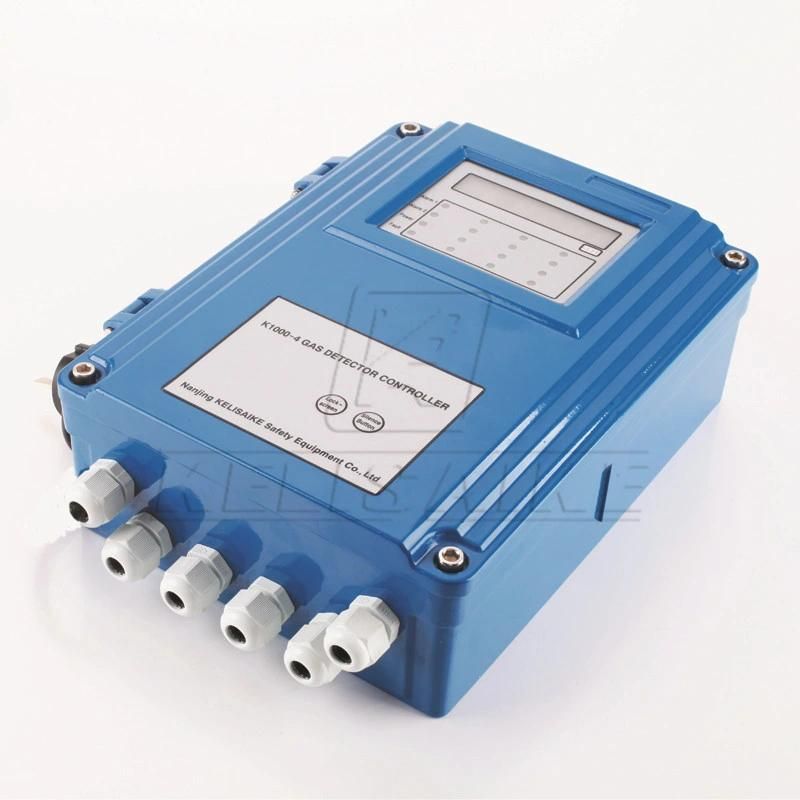

K1000-4 Gas Alarm Controller

K1000 series gas detection controller provides simultaneous display and alarm function for up to 4/8/16/32 monitored variables, and easy to configure and use. The K1000 series control system can function as a critical alarm controller for toxic or combustible gases. The controllers with non-intrusive user interface are easy for installation and featuring a large graphical LCD display in hazardous areas.


>>>Key Features
1)Accepts up to 4 inputs ,either 4-20mA or ModBus transmitters
2)Internal power supply provides DC 24V and generates 15 watts total system power; optional 150 watts supply.
3)ModBus RS485 serial ports have simultaneous master/slave operation
4)Two independent alarm levels per channels feature 'Relay Acknowledge' and could control the external audible devices when it is up to the alarm value.
5)Standard common alarm relays for HORN and WARN
6)Wall-mounted installation
7)Graphic LCD display with backlight displays real time data and engineering units.
8)Backup power supply: over 2 hours
9)Response time less than 2 seconds
10)Circle detection will show real-time data(around 1-2 seconds show per channel)


Working Method:	Automatic Patrol
Alarm Level:	Two levels' alarm. Users can set it.
Input signal:	4-20mA
Measurement Accuracy:	0.1%(F.S)
Communication Interface:	RS485
Working Voltage:	AC 220V/50-60Hz
Capacity of System:	4 Channels
Display Method:	Bright LED Display
Display Error:	<0.5%
Ambient Humidity:	10%-90% RH (non-condensing)
Ambient Temperature:	-10 ºC ~55 ºC
Weight:	Approximate 3 kgs
Installation:	Wall-mounted
Units:	%LEL/ppm
Dimension:	252*205*88(mm)
