Petroleum Product Tester Mechanical Impurity Tester
Beijing Samyon Instruments Co., Ltd.- Heating Power for Water Bath：1000 W
- Temperature Control Accuracy：+,-1 Oc
- Temperature Control Accuracy for Funnel：+,-2 Oc
- Maximum Power Consumption：1200 W
- Transport Package：Carton Case
- Specification：SGS
Base Info
- Model NO.：SY-511B
- Trademark：SAMYON
- Origin：Cn
- HS Code：903180
- Production Capacity：100sets Per Month
Description
The instrument is designed and made as per national standard of People's Republic of China GB/T511 Standard Test Method for Mechanical Impurity of Petroleum Products and Additive (Weight Method). It is used to determine mechanical impurity in hydrocarbons, heavy oils, lubricating oils, and additives.
I. Main technical features

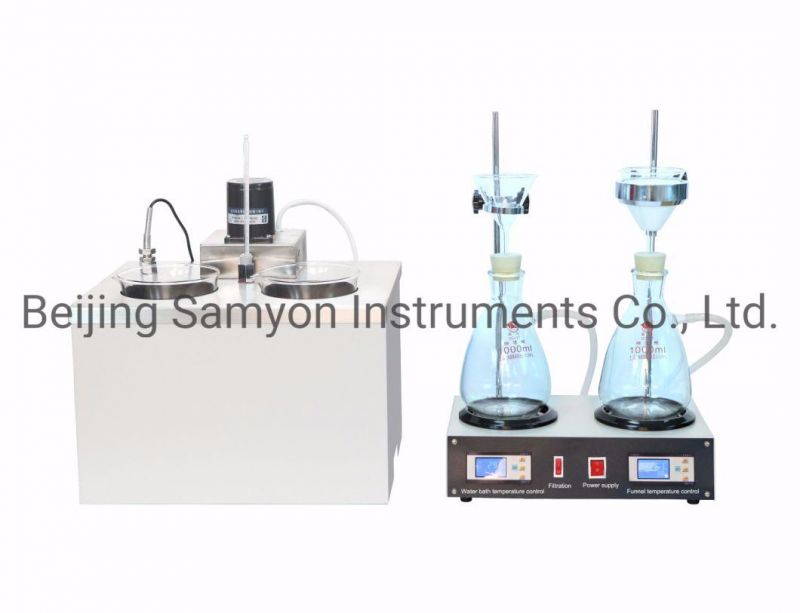

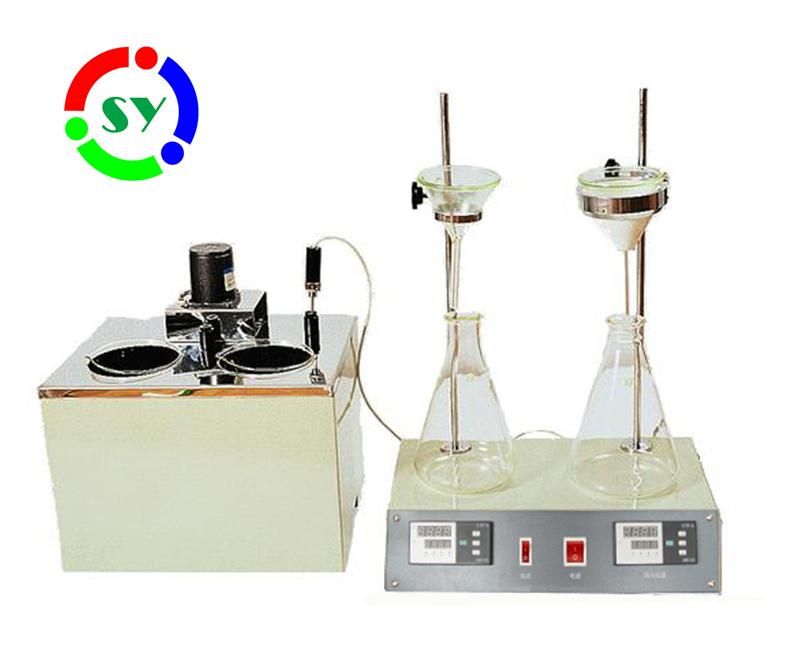

1. This instrument is composed of glass vessels, water bath, funnel, sunction pump, motor and digital temperature controller. It has features such as small size, light weitht, rapid heating rate and easy installation.
2. The temperature control funnel is small and light. It can save operation time and solvent.
3. Desktop structure. Simple design. Easy to use.
II. Main technical specifications
1. Power supply: AC 220V±10%, 50 Hz
2. Heating power for water bath: 1000 W
3. Temperature control range for water bath: Room temperature~90 ºC, adjustable
4. Bath temperature display: Digitally displayed by LED
5. Temperature control accuracy for water bath: ±1 ºC
6. Temperature control range for funnel: Room temperature~90 ºC, adjustable
7. Funnel temperature display: Digitally displayed by LED
8. Temperature control accuracy for funnel: ±2 ºC
9. Size:
(1) Control case: 390 mm× 260 mm× 590 mm
(2) Water bath: 390 mm× 290 mm× 370 mm
10. Ambient temperature: ≤35 ºC
11. Relative humidity: ≤85%
12. Maximum power consumption: 1200 W
