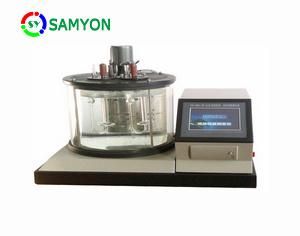

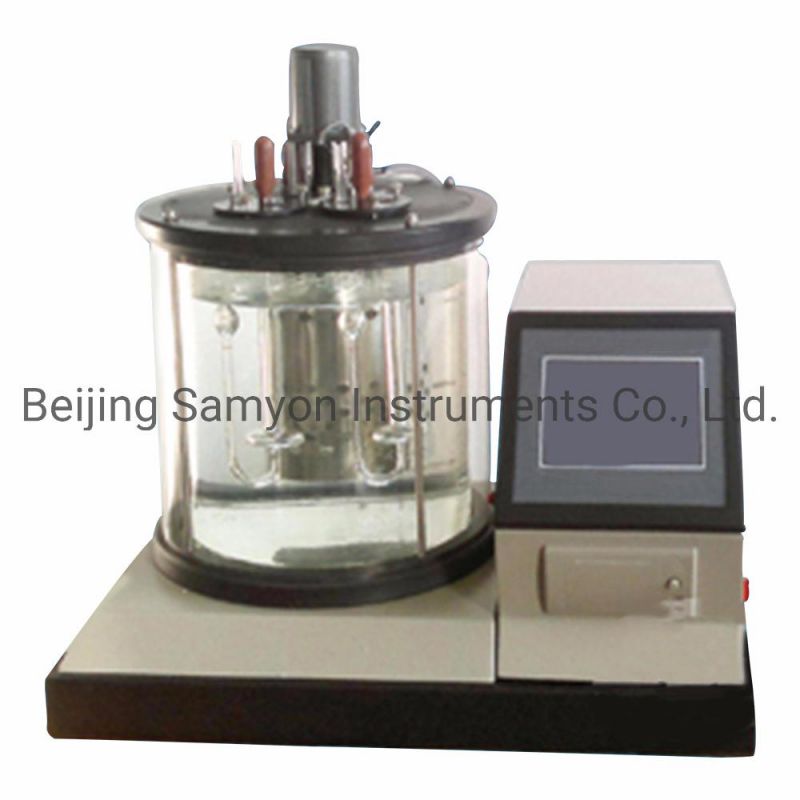

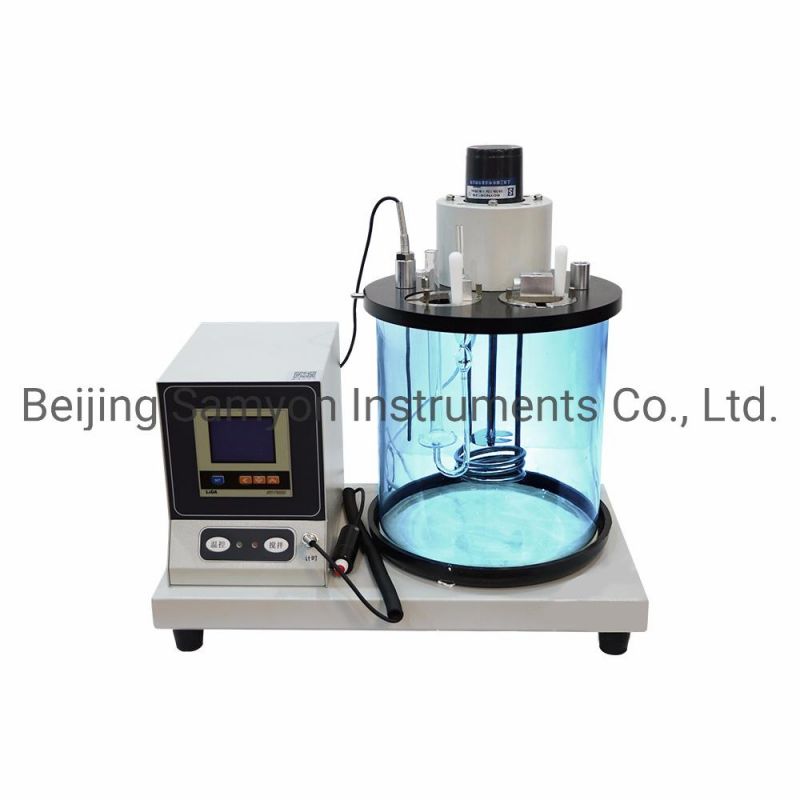

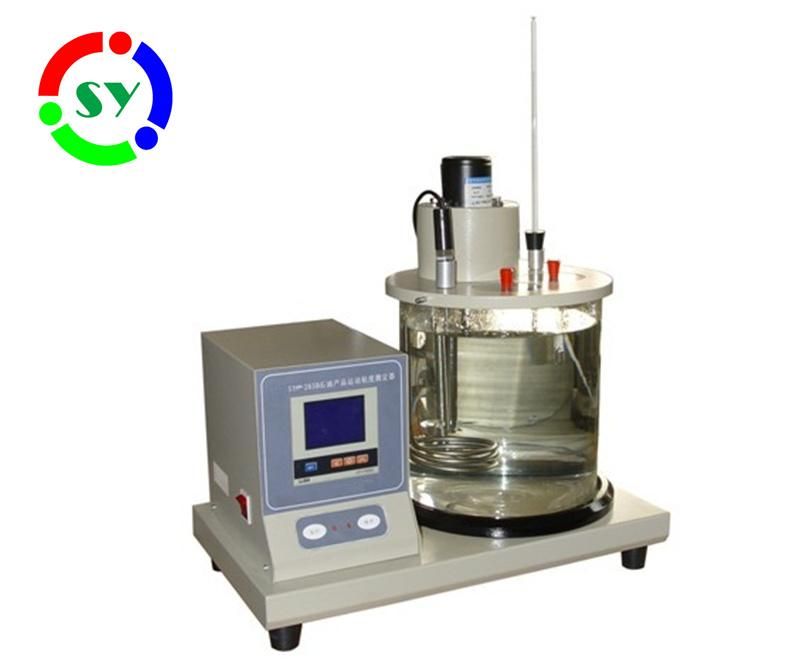

Kinematic Viscosity, Reverse-Flow Viscosity, Viscosity Index Tester

Beijing Samyon Instruments Co., Ltd.
  • Capacity of Bath：240mm*280mm
  • Temperature Range：Ambient to 100oc
  • Temperature Resolution：0.01oc
  • Temperature Control Precision：+,-0.05oc
  • Timing Precision：+,-0.1s
  • Transport Package：Carton Case

Base Info

  • Model NO.：SY-265B-1
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

Capacity of bathΦ240mm×280mmTemperature rangeAmbient to 100ºCTemperature resolution0.01ºCTemperature control precision±0.05ºCTiming precision±0.1sDisplay5.6 inch colored LCDSample amount2 samplesPower supplyAC(220±10%)V, 50Hz±1HzMaximum power consumption750WWorking environmentAmbient temp.:(15~35)ºC ,RH <85%Dimension535mm×440mm×550mmNet weight23kg
1.Capacity of bath: Φ240mm×280mm
2.Temperature range: Ambient to 100ºC
3.Temperature resolution: 0.01ºC
4.Temperature control precision: ±0.05ºC
5. Timing precision: ±0.1s
6. Display: 5.6 inch colored LCD
7. Sample amount: 2 samples
8. Power supply: AC(220±10%)V, 50Hz±1Hz
9. Maximum power consumption: 750W
10. Working environment: Ambient temp.:(15~35)ºC ,RH <85%
11. Dimension: 535mm×440mm×550mm
12. Net weight: 23kgKinematic Viscosity, Reverse-Flow Viscosity, Viscosity Index TesterKinematic Viscosity, Reverse-Flow Viscosity, Viscosity Index Tester Kinematic Viscosity, Reverse-Flow Viscosity, Viscosity Index TesterKinematic Viscosity, Reverse-Flow Viscosity, Viscosity Index Tester
