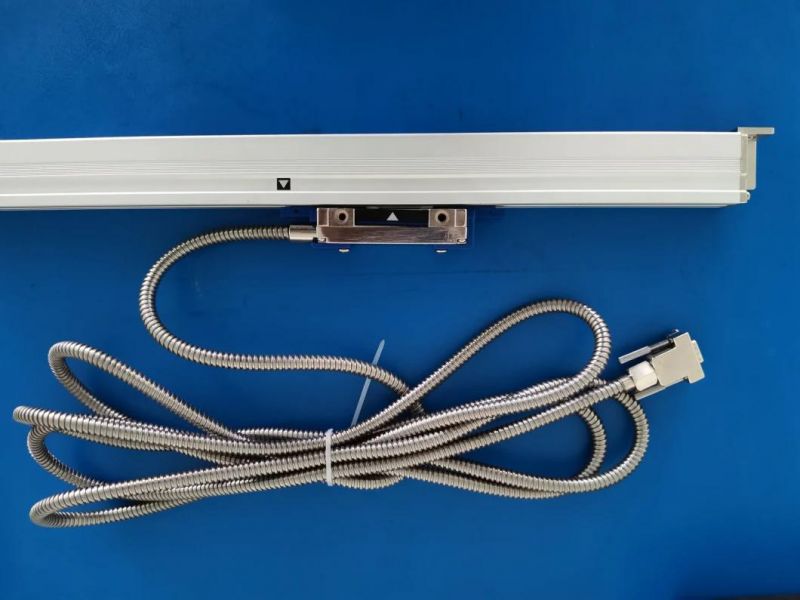

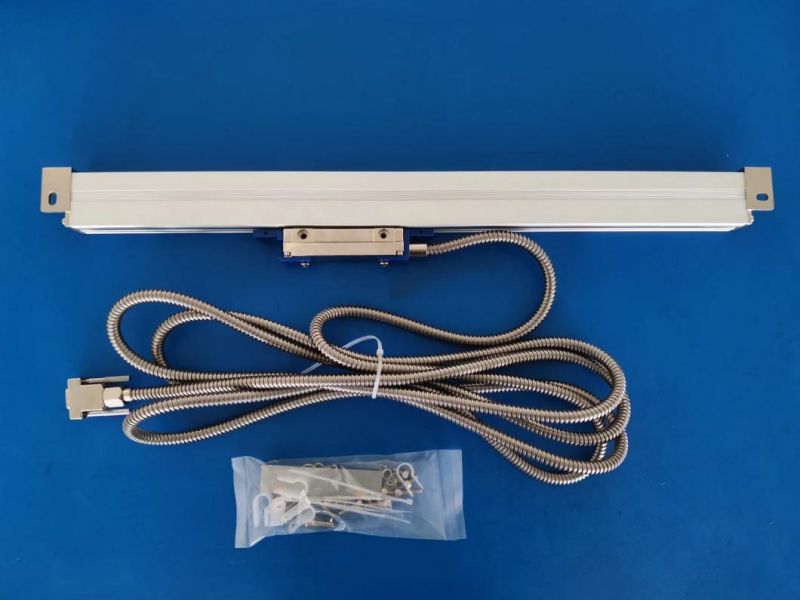

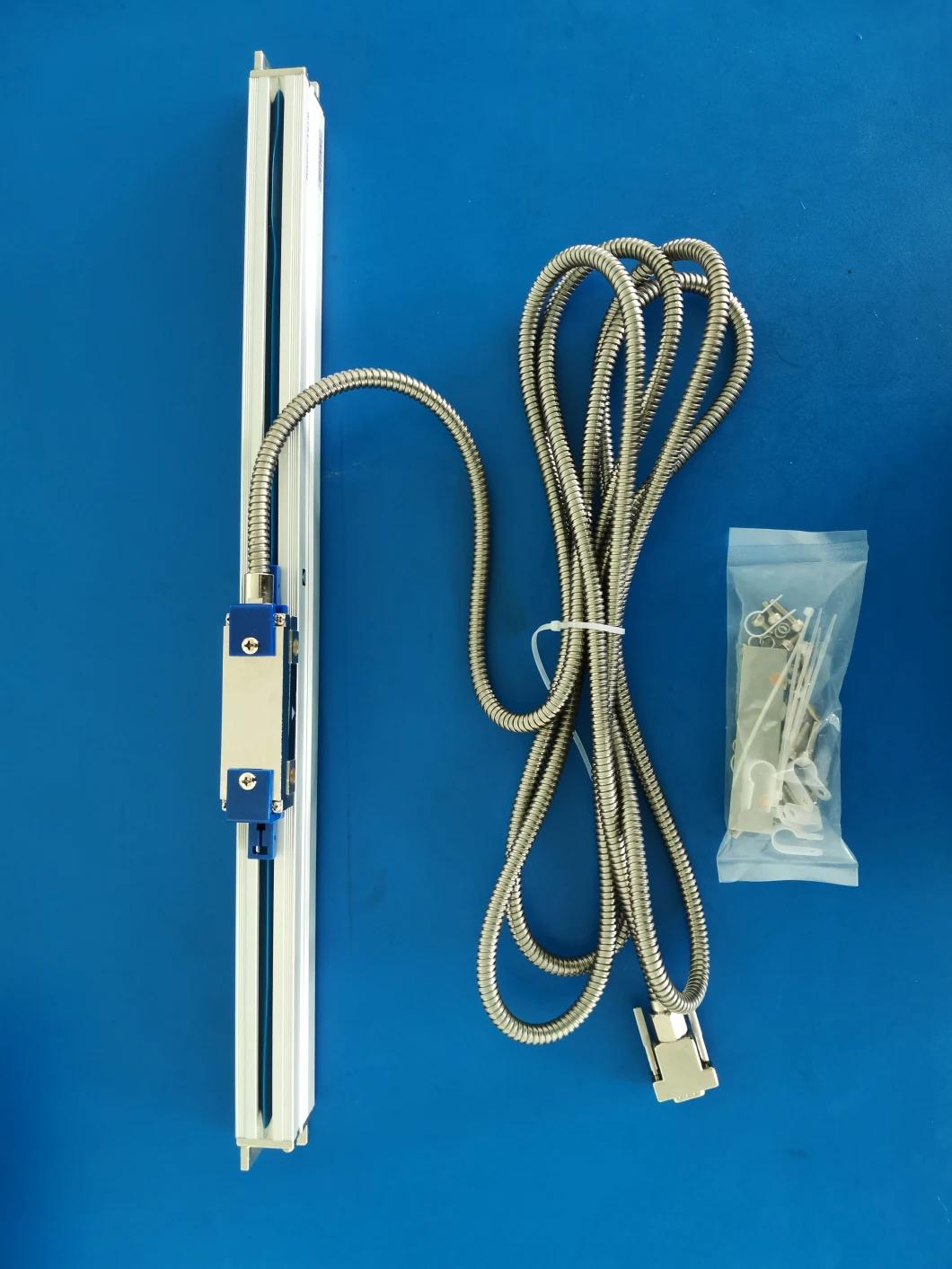

Linear Scale With Dro
Leader Precision Instrument Co., Ltd.- After-sales Service：18 Months Warranty
- Warranty：18 Months Warranty
- Name：Linear Scale with Dro
- Resolution：0.005mm (Standard); 0.001mm (Optional)
- Effective Range(Er)：2-128"(50mm-3200mm)
- Output Signal：5V, Ttl (Standard); RS422(Optional)
Base Info
- Model NO.：LE0200-50A
- Output Wave Form：Two 90° Phase-Shifted Sinusoidal Signals
- High Accuracy：(5+L,200) Micron
- Max. Response Spee：72m,Min
- Scale Grating Pitch：20μ M
- Scale Reference Point Pitch：50mm
- Operating Temperature：Cen. 0 to Cen. 40
- Transport Package：Standard Exporting Package
- Specification：SGS
- Trademark：Leader
- Origin：Guangdong
- HS Code：9031499090
- Production Capacity：500, 000PCS,Year
Description
1. High accuracy optical glass
2. Scale reference points at a 50mm pitch to determine datum point for machining
3. Using 5 sets of bearing, assures excellent repeatability, positioning, good sliding and durability
4. Special process of aluminum alloy for water/oil proof and anti-dust
5. Suitable for milling, drilling and grinding machines, lathers, XY-tables, etc
6. Enhanced vibration resistance
7. Top quality rubber lips to avoid contamination
8. Easy installation and maintenance
Paramters:
1. Resolution: 0.005mm (standard); 0.001mm (optional)
2. Effective range(ER): 2-128"(50mm-3200mm)
3. Output signal: 5V, TTL (standard); RS422(optional)
4. Output wave form: Two 90° Phase-shifted sinusoidal signals
5. High accuracy: ± (5+L/200)µ M; L = Effective range (mm)
6. Max. Response Speed: 72M/min
7. Scale grating pitch: 20μ M
8. Scale reference point pitch: 50mm
9. Operating temperature: Cen. 0 to cen. 40
10. Signal cable of the linear scale:
If the travle of the linear encoder is from 50mm to 900mm, it is 2m
If the ML of the linear encoder is 1000mm, it is 5m
| ResER | 50mm | 100mm | 150mm | 200m | 250mm |
| 0.005mm | LS0050-50B | LS0100-50B | LS0150-50B | LS0200-50B | LS0250-50B |
| 0.001mm | LS0050-10B | LS0100-10B | LS0150-10B | LS0200-10B | LS0250-10B |
| ResER | 300mm | 350mm | 400mm | 450mm | 500mm |
| 0.005mm | LS0300-50B | LS0350-50B | LS0400-50B | LS0450-50B | LS0500-50B |
| 0.001mm | LS0300-10B | LS0350-10B | LS0400-10B | LS0450-10B | LS0500-10B |
| ResER | 550mm | 600mm | 650mm | 700mm | 750mm |
| 0.005mm | LS0550-50B | LS0600-50B | LS0650-50B | LS0700-50B | LS0750-50B |
| 0.001mm | LS0550-10B | LS0600-10B | LS0650-10B | LS0700-10B | LS0750-10B |
| ResER | 800mm | 850mm | 900mm | 950mm | 1000mm |
| 0.005mm | LS0800-50B | LS0850-50B | LS0900-50B | LS0950-50B | LS1000-50B |
| 0.001mm | LS0800-10B | LS0850-10B | LS0900-10B | LS0950-10B | LS1000-10B |
